Ford Transit 2014 - Changing a Bulb

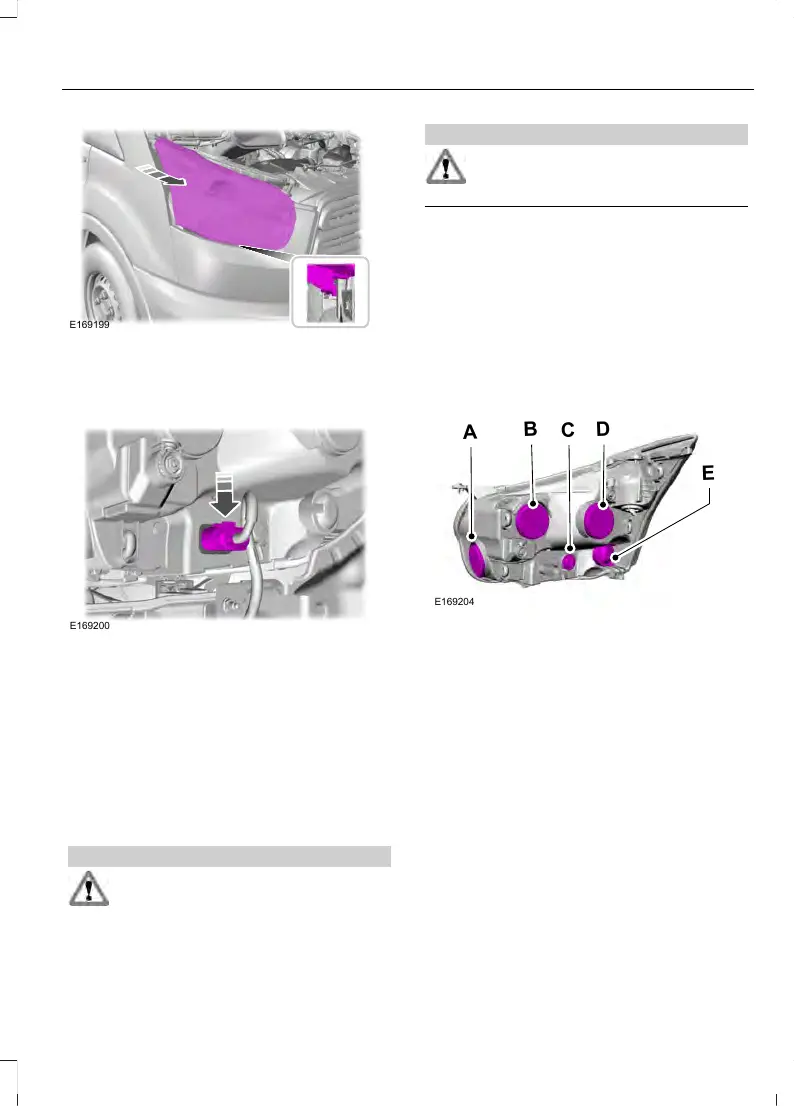

E169199
3. Pull the headlamp toward the front of
your vehicle to disengage it from its
locating points and then lift the
headlamp up.
E169200
4. Disconnect the electrical connectors.
Note: When you install the headlamp, make
sure that you correctly attach the electrical
connector.
Note: When you install the headlamp, make
sure that you correctly engage its locating
points.
CHANGING A BULB
WARNINGS
Switch all of the lamps and the
ignition off. Failure to do so could
result in serious personal injury.
WARNINGS
Bulbs become hot when in use. Let
them cool down before you remove
them.
Use the correct specification bulb. See
Bulb Specification Chart (page 154).
The following instructions describe how to
remove the bulbs. Install in the reverse
order unless otherwise stated.
Note: LED lamps are not serviceable. See
an authorized dealer.
Headlamp
E169204
A
B
C
D
E
Cornering lampA
Daytime running lamp and
headlamp high beam
B
Direction indicatorC
Headlamp low beamD
Side lampE
Note: You may have to remove a cover to
gain access to the bulb.
