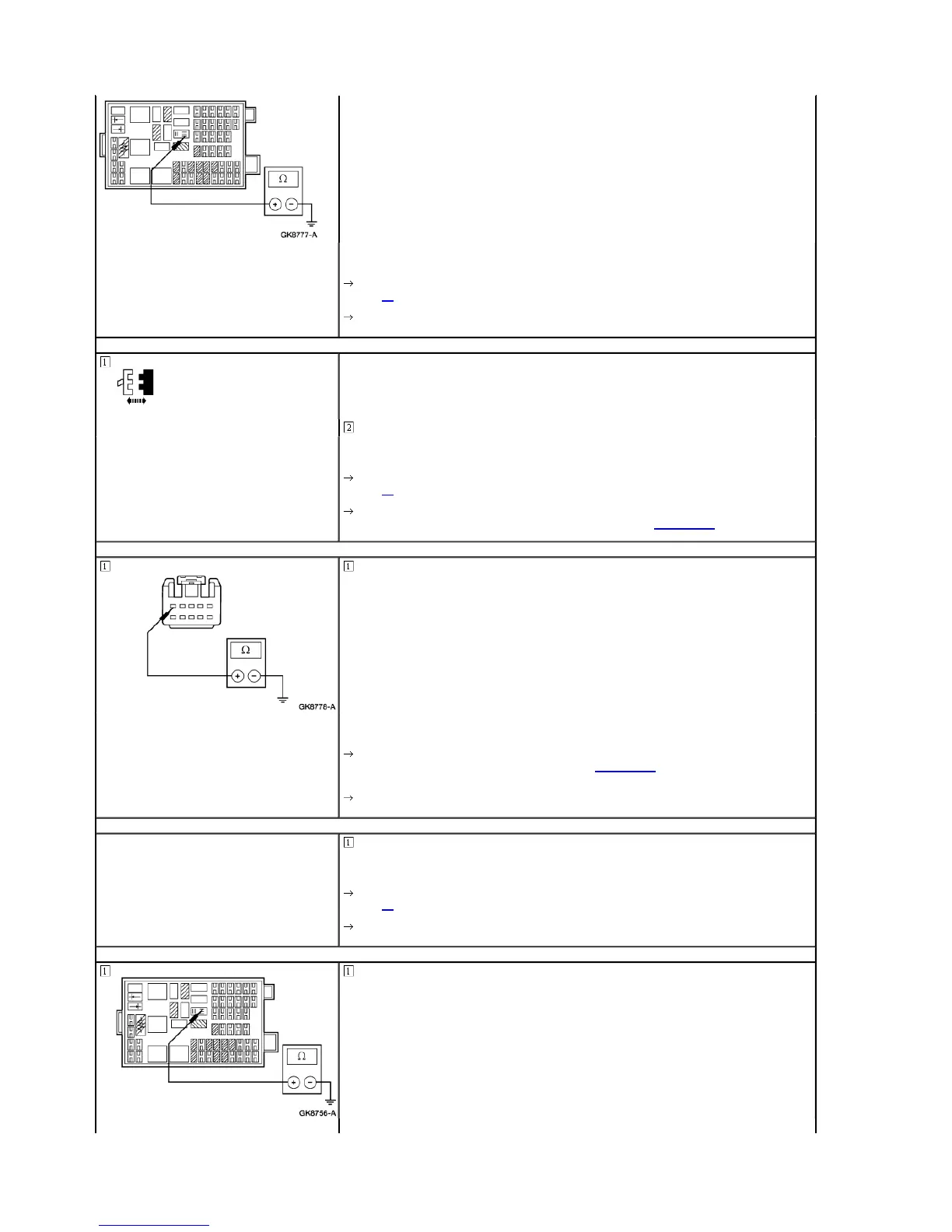

 Is the resistance greater than 10,000 ohms?
Yes
GO to D4.
No
REPAIR Circuit 1318 (DG/WH). REPEAT the FEM self-test, CLEAR the DTCs.
D4 CHECK THE MULTIFUNCTION SWITCH
Multifunction Switch C263
Check the multifunction switch for correct operation. Refer to Wiring Diagram Cell 149.
 Is the multifunction switch OK?
Yes
GO to D5.
No
INSTALL a new multifunction switch. For additional information, REFER to Section 211-05. REPEAT the FEM self-
test, CLEAR the DTCs.
D5 CHECK CIRCUIT 1301 (YE) FOR SHORT TO GROUND
Measure the resistance between multifunctuon switch C263 Pin 5, Circuit 1301 (YE), harness side and ground.
 Is the resistance greater than 10,000 ohms?
Yes
INSTALL a new FEM. For additional information, REFER to Section 419-10. REPEAT the FEM self-test, CLEAR
the DTCs.
No
REPAIR Circuit 1301 (YE). REPEAT the FEM self-test, CLEAR the DTCs.
D6 CHECK REAR WIPER RELAY FOR CORRECT OPERATION
Check the rear wiper relay for correct operation. Refer to Wiring Diagram Cell 149.
 Is the rear wiper relay OK?
Yes
GO to D7.
No
INSTALL a new rear wiper switch. For additional information, REFER to Switch — Rear Wiper.
D7 CHECK CIRCUIT 1359 (DG/VT) FOR OPEN
Measure the resistance between rear wiper relay Pin 2, Circuit 1359 (DG/VT), harness side and ground.
