Forest-Master FM9DD - Page 11

Forest Master Models: FM9DD/FM14DD/FM18DD 11
Assembly
22
3232
32
32323232
4545
45
45454545
46464646464646

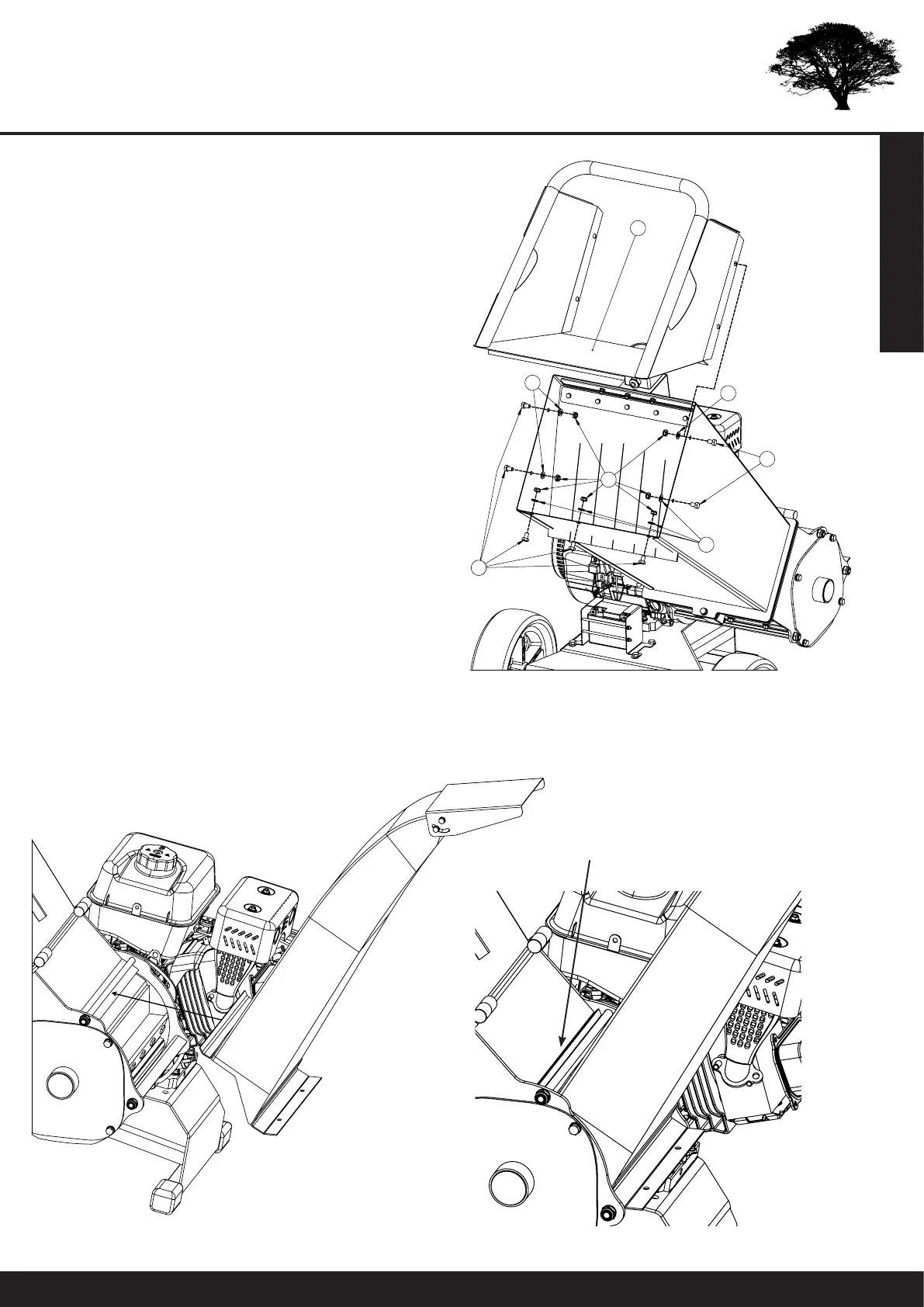

10. Attach the hopper tray (22) to the end of the feed
hopper (21). The flanges on the hopper tray fit inside
the feed hopper. Secure using 7 x M8x13 bolts (32),
7 M8 washers (45) and 7 x M8 nyloc nut (46). Fit
the bolts through the holes in the feed hopper and
hopper tray from the outside and fit the washers and
nuts on the inside.
11. Insert the top flange (without bolt holes) of the discharge chute (36) between the upper bolt on the drum
housing (9) and the top surface of the drum housing (9). Lower the discharge chute so that it is sitting on
the drum housing.
FLANGE UNDER BOLT
