Forest Master Models: FM9DD/FM14DD/FM18DD10
Assembly

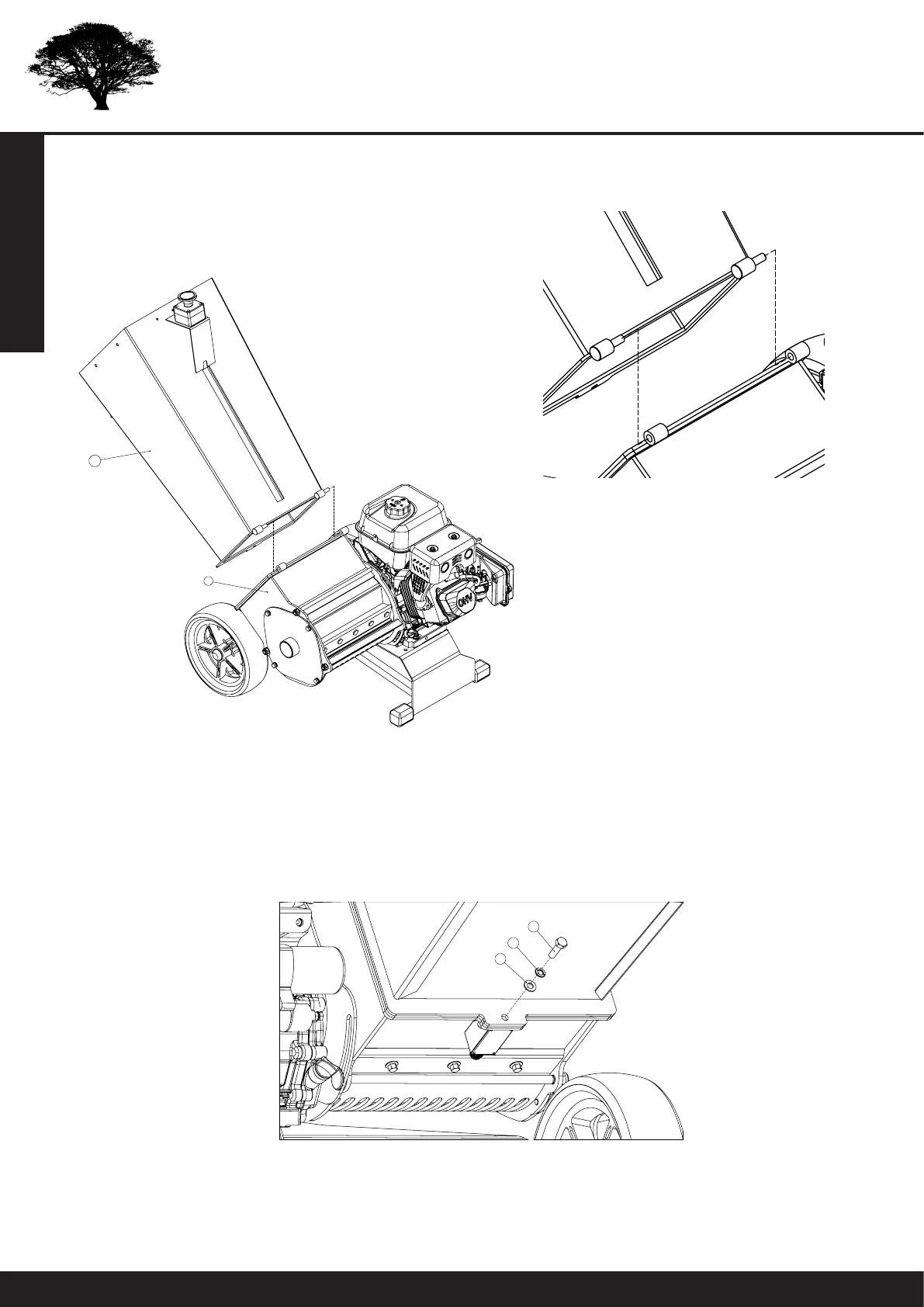

8. Insert the hinge pins on the feed hopper (21) into the ferules on the drum housing (9). The pins are
inserted into the ferules from the outside of the housing.
21
9
21
9
51
33
45
9. Fasten the bottom of the feed hopper (21) to the drum housing (9) using the M8 bolt (51) the M8 spring
washer (33) and the M8 washer (45). There is a thread in the flange of the drum housing to fasten the
bolt into. The order of assembly is: [Bolt] – [Spring Washer] – [Washer] – [Feed Hopper] – [Drum
Housing]. This bolt must be tight for the engine to start as it deactivates the engine cut out. If it is loose
the engine will not start
