Forest Master Models: FM9DD/FM14DD/FM18DD 9
Assembly
7. Note that this step only applies to the FM14DD & FM18DD. The FM9DD does not have an electric start.

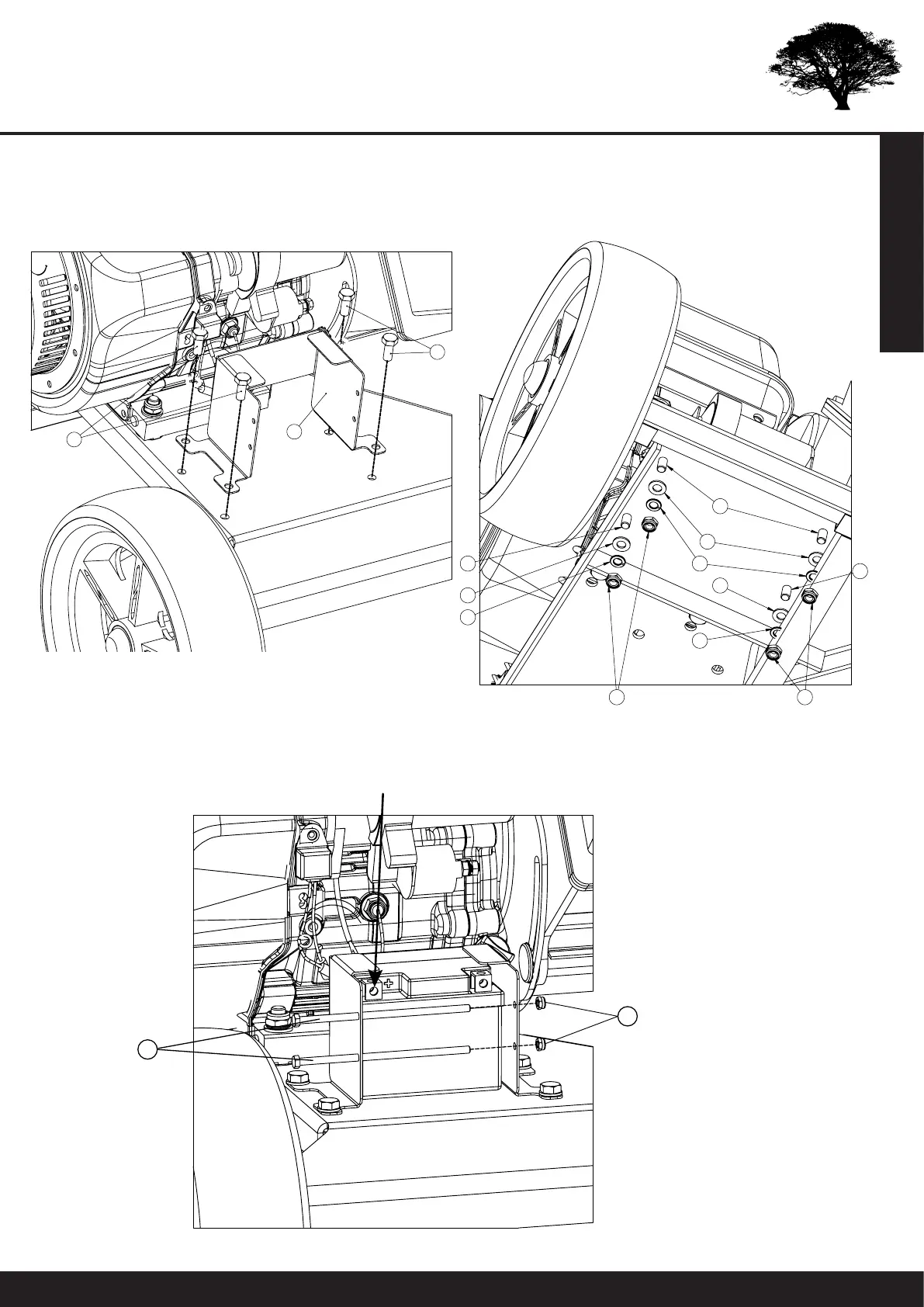

Attach the battery box (56) to the base (1) using the 4 M8x20 bolts (55), M8 washers (45), M8 spring washers
(33) and M8 nuts (46).
Place the battery in the box and secure using the two M5 x 125 bolts (58) and nuts (59). Connect the battery
wires to the terminals on the battery (red to positive(+)).
56
555
55
58
59
RED WIRE TO +VE
