Forest Master Models: FM9DD/FM14DD/FM18DD 7

Assembly

Part Name

Part

No.

Qty.

Engine with Drum 8 1

Base 1 1

Feed Hopper 21 1

Feed Hopper Tray 22 1

Discharge Chute 36 1

Axle 3 1

Wheels 2 2

Split Pin 43 2

20mm Washer 4 4

Dome Cap 44 2

M10x45 Bolts 48 4

Part Name

Part

No.

Qty.

M10 Washers 47 8

M10 Spring Washer 49 4

M10 Nut 50 4

M8x20 Bolt 55 4

Battery Box 56 1

Battery 57 1

M5x125 Bolt 58 2

M5 Nut 59 2

M8 Flat Washer 45 4

M8 Spring Washer 33 4

M8 Nut 46 4

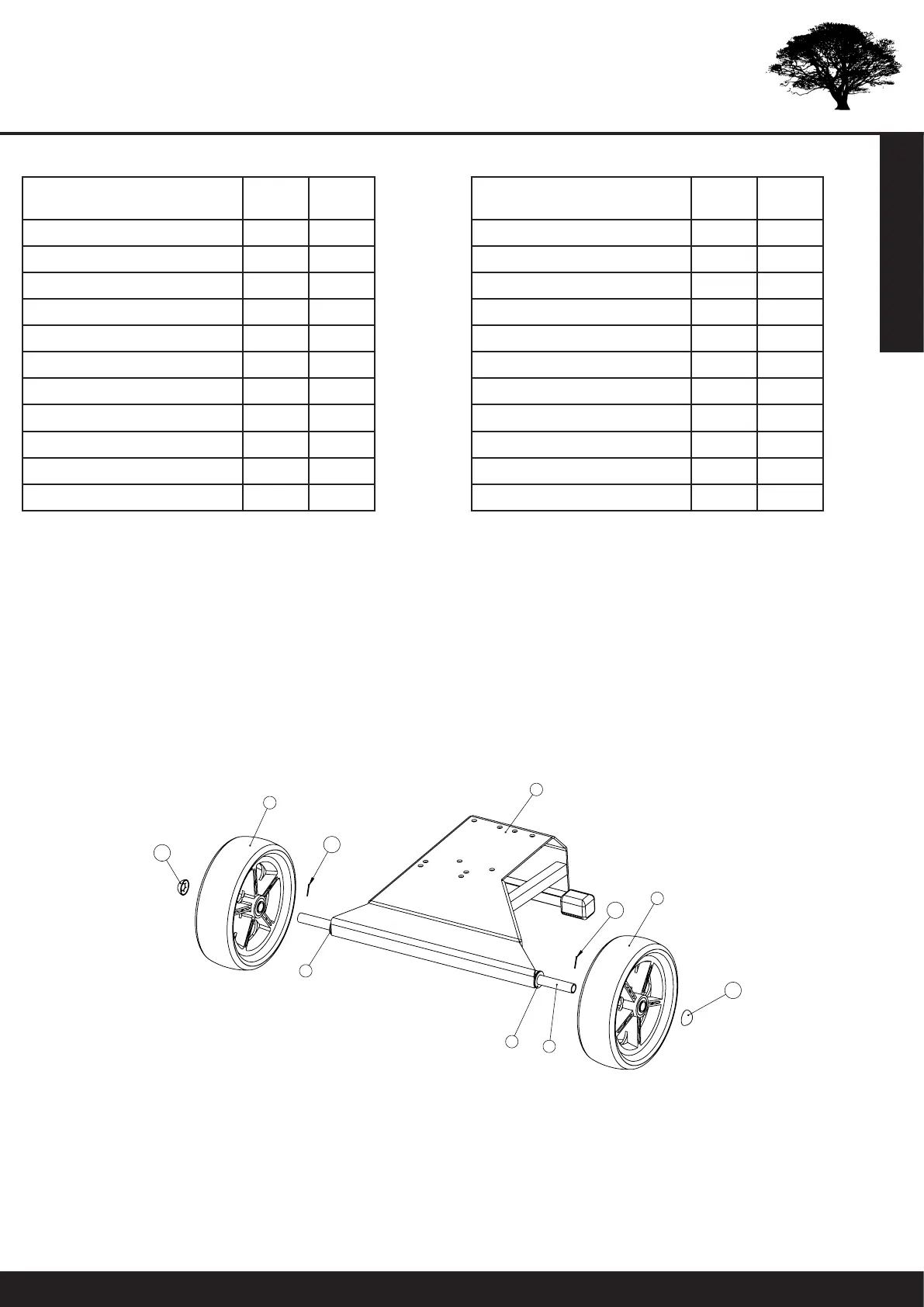

Assembly Parts

Assembly

Note that the majority of bolts specified are loosely fitted in their correct location for shipping.

1. Lay all the parts out flat in a suitable assembly area and check to make sure all parts are there.

2. Slide the axle (3) into the square tubing of the base (1) and place a 16mm flat washer (4) on each end of

the axle. Note you should only need two washers but four are provided in case the wheels are a bit loose.

3. Next, place the wheels (2) on each end of the axle (3) and secure with a split pin (43) through the small

holes on the outer end of the axle (3). Bend the ends of the slit pins back against the axle to secure.

4. Finally, place each dome cap (44) on the ends of the axle (3) and secure the cap by tapping it with a mallet

or hammer.
