Technical data:
Track
®
-P Track
®
-P-ci
Height: 320 mm 320 mm
Width: 350 mm 350 mm
Depth: 430 mm 430 mm
Weight: 18.9 kg 21.3 kg
Electricity: ~220 - 240 (100,110 - 120) volts, 50 - 60 hertz
max. 380 watt 440 watt
Fuse:
230/240 V 2 x T-2 A 2 x T-2.5 A
100/115 V 2 x T-4 A 2 x T-5 A
Heater: medium-wave infrared heater, 280 watt
Temperature sensor: touchless infrared sensor, measuring range up to 240
°C
Foil dimensions: Ø125 mm, thickness 0 - 5.5 mm
Form pot inner dimensions: Ø 101 mm, height 44 mm
Track®-P, operating pressure 3 - 6 bar,
required mains system pressure > 6 bar,
pressure regulator, factory setting 4.5 bar,
noise level < 70 dB(A) at 30 cm distance
Track®-P-ci with integrated compressor
and reserve compressed-air, operating pressure up
to 6 bar, noise level < 70 dB(A) at 30 cm distance
Safety:
• Before starting please carefully read this operating manual.
• The operator has to ensure that the user has read and understood the operating manual.
• The operational safety of the unit is only warranted when it is used in accordance with the respective legal accident preven-
tion and the safety guidelines.
• Do not keep highly inflammable materials in direct area of the machine.
• Only operate the unit under supervision.
• The voltage of the power source has to be identical to the voltage indicated on the type plate.
• ATTENTION HOT, do not touch the heating element.
• Do not reach into the unit.
• Unplug the appliance when not in use.
• Before cleaning, maintenance and repairing always unplug the unit and allow to cool down.
• The unit should only be cleaned with a damp cloth. Do not use any solvents or other cleaning agents.
• Maintenance see page 29.
• Repairs of the units must only be carried out by trained personnel using original spare parts. Otherwise the
manufacturers liability and warranty expire.
Usage as directed:
• The units are intended for use in dental thermoforming.
• They must only be operated by instructed personnel and only using thermoforming material in Ø 125 mm and up to 5.5 mm
thickness to adapt on suitable models. Otherwise product liability expires.
Installation instructions:
• Place the unit on a level surface. Pay attention to the fact that the weight of the unit with accessories is approx. 30 kg.
• Install the unit in a dry and low-dust environment.
• Avoid draught (air-conditioning, ventilator, open window) at the installation place since this might cause errors during
temperature measurement by the sensor.
• The Track
®
-P is connected to compressed air equipment on site (mains pressure > 6 bar, inner diameter
of the feed pipe at least 4 mm) and to electricity.
• The Track
®
-P-ci will be connected to electricity independently of compressed air equipment.
• A reliable operation of all functions is only warranted at a unit temperature of 15 °C.

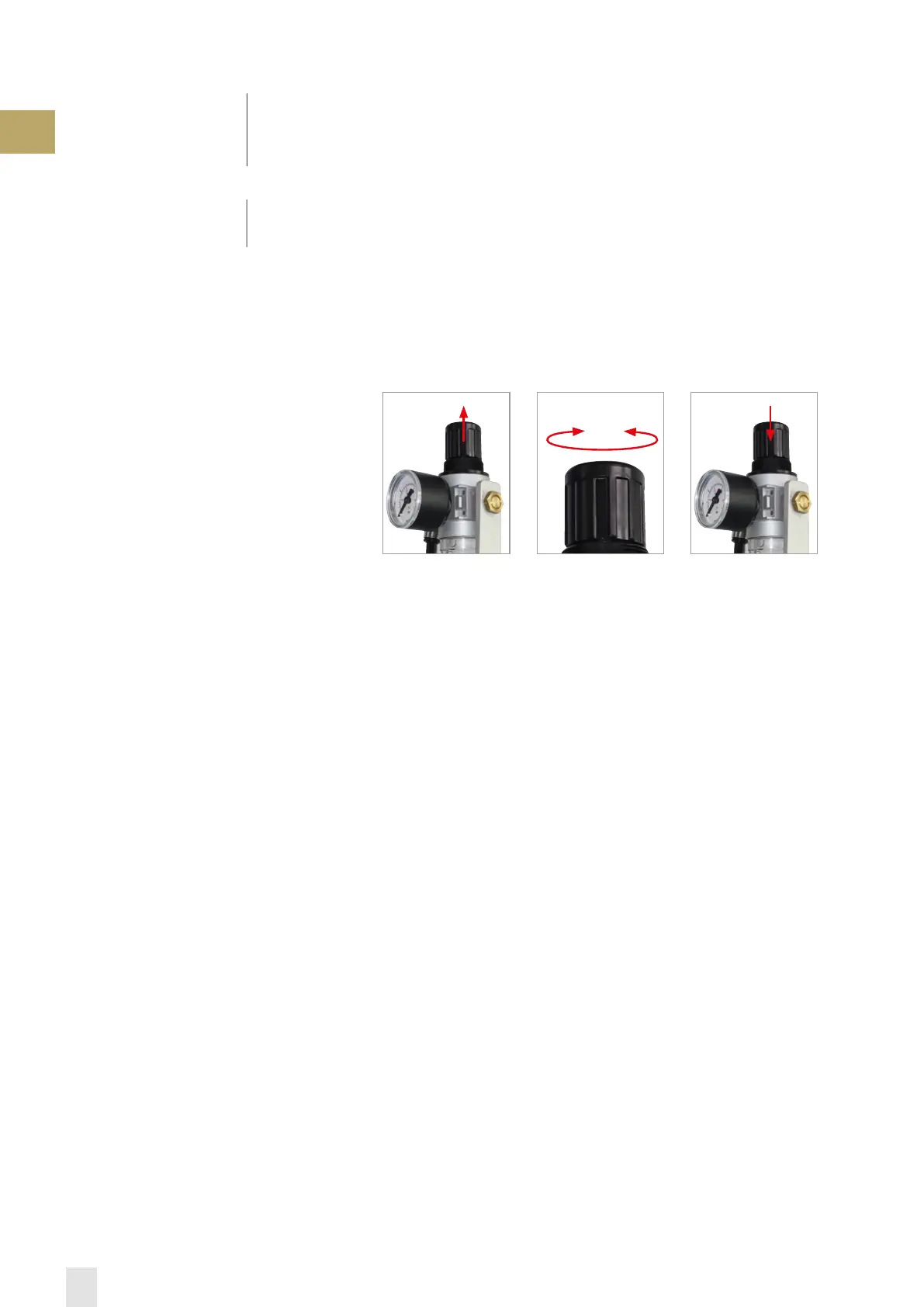

Pressure regulator, only Track
®
-P:
Increase or decrease pressure:
• Pull up the pressure regulator head
• Select operating pressure (3 - 6 bar)
• Press the pressure regulator head back
