FORESTADENT TRACK P - Installation

22
GB
Start-up:
(Pay attention to the installation instructions).
Track
®
-P-ci:
Connect to power supply.
Track
®
-P:
Install pressure regulator.

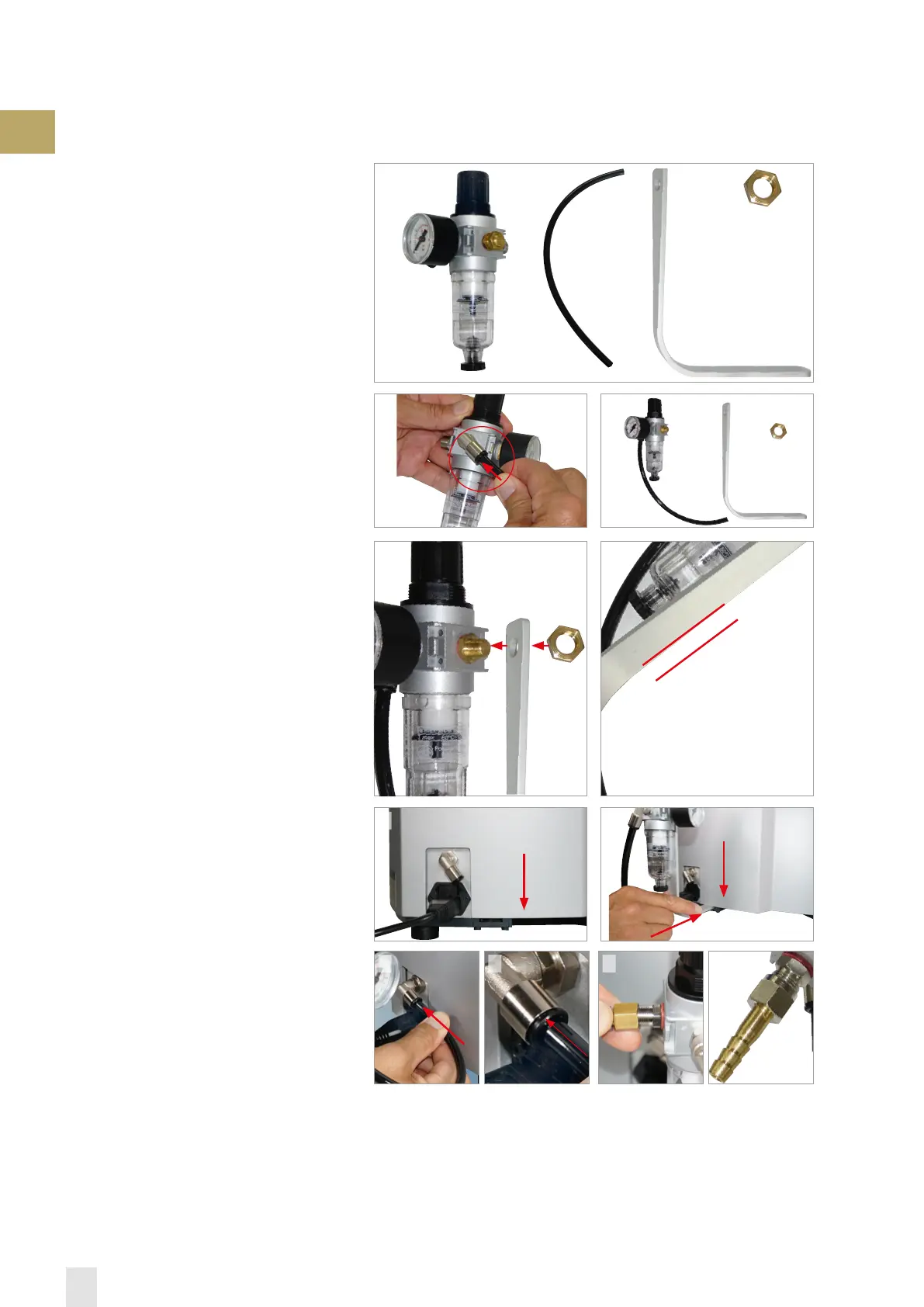

Components pressure regulator:
a) Pressure regulator with water separator
b) Black pressure hose
c) Support bracket
d) Brass nut
Installation:
Push the black pressure hose into the com-
pressed air connector at the
pressure regulator (1).
Fasten the support bracket (c) to the pres-
sure regulator with the brass nut (d) (2b),
paying attention to a parallel alignment (3)
of pressure regulator and support bracket.
Push the support bracket into the
provided opening until it stops (4 + 5).
Push the black pressure hose into the com-
pressed air connector on the unit (6).
Screw on the hose connection (7) and con-
nect to compressed air supply (7). (compres-
sed air settings, see technical data).
6
c d
6 7 7
54
3
1
2a
2b
a b c d
