Installing the FortiGate unit Package Contents
FortiGate-50A/50B, FortiWiFi-50B and FortiGate-100 FortiOS 3.0 MR4 Install Guide
01-30004-0265-20070831 15
Installing the FortiGate unit
This section provides information on installing and setting up the FortiGate unit on
your network. This chapter includes the following sections:
• Package Contents
• Mounting
• Powering on the FortiGate unit
• Connecting to the FortiGate unit
Package Contents
Review the contents of your FortiGate package to ensure all components were
included.
FortiGate-50A
The FortiGate-50A package contains the following items:
• FortiGate-50A Unified Threat Management System
• one orange crossover Ethernet cable (Fortinet part number CC300248)
• one gray straight-through Ethernet cable (Fortinet part number CC300249)
• one RJ-45 to DB-9 serial cable (Fortinet part number CC300247)
• one AC adapter and power cable
• FortiGate-50A QuickStart Guide
• Fortinet Tools and Documentation CD

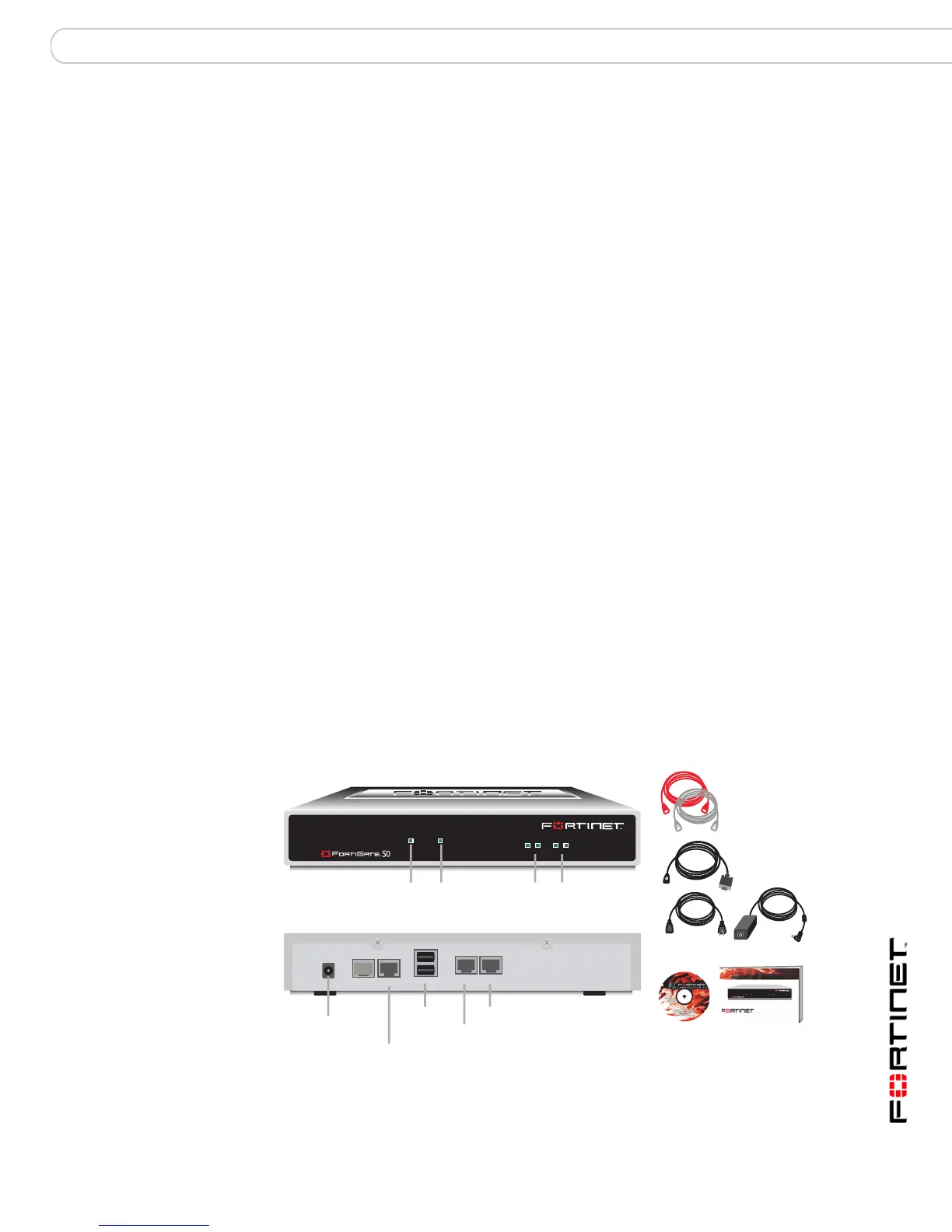

Figure 1: FortiGate-50A package contents
PWR STATUS
INTERNAL EXTERNAL
LINK 100 LINK 100
PWR STAT US
A
Power
LED
Status
LED
External
Interface
Internal
Interface
Ethernet Cables:
Orange - Crossover
Grey - Straight-through
Power Cable Power Supply
RJ-45 to
DB-9 Serial Cable
Internal
External
DC+12V
USB
Back
Power
USB
Internal
Front
External
Modem Console
RJ-45 Serial
Connection
Documentation
FortiGate-50A
Copyright 2006 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks.
QuickStart Guide
InternalExternal
LINK 100 LINK 100
PWR STATUS
