Installing the FortiGate unit Package Contents
FortiGate-50A/50B, FortiWiFi-50B and FortiGate-100 FortiOS 3.0 MR4 Install Guide
01-30004-0265-20070831 17
FortiWiFi-50B
The FortiWiFi-50B package contains the following items:
• FortiWiFi-50B Unified Threat Management System
• one gray straight-through Ethernet cable (Fortinet part number CC300249)
• one RJ-45 to DB-9 serial cable (Fortinet part number CC300247)
• one AC adapter and power cable
• two mounting brackets
• FortiWiFi-50B QuickStart Guide
• Fortinet Tools and Documentation CD

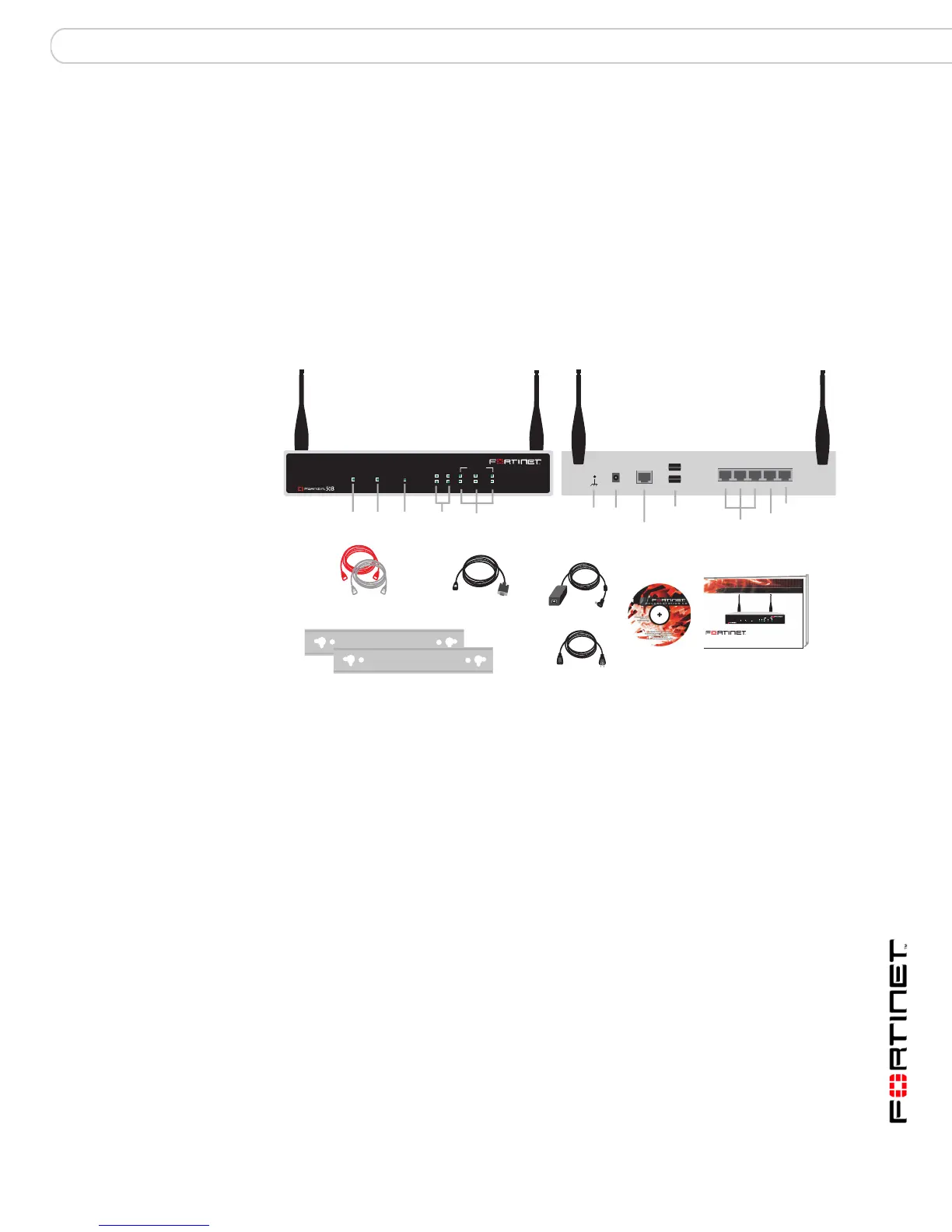

Figure 3: FortiWiFi-50B package contents
Table 3: Technical Specifications
FortiGate-100
The FortiGate-100 package contains the following items:
• FortiGate-100 Unified Threat Management System
• one orange crossover Ethernet cable (Fortinet part number CC300248)
• one gray straight-through Ethernet cable (Fortinet part number CC300249)
• one null-modem cable
• one AC adapter and power cable
• FortiGate-100 QuickStart Guide
• Fortinet Tools and Documentation CD
Dimensions 8.5 x 1.4 x 5.8in. (21.6 x 14.8 x 3.6 cm)
Weight 1.6 lb. (0.73 kg)
Power Requirements DC input voltage: 12V
DC input current: 3A
Environmental
Specifications
Operating temperature: 32 to 104 F (0 to 40 C)
Storage temperature: -13 to 158 F (-25 to 70 C)
Humidity: 5 to 95% non-condensing
WAN1
WAN2
POWER STATUS
INTERNAL
321
LINK / ACT
10/100
WLAN
(PoE)
123
USB
CONSOLE
WAN2 WAN1
DC+12V
Power
Connection
RJ-45 Serial
Connection
USBGround
WAN2
WAN1
Internal Interface,
switch connectors
1,2,3
Back
Power
LED
Status
LED
WAN 1,2
Interface
Internal
Interface
WLAN
LED
Front
Ethernet Cables:
Orange - Crossover
Grey - Straight-through
Power Cable
Power Supply
RJ-45 to
DB-9 Serial Cable
2 Mounting Brackets
Documentation
FortiWiFi-50B
