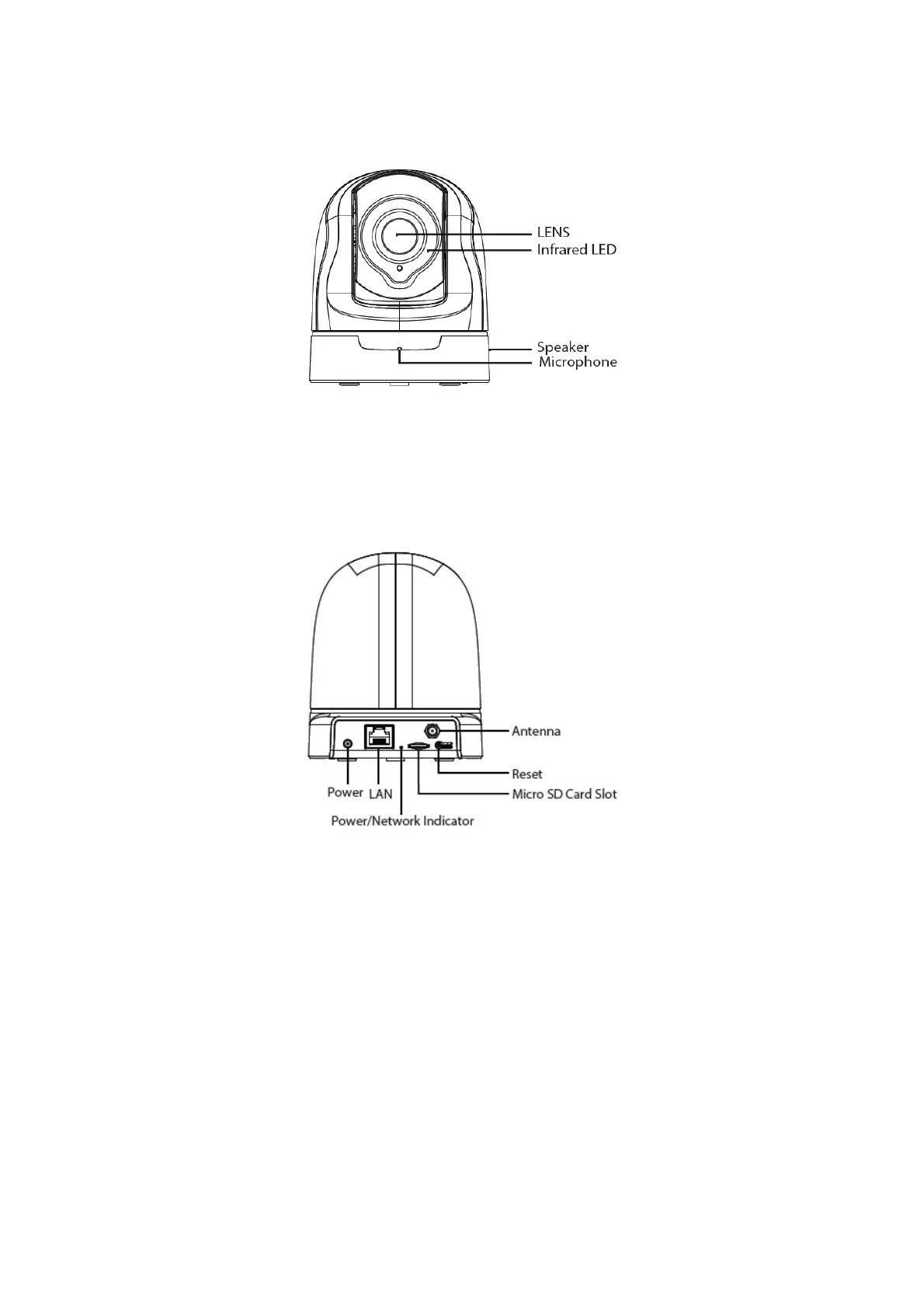

1.4 Physical Description
1.Speaker: Built-in speaker
2.LENS: Fixed focus lens
3.Infrared LED: Infrared LEDs for night vision
4.Microphone: Built-in microphone
LAN: 10/100 Mbps RJ-45 port for wired connection
Power: DC 5V/2A Power supply
SD card Slot: Supports up to 32GB SD card for storing the video
Antenna: Used to connect external wireless antenna
Reset Button: Push and hold for more than 5 seconds to set the camera to factory default.
Bottom View
There are some labels located of the camera; this is an important feature of original Foscam cameras. If
your camera does not have labels, it may be a clone. Cloned Foscam cameras can not use original
firmware and are not eligible for warranty or technical services.
