Foscam SD2 User Manual

109

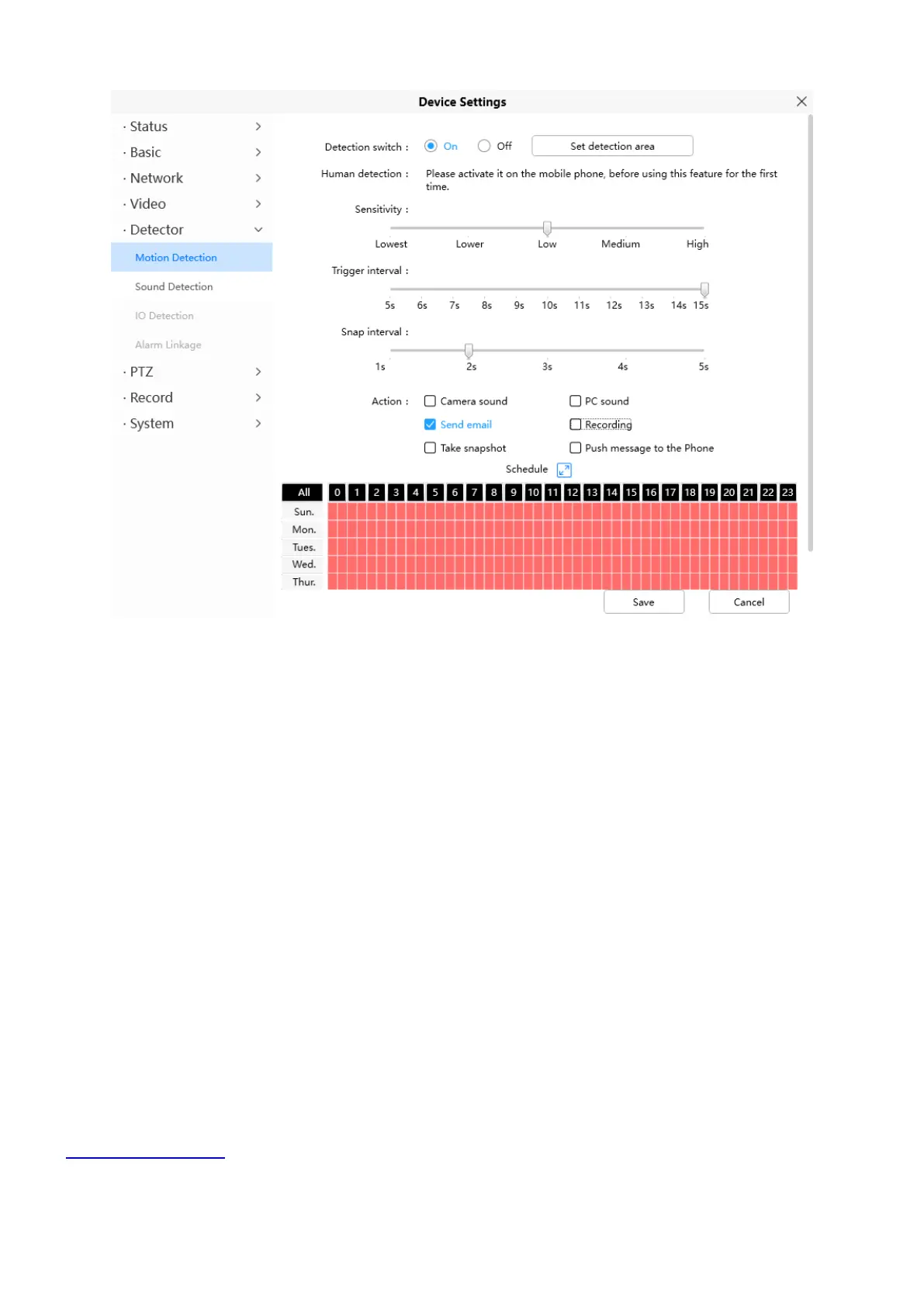

Do not forget to click on Save after you finish settings.
If there is motion trigger, camera will alarm and you can receive alarm emails.
Note:
(1) Please DO NOT forget to set the alarm schedule, the alarm schedule is red.
(2) Please make sure your camera time is correct.
(3) Please DO NOT forget to set the alarm area, the detected area is covered by the red grids. Or for some
models you can setup 3 detection zones in total.
5.1.5 Unable to connect camera remotely using Foscam app
Foscam P2P cameras allow users to connect camera remotely using Foscam app without extract setup like
port forwarding. When it unable to connect remotely, below tips can help app establish the connection:
(1) Update app and camera‟s firmware to latest version,
(2) Power off the camera then power back on,
(3) Delete camera from app then re-add it back, also lower camera‟s resolution.
5.1.6 Camera is added by others
When use myfoscam.com cloud or Foscam app, one camera can only be added to one account at the same
time. To solve error “This camera has already been added by another account” when add camera to Foscam
app or cloud, please send a clear photo of camera‟s model sticker to Foscam support email
support@foscam.com to unbind it.

Foscam SD2 Specifications

General

Type	IP security camera
Antenna type	External
Certification	FCC, CE, RoHS
Day/night mode	Yes
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Audio system	2-way
Bluetooth	-
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi data rate (max)	450 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	IP, TCP, UDP, HTTP, HTTPS, DHCP, SMTP, FTP, RTSP
Minimum illumination	0 lx
Optical zoom	4 x
Number of lenses	1
Focal length range	2.8 - 12 mm
Maximum aperture number	3
Minimum aperture number	1.7
Form factor	Dome
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Sensor type	CMOS
Optical sensor size	1/2.9 \
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	240p, 480p, 720p, 1080p
Video formats supported	H.264
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Supported graphics resolutions	320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
LED type	IR
Night vision distance	50 m
Number of illumination LEDs	6
Security algorithms	WPA, WPA2
Alert notification type	E-mail
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Mobile operating systems supported	Android, iOS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	20 - 85 %
Power consumption	200 mA
Power consumption (max)	20 W
Harmonized System (HS) code	85258900

Weight and Dimensions

Width	111 mm
Length	180 mm
Weight	1000 g
