Foscam SD2 User Manual

15

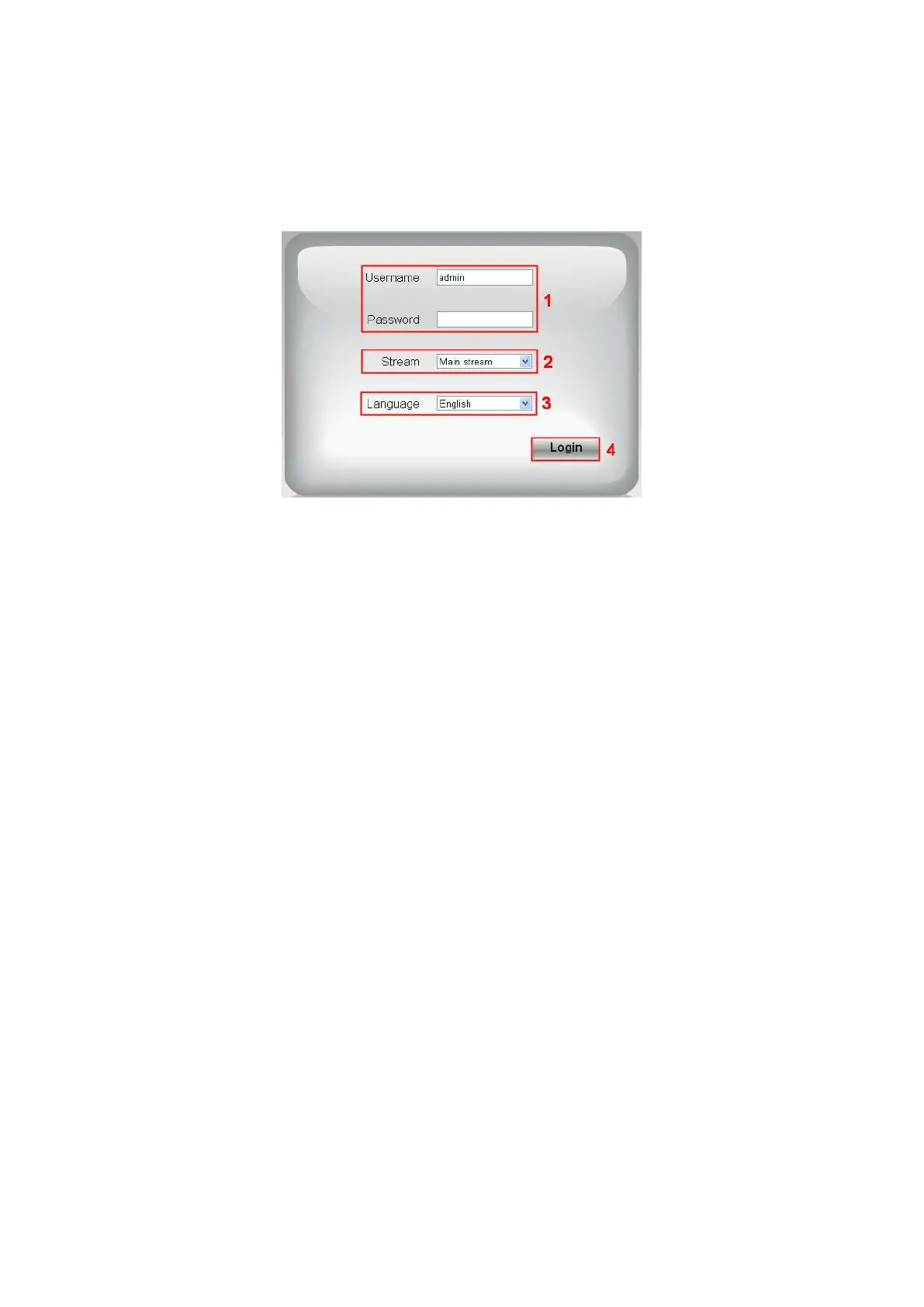

3.6.1 Login Window
Section1 Enter the Username and password
The default administrator username is admin with no password, please change the password at first
using and prevent unauthorized users login the camera.
Section2 Stream
The camera supports two stream modes: Main stream and sub stream. If you want to access the camera
form LAN, here you can select Main stream. If you want to access the camera from Internet, here we
recommend sub stream.
NOTE: When the network bandwidth is bad you'd better select Sub Stream and the video will be more
fluent.
Section3 Select the language
You can select the language you need by clicking on the language dropdown list.
Section4 login the camera
Click Login button.
NOTE: When setting up your camera for the first time, it will request that you modify the default
username / password if both are still set to default. Input the new username and password, click Modify
to complete the modification. You will now use the new username and password to login the camera in
the future.

Foscam SD2 Specifications

General

Type	IP security camera
Antenna type	External
Certification	FCC, CE, RoHS
Day/night mode	Yes
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Audio system	2-way
Bluetooth	-
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi data rate (max)	450 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	IP, TCP, UDP, HTTP, HTTPS, DHCP, SMTP, FTP, RTSP
Minimum illumination	0 lx
Optical zoom	4 x
Number of lenses	1
Focal length range	2.8 - 12 mm
Maximum aperture number	3
Minimum aperture number	1.7
Form factor	Dome
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Sensor type	CMOS
Optical sensor size	1/2.9 \
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	240p, 480p, 720p, 1080p
Video formats supported	H.264
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Supported graphics resolutions	320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
LED type	IR
Night vision distance	50 m
Number of illumination LEDs	6
Security algorithms	WPA, WPA2
Alert notification type	E-mail
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Mobile operating systems supported	Android, iOS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	20 - 85 %
Power consumption	200 mA
Power consumption (max)	20 W
Harmonized System (HS) code	85258900

Weight and Dimensions

Width	111 mm
Length	180 mm
Weight	1000 g
