Foscam SD2 User Manual

45

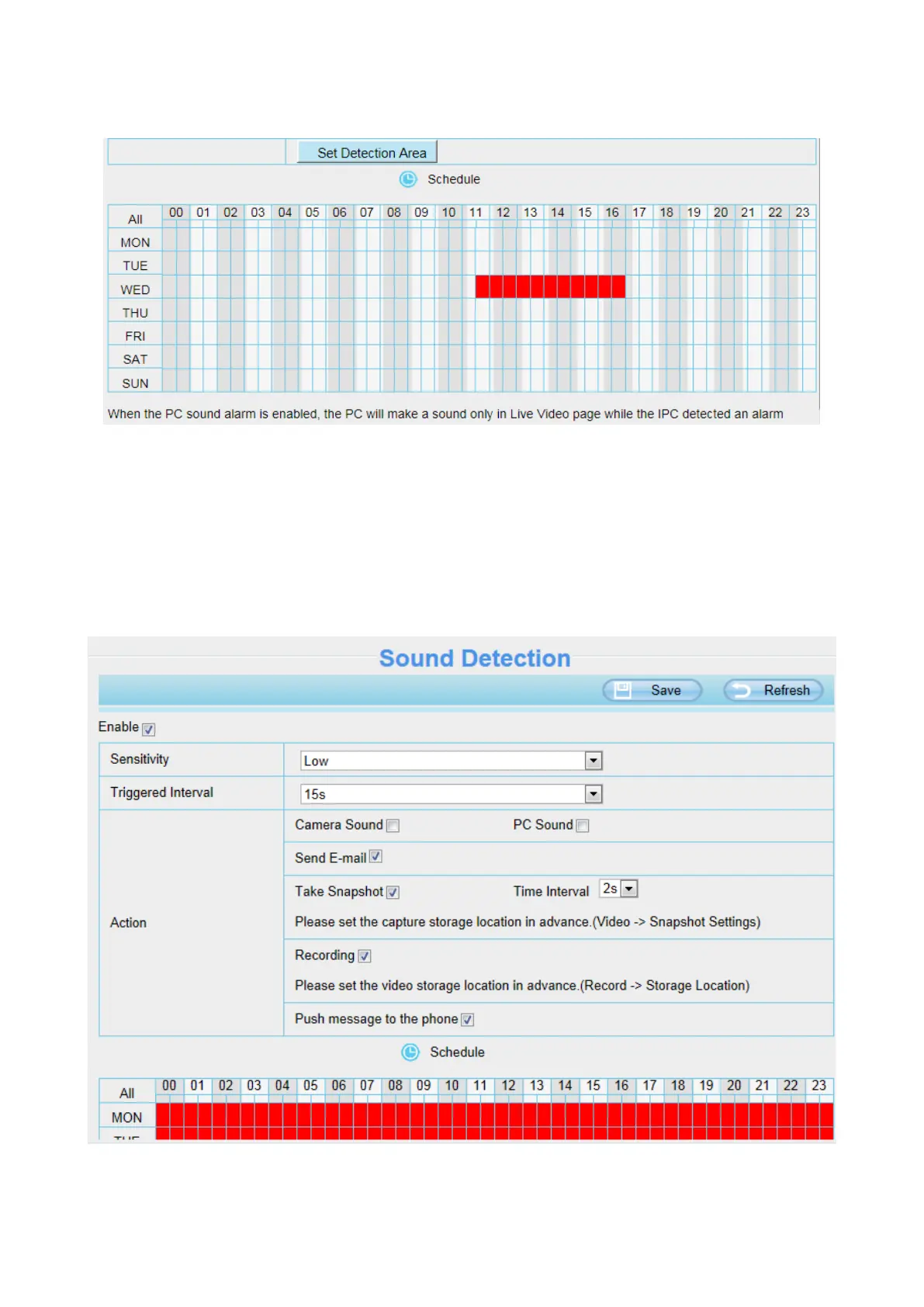

③ Press the left mouse and drag it on the time boxes, you can select the serial area,
7 Click Save button to take effect. When the motion is detected during the detection time in the detection
area, the camera will alarm and adopt the corresponding alarm indicators.
NOTE: You must set the detection area and detection schedule, or else there is no alarm anywhere and
anytime.
3.7.6.2Sound Detection
When the ambient sound over a certain decibel ,the sound alarm will be triggered.
If the Sensitivity is set to “High”, the camera will detect the sound whose more than 55db.
If the Sensitivity is set to “Medium”, the camera will detect the sound whose more than 65db.
If the Sensitivity is set to “Low”, the camera will detect the sound whose more than 75db.

Foscam SD2 Specifications

General

Type	IP security camera
Antenna type	External
Certification	FCC, CE, RoHS
Day/night mode	Yes
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Audio system	2-way
Bluetooth	-
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi data rate (max)	450 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	IP, TCP, UDP, HTTP, HTTPS, DHCP, SMTP, FTP, RTSP
Minimum illumination	0 lx
Optical zoom	4 x
Number of lenses	1
Focal length range	2.8 - 12 mm
Maximum aperture number	3
Minimum aperture number	1.7
Form factor	Dome
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Sensor type	CMOS
Optical sensor size	1/2.9 \
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	240p, 480p, 720p, 1080p
Video formats supported	H.264
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Supported graphics resolutions	320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
LED type	IR
Night vision distance	50 m
Number of illumination LEDs	6
Security algorithms	WPA, WPA2
Alert notification type	E-mail
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Mobile operating systems supported	Android, iOS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	20 - 85 %
Power consumption	200 mA
Power consumption (max)	20 W
Harmonized System (HS) code	85258900

Weight and Dimensions

Width	111 mm
Length	180 mm
Weight	1000 g
