Foscam SD2 User Manual

48

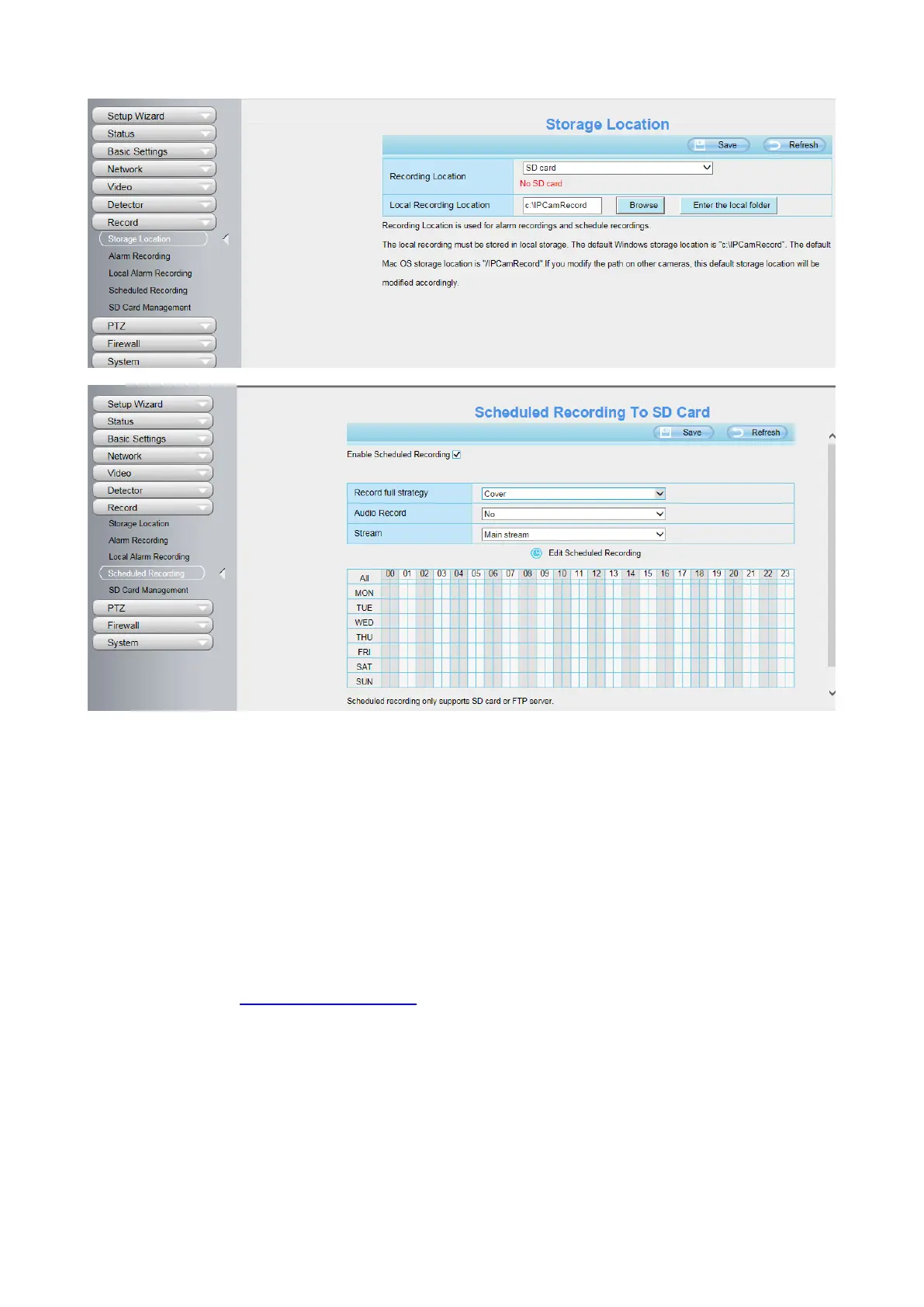

Record frame: There are six frame selections, such as 1 / 30, 4 / 30, 8 / 30, 15 / 30, 24 / 30, 30 / 30.
Recommended default is 4 / 30. The greater the Frame rate is, the sharper picture quality is, and the
greater of storage space is, the shorter the storage time is.
Record full strategy: When the SD card is full, you can choose to cover the previous recording, or stop
recording.
NOTES:
 Scheduled recording only supports video saved to the SD card or FTP server.
 The schedule recording will stop while alarm recording is beginning, and it will continue
automatically after alarm recording end.
 You can refer to 3.7.6.1 Motion Detection > 5 Alarm Schedule. in Alarm about editing the time of
recording Schedule.
3.7.7.5 SD Card Management
The SD card Slot inside the camera, if you want to install or remove the Micro SD card, you need to open
the camera.
When you plug in the Micro SD card during the camera work process, please reboot the camera again,
or else the SD Card may be cannot work well.
Go to the Settings > Status > Device Status page, you can see the SD card status.

Foscam SD2 Specifications

General

Type	IP security camera
Antenna type	External
Certification	FCC, CE, RoHS
Day/night mode	Yes
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Audio system	2-way
Bluetooth	-
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi data rate (max)	450 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	IP, TCP, UDP, HTTP, HTTPS, DHCP, SMTP, FTP, RTSP
Minimum illumination	0 lx
Optical zoom	4 x
Number of lenses	1
Focal length range	2.8 - 12 mm
Maximum aperture number	3
Minimum aperture number	1.7
Form factor	Dome
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Sensor type	CMOS
Optical sensor size	1/2.9 \
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	240p, 480p, 720p, 1080p
Video formats supported	H.264
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Supported graphics resolutions	320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
LED type	IR
Night vision distance	50 m
Number of illumination LEDs	6
Security algorithms	WPA, WPA2
Alert notification type	E-mail
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Mobile operating systems supported	Android, iOS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	20 - 85 %
Power consumption	200 mA
Power consumption (max)	20 W
Harmonized System (HS) code	85258900

Weight and Dimensions

Width	111 mm
Length	180 mm
Weight	1000 g
