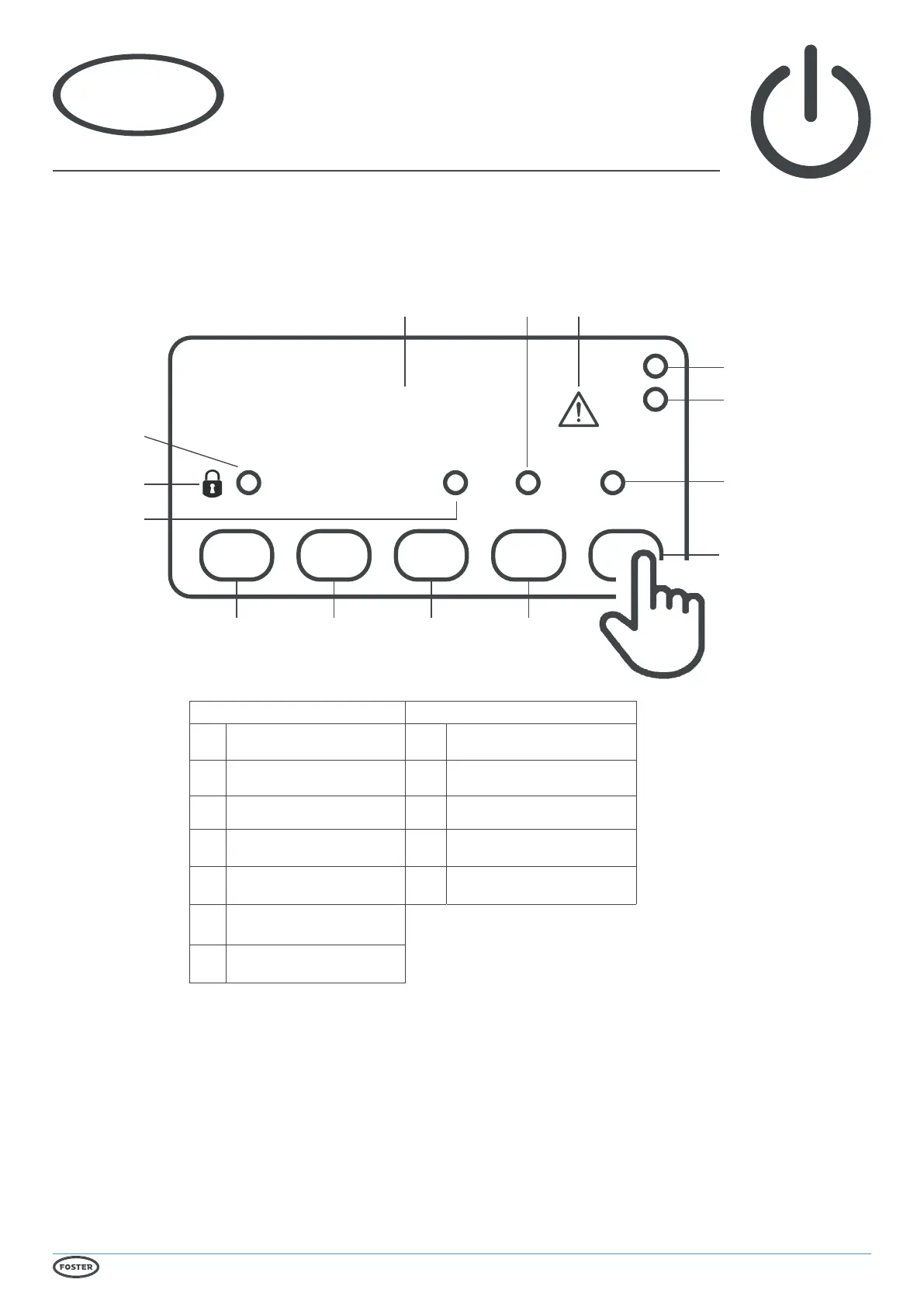

Display Icons and Buttons
Operating Instructions
1
Standby
Pressing button 3 for 3 seconds will turn the unit on or into standby. When in standby, only button 3 will be displayed. The remainder of the display
will be blank. When operating normally, the display will show the internal temperature and button 3.
Icon Button
1 Compressor running 1 Information menu
2 Keypad locked 2 Increase value
3 Evaporator fans running 3 Standby/Exit/Conrm
4 Defrost in progress 4 Decrease value
5 Alarm 5 Light (If tted)
6/7
Display units Centigrade or
Fahrenheit
8 Auxillary output operation
+2
Icon 2
Icon 3
Icon 1
Icon 6
Button 1 Button 2 Button 3 Button 4
Button 5
Icon 7
Icon 8
Icon 5Icon 4
Appliance internal
temperature
Note - Buttons 1, 2, 4 and 5 are only visible after pressing button 3
