Fostex 450 - Page 13

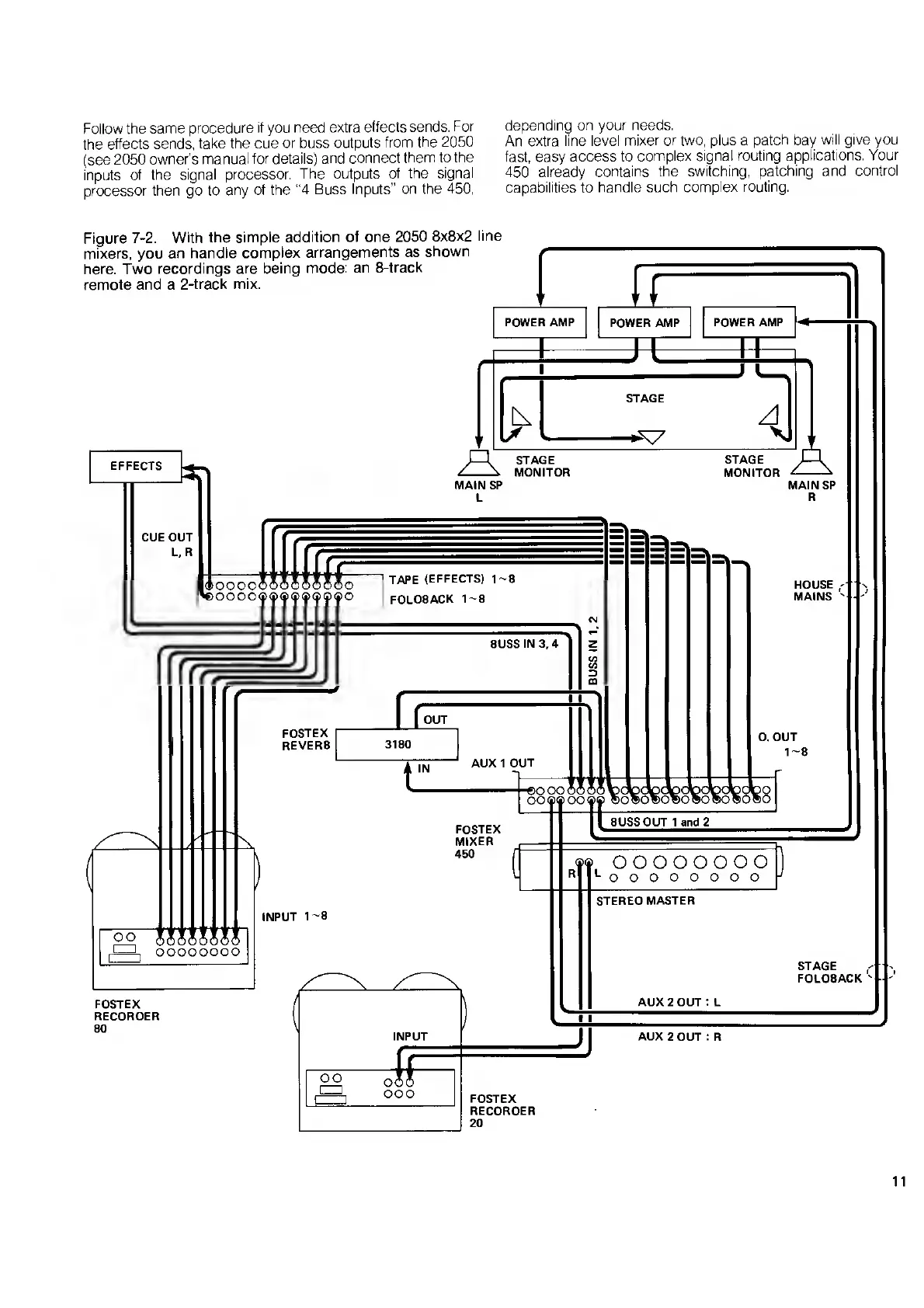

Follow the same procedure if you need extra effects sends. For
the effects sends, take the cue or buss outputs from the 2050
(see 2050 owner’s manual for details) and connect them to the
inputs of the signal processor. The outputs of the signal
processor then go to any of the “4 Buss Inputs” on the 450,
depending on your needs.
An extra line level mixer or two, plus a patch bay will give you
fast, easy access to complex signal routing applications. Your
450 already contains the switching, patching and control
capabilities to handle such complex routing.
11
