section 7 P.A. APPLICATIONS
In this PA application, the two stage mixes (AUX 2L for Center
Stage — the lead singer; AUX 2R for Stage Left and Stage
Right) are all post-eq and fader — which may or may not work,
depending on specific feedback problems. The AUX 2 signals
would likely be pre-eq and fader, so that external eq could be
used to compensate for room acoustics, speaker placement,
etc.

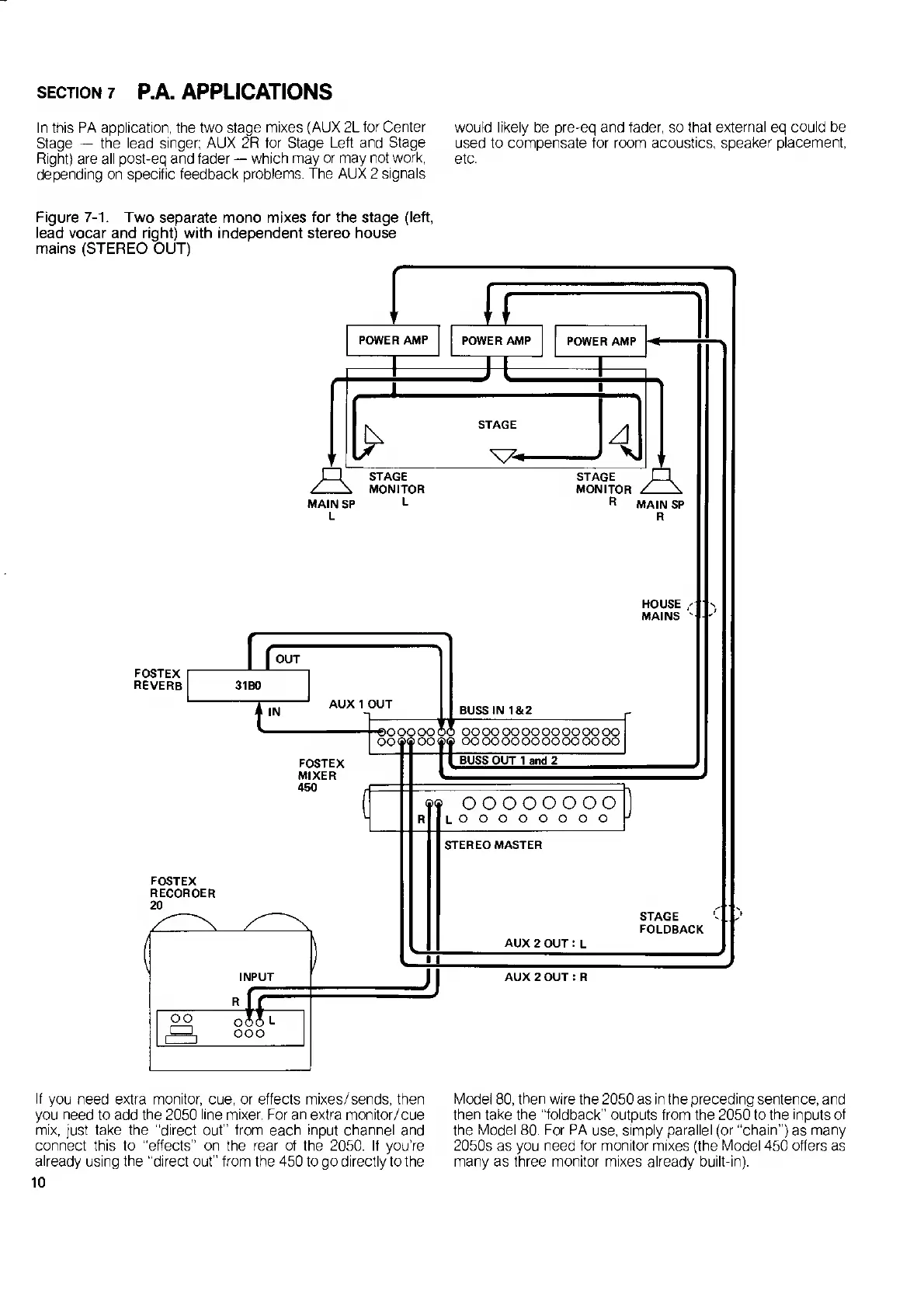

Figure 7-1. Two separate mono mixes for the stage (left,
lead vocar and right) with independent stereo house
mains (STEREO OUT)
If you need extra monitor, cue, or effects mixes/sends, then
you need to add the 2050 line mixer. For an extra monitor/cue
mix, just take the “direct out” from each input channel and
connect this to “effects” on the rear of the 2050. If you’re
already using the “direct out” from the 450 to go directly to the
10
Model 80, then wire the 2050 as in the preceding sentence, and
then take the "foldback” outputs from the 2050 to the inputs of
the Model 80. For PA use, simply parallel (or “chain”) as many
2050s as you need for monitor mixes (the Model 450 offers as
many as three monitor mixes already built-in).
