Fostex D-108 Service Manual

8
D-108
1. Detachable remote controller connector (DSUB 15-pin)
2. Power switch [
POWER
]
3. Controller mount
4. Hard disk access LED (Red)
5. Hard disk power LED (Green)
6. Removable hard disk cartridge slot
7. Lock / Unlock key
8. Controller connection cable
9. Meter display
10. Record track select key [
RECORD TRACK 1 ~ 8
]
11. Shift key [
SHIFT
]
12. Auto play / Auto return key [
AUTO PLAY/AUTO RTN
]
13. Clipboard in key [
CLIPBOARD IN
]
14. Clipboard out key [
CLIPBOARD OUT
]
15. Auto return start key [
AUTO RTN START
]
16. Auto return end key [
AUTO RTN END
]
17. Auto punch in key [
AUTO PUNCH IN
]
18. Auto punch out key [
AUTO PUNCH OUT
]
19. Display select key [
DISP SEL
]
20. Execute / Yes key [
EXECUTE/YES
]
21. Exit / No key [
EXIT/NO
]
22. Recall key [
RECALL
]
23. Store key [
STORE
]
24. Hold / Digit move key [
HOLD/
]
25. Jog / Shuttle dial
26. Redo key [
REDO
]
27. Undo key [
UNDO
]
28. Erase key [
ERASE
]
29. Vari pitch key [
VARI PITCH
]
30. Paste key [
PASTE
]
31. Move key [
MOVE
]
8TRACK DIGITAL RECORDER
D-108
POWER

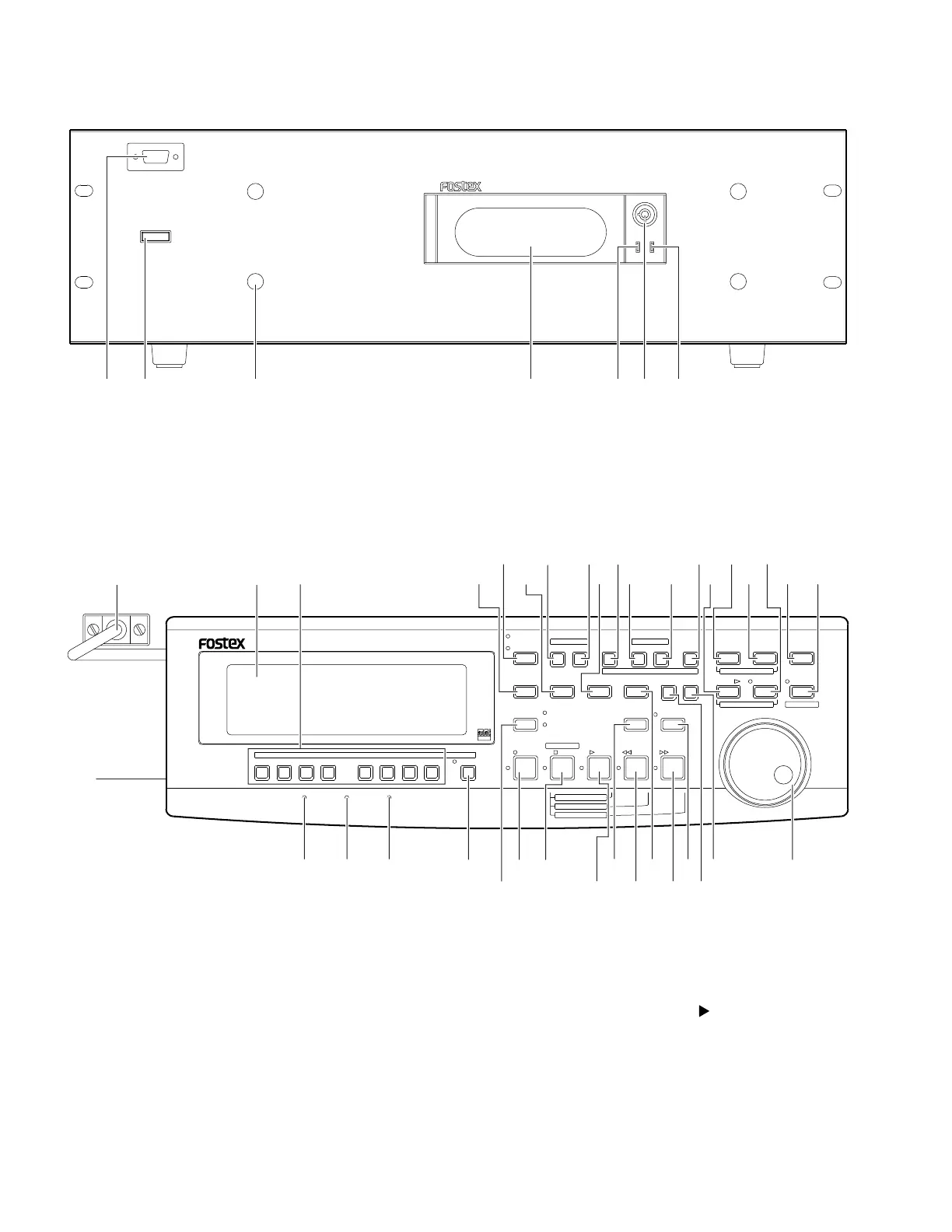

< Front Panel Section without Detachable Controller >
1
12
2
7453
D-108
8TRACK DIGITAL RECORDER
OPTICAL
PREVIEW
ENVELOPE
LOCATE REC END
VARI PITCH
RECORD
STOP PLAY REWIND
F FWD
PUNCH LOCATE
REHEARSAL
TAKE
TIME BASE SEL
RECALLSTOREHOLD/
/NO
EXIT
/YES
EXECUTE
DISP SEL
REDOUNDOERASE
AUTO RTN
COPY MOVE PASTE
CLIPBOARD
AUTO RTN
OUTINAUTO PLAY
AUTO PUNCH
START OUTIN END
TC INLOCKED HD ACCESS
RECORD TRACK
1/9
2/10
3/11
4/12 5/13 6/14
7/15 8/16
PGM SEL
PUNCH
IN / OUT
LOCATE ABS 0
CLIPBOARD PLAY
AUTO
SHIFT
89
10
11
42
41
40
32 31
13
14 15
17 18
16
19
20 21 22
23
24
2526
27
30
3435 36
37 38 39
2928
33
43
< Detachable Controller Section >
6
