32. Copy key [
COPY
]
33. Auto punch mode on / off key
[
AUTO PUNCH
(
REHEARSAL/TAKE
)]
34. Locate key [
LOCATE
]
35. Record button [
RECORD
]
36. Stop button [
STOP
]
37. Play button [
PLAY
]
38. Rewind button [
REWIND
]
39. Fast forward button [
F FWD
]
40. Locked LED [
LED
] (Green)
41. Hard disk access LED [
HD ACCESS
] (Green)
42. MIDI time code in LED [
TC IN
] (Green)
43. Punch in / out jack [
PUNCH IN/OUT
] (Phone)
44. Input jack [
ANALOG IN 1 ~ 8
] (RCA)
45. Output jack [
ANALOG OUT 1 ~ 8
] (RCA)
46. Data input connector [
DATA INPUT
] (Optical)
47. Data output connector [
DATA OUTPUT
] (Optical)
48. SCSI connector [
SCSI
] (D-SUB 25-pin)
49. MIDI input / output / thru connector
[
MIDI INPUT/OUTPUT/THRU
] (DIN 5-pin)
50. Panel A for optional card (Model 5041)
51. Panel B for optional card (Model 8345)
52. AC IN connector [
AC IN
]
53. Video input terminating switch [
75Ω ON/OFF
]
54. Video input connector [
VIDEO INPUT
] (BNC)
55. Video thru connector [
VIDEO THRU
] (BNC)
56. Word input terminating switch [
75Ω ON/OFF
]
57. Word input connector [
WORD INPUT
] (BNC)
58. Word output connector [
WORD OUTPUT
] (BNC)
59. Time code input connector [
TIME CODE INPUT
] (XLR)
60. Time code output connector [
TIME CODE OUTPUT
] (XLR)
61. Balanced input connector [
+4dBu INPUT
] (XLR)
62. Balanced output connector [
+4dBu OUTPUT
] (XLR)
AC IN
MIDI
SCSI
OUTPUTINPUT
D ATA
OPTICAL
87 65
123
ANALOG OUTANALOG IN
THRUOUTPUTINPUT
43 21
87 65

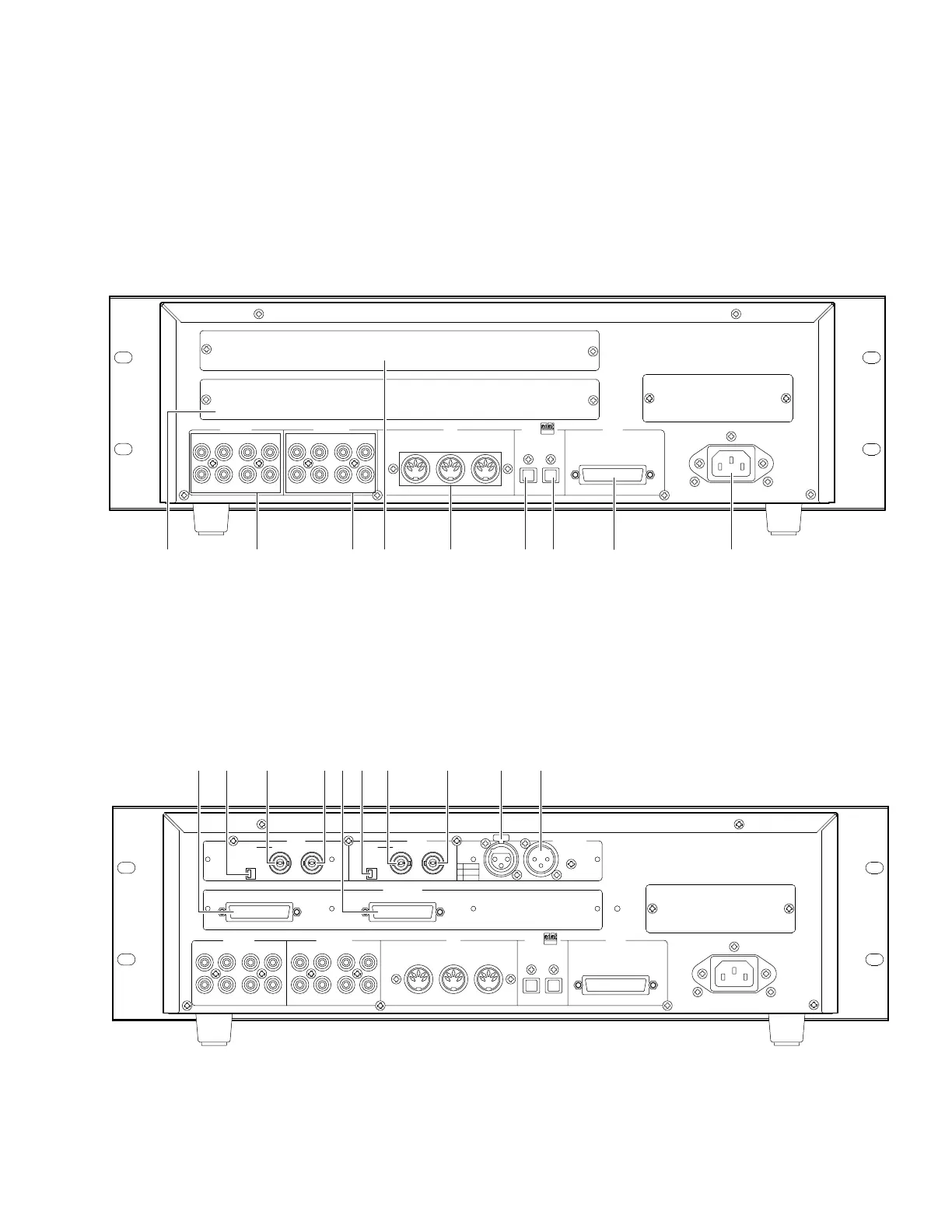

< Rear Panel Section >
50 5144 45 49 46 47 48 52
AC IN
MIDI
SCSI
OUTPUTINPUT
D ATA
OPTICAL
+4dBu INPUT +4dBu OUTPUT
87 65
1234
ON OFF
INPUT THRU
VIDEO
OFFON
INPUT
WORD
OUTPUT
ANALOG OUTANALOG IN
BALANCE I/O
THRUOUTPUTINPUT
43 21
87 65
INPUT
TIME CODE
OUTPUT
3
2
1
COLD
GND
HOT
53 54 55 56 57 58 59 6061 62
< Rear Panel Section with Model 8345 and 5041 >
