Fostex FD-4 - Names and Functions

FD-4
9
13. Record track select keys
[RECORD TRACK (1/L, 2/R, 3/L, 4/R, L, R)]
14. LCD
15. Contrast adjustment knob
16. Display indication select key
17. Setup key [SETUP]
18. Time Base select key
19. Execute/Yes key [EXECUTE/YES]
20. Exit/No key [EXIT/NO/ EJECT ]
21. Access LED [ACCESS]
22. JOG dial [JOG/ SHUTTLE ]
23. Fast forward button [F FWD/ ]
24. Rewind button [REWIND/ ]
25. Play button [PLAY]
26. Stop button [STOP]
27. Record button [RECORD/ AUTO PUNCH ]
28. Shift key [ SHIFT ]
29. Vari Pitch key [VARI PITCH/ P.EDIT ]
30. Auto Return/Auto Play mode on/off key
[AUTO RTN/AUTO PLAY]
31. Locate key [LOCATE/ LOC MEM ]
32. Hold/ key [HOLD/ ]
33. Store key [STORE]
34. Undo/Redo key [UNDO/REDO]
35. Edit key [EDIT]
36. Auto Return Start key [AUTO RTN START/ PREVIEW ]
37. Auto Return End key [AUTO RTN END/ PREVIEW ]
38. Auto Punch In key [AUTO PUNCH IN/ PREVIEW ]
39. Auto Punch Out key [AUTO PUNCH OUT/ PREVIEW ]
40. Clipboard In key [CLIPBOARD IN/ PREVIEW ]
41. Clipboard Out key [CLIPBOARD OUT/ PREVIEW ]
26
27
28
29
30
31
32
35
33
34
36
38
39
37
13
14
41
40
15
16
17
18
19
20
21
22
23
24
25

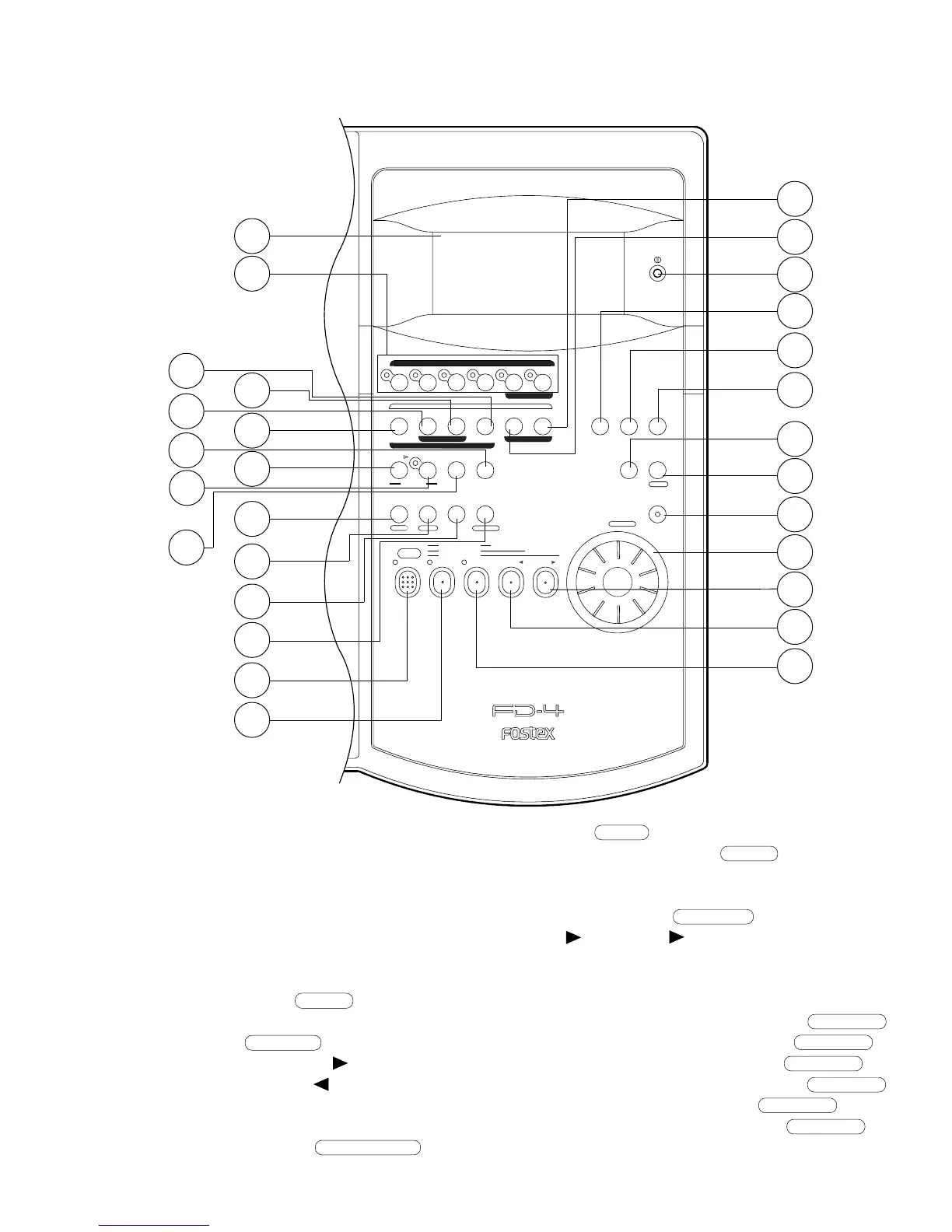

Control Panel (Recorder Section)
