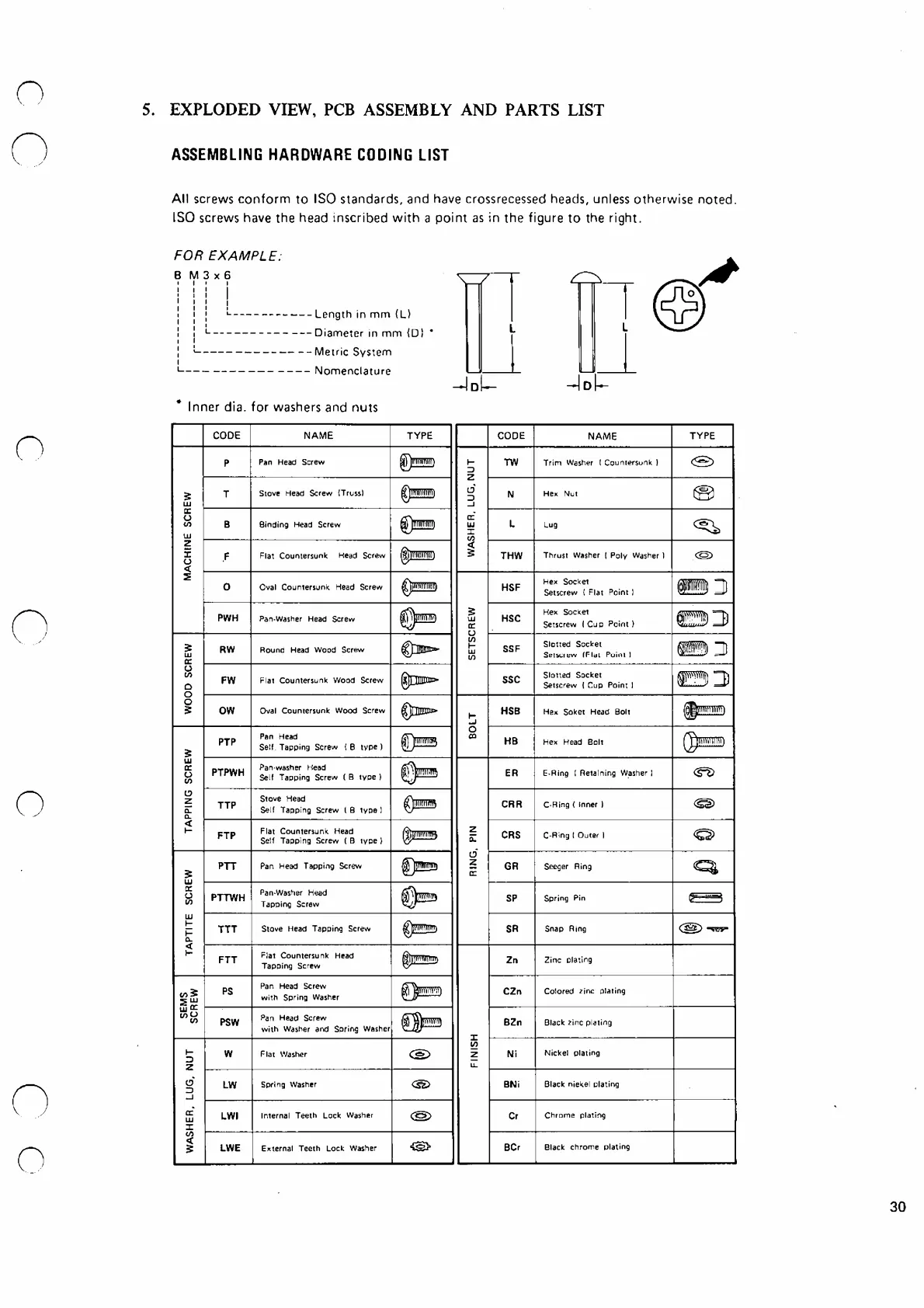

5. EXPLODED VIEW, PCB ASSEMBLY AND PARTS LIST
ASSEMBLING HARDWARE CODING LIST
All screws conform to ISO standards, and have crossrecessed heads, unless otherwise noted.
ISO screws have the head inscribed with a point as in the figure to the right.
FOR EXAMPLE:
B M 3 x 6
III I
! I I |
  | ' ---------------------- Length in mm ( L)
I I 1 --------------------------- Diameter in mm {D ) *
I I
I ' ------------------------------ Metric System
i
1 ---------------------------------- Nomenclature
* Inner dia. for washers and nuts
CODE NAME
TYPE
CODE
NAME
TYPE
1
MACHINE
SCREW
P
Pan Head Screw
WASHER,
LUG,
NUT
TW
Trim Washer ( Countersunk )
T
Stove Head Screw (Truss!
N
Hex Nut
B Binding Head Screw L Lug
F
Flat Countersunk Head Screw
$!M) THW
Thrust Washer { Poly Washer )
0
Oval Countersunk Head Screw
¡i j^
SETSCREW
HSF
Hex Socket
Setscrew ( Flat Point )
m
PWH
Pan-Washer Head Screw HSC
Hex Socket
Setscrew ( Cup Point )
WOOD
SCREW
RW
Round Head Wood Screw
SS F
Slotted Socket
Setscrew (Flat Point )
u
FW
Flat Countersunk Wood Screw
SSC
Slotted Socket
Setscrew ( Cup Point 1
OW
Oval Countersunk Wood Screw
BOLT
|
HSB Hex Soket Head Bolt
TAPPING
SCREW
PTP
Pan Head
Self Tapping Screw ( B type )
HB
Hex Head Bolt
PTPWH
Pan*washer Head
Self Tapping Screw ( B type )
RING,
PIN
ER
E-Ring I Retaining Washer 1
TTP
Stove Head
Self Tapping Screw ( B type I
CRR
C-Ring ( Inner )
FTP
Flat Countersunk Head
Self Tapping Screw ( B type 1
CRS
C-Ring ( Outer )
TAPTITE
SCREW
PTT
Pan Head Tapping Screw
GR
Seeger Ring
PTTWH
Pan ‘ Wash er Head
Tapping Screw
SP
Spring Pin
TTT
Stove Head Tapping Screw
SR
Snap Ring
- to -
FTT
Flat Countersunk Head
Tapping Screw
FINISH
Zn
Zinc plating
SEMS
SCREW
PS
Pan Head Screw
with Spring Washer
Q m R
CZn
Colored zinc plating
PSW
Pan Head Screw
with Washer and Spring Washer
BZn
Black zinc plating
WASHER,
LUG,
NUT
W
Flat Washer
Ni
Nickel plating
LW
Spring Washer
<3£>
BNi
Black niekel plating
LWI
Internal Teeth Lock Washer
Cr
Chrome plating
LWE
E sternal Teeth Lock Washer
BCr
Black chrome plating
30
