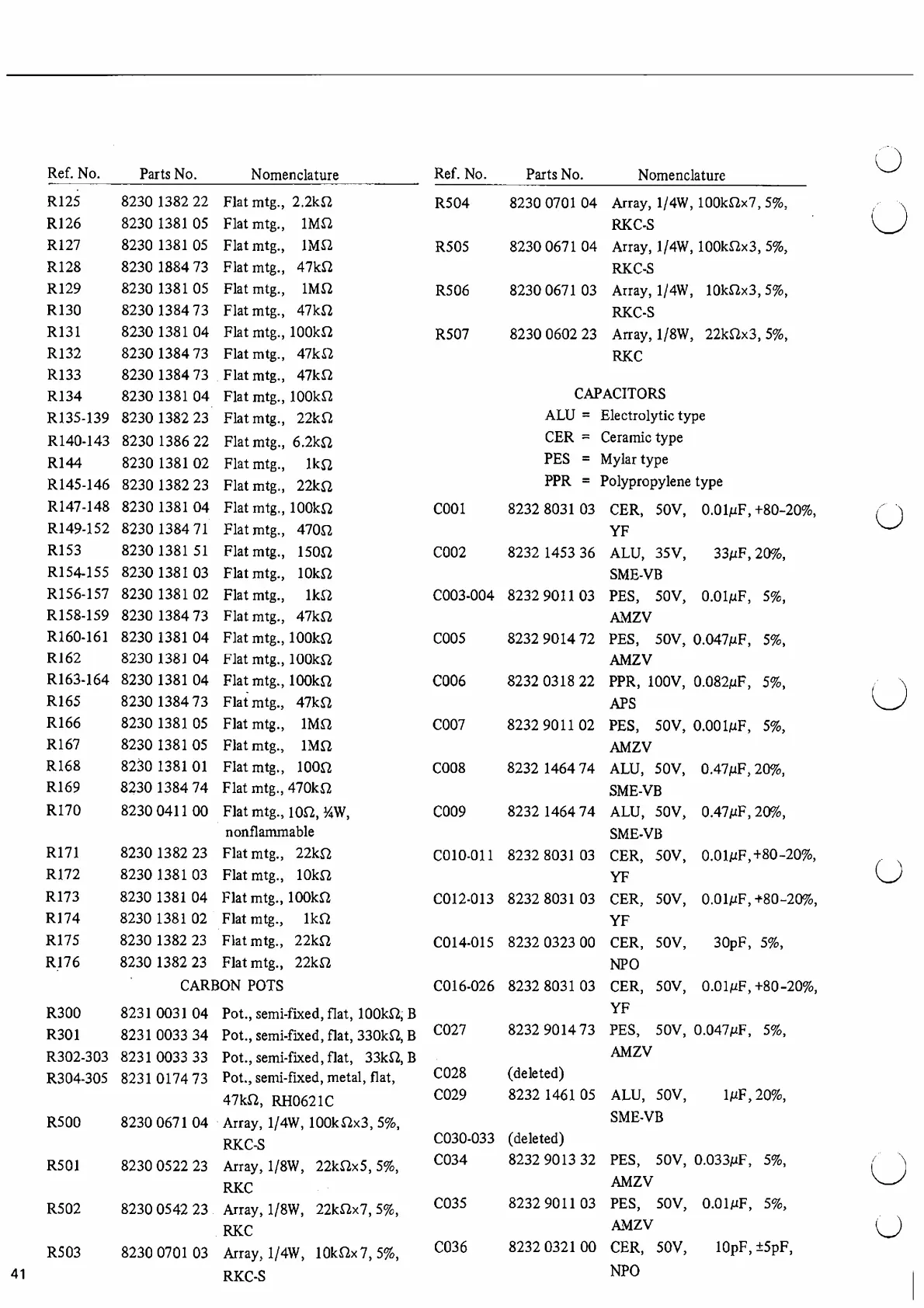

Fostex G16S - Page 46

41 RKC-S NP 0
Ref. No.
Parts No.
Nomenclature
Ref. No.
Parts No.
Nomenclature
R125
8230 1382 22
Flat mtg., 2.2k«
R504 8230 0701 04
Array, 1/4W, 100k«x7, 5%,
R126
8230 1381 05
Flat mtg., 1M«
RKC-S
R127
8230 1381 05 Flat mtg., 1M«
R505 8230 0671 04 Array, 1/4W, 100k«x3, 5%,
R128
8230 1884 73
Flat mtg., 47k«
RKC-S
R129 8230 1381 05 Flat mtg., 1M«
R506 8230 0671 03
Array, 1/4W,
10k«x3, 5%,
R130 8230 1384 73
Flat mtg., 47k«
RKC-S
R131
8230 1381 04
Flat mtg., 100k«
R507
8230 0602 23
Array, 1/8W, 22k«x3, 5%,
R132
8230 1384 73 Flat mtg., 47k«
RKC
R133 8230 1384 73 Flat mtg., 47k«
R134 8230 1381 04 Flat mtg., 100k«
CAPACITORS
R135-139 8230 1382 23 Flat mtg., 22k«
ALU =
Electrolytic type
R 140-143
8230 1386 22 Flat mtg., 6.2k«
CER =
Ceramic type
R144
8230 1381 02
Flat mtg., lkJ2
PES =
Mylar type
R145-146
8230 1382 23
Flat mtg., 22k«
PPR =
Polypropylene type
R 147-148
8230 1381 04
Flat mtg,, 100k«
C001
8232 8031 03
CER, 50V,
0.01/rF, +80-20%,
R149-152
8230 1384 71
Flat mtg., 470«
YF
R153
8230 1381 51
Flat mtg., 150«
C002
8232 1453 36
ALU, 35V,
33gF, 20%,
R154-155
8230 1381 03
Flat mtg., 10k«
SME-VB
R156-157
8230 1381 02
Flat mtg., 1k«
C003-004
8232 9011 03
PES, 50V,
O.OI m F, 5%,
R158-159
8230 1384 73
Flat mtg., 47k«
AMZV
R160-161 8230 1381 04
Flat mtg., 100k«
C005
8232 9014 72
PES, 50V,
0.047 m F, 5%,
R162
8230 1381 04
Flat mtg., 1Ü0W
AMZV
R163-164 8230 1381 04
Flat mtg., 100k«
C006 8232 0318 22
PPR, 100V, 0.082jUF, 5%,
R165
8230 1384 73
Flat mtg., 47k«
APS
R166 8230 1381 05
Flat mtg., 1M«
C007
8232 901102
PES, 50V, 0.00 1 ju F, 5%,
R167
8230 1381 05
Flat mtg., 1M«
AMZV
R168
8230 1381 01
Flat mtg., 100«
C008
8232 1464 74
ALU, 50V, 0.47 m F, 20%,
R169
8230 1384 74 Flat mtg., 470k«
SME-VB
R170
8230 0411 00
Flat mtg., 10«, %W, C009
8232 1464 74
ALU, 50V,
0.47MF, 20%,
nonflammable
SME-VB
R171 8230 1382 23 Flat mtg., 22k«
C010-011
8232 8031 03
CER, 50V,
O.OI m F, +80-20%,
R172
8230 1381 03 Flat mtg., 10k«
YF
R173
8230 1381 04 Flat mtg., 100k«
C012-013 8232 8031 03 CER, 50V,
O.OI m F, +80-20%,
R174 8230 1381 02 Flat mtg., 1k«
YF
R175 8230 1382 23 Flat mtg., 22k«
C014-015
8232 0323 00
CER, 50V,
30pF, 5%,
R176
8230 1382 23
Flat mtg., 22k«
NPO
CARBON POTS
C01 6-026 8232 8031 03 CER, 50V,
O.OlgF, +80-20%,
R300 8231 0031 04
Pot., semi-fixed, flat, 100k«, B
YF
R301
8231 0033 34
Pot., semi-fixed, flat, 330k«, B
C027 8232 9014 73 PES, 50V, 0.047MF, 5%,
R302-303
8231 0033 33 Pot ., semi-fixe d , flat , 3 3k«, B
AMZV
R304-305
8231 0174 73
Pot., semi-fixed, metal, flat,
C028 (deleted)
47k«, RH0621C
C029
8232 1461 05 ALU, 50V,
IMF, 20%,
R500
8230 0671 04 Array, 1/4W, 100k«x3, 5%,
SME-VB
RKC-S
C030-033 (deleted)
R501 8230 0522 23
Array, 1/8W, 22k«x5, 5%,
C034 8232 9013 32 PES, 50V, 0.033MF, 5%,
RKC
AMZV
R502
8230 0542 23 Array, 1/8W, 22k«x7, 5%,
C035
8232 9011 03 PES, 50V, 0.01MF, 5%,
RKC
AMZV
R503
8230 0701 03 Array, 1/4W, 10k«x7, 5%,
C036
8232 0321 00
CER, 50V,
lOpF,±5pF,
