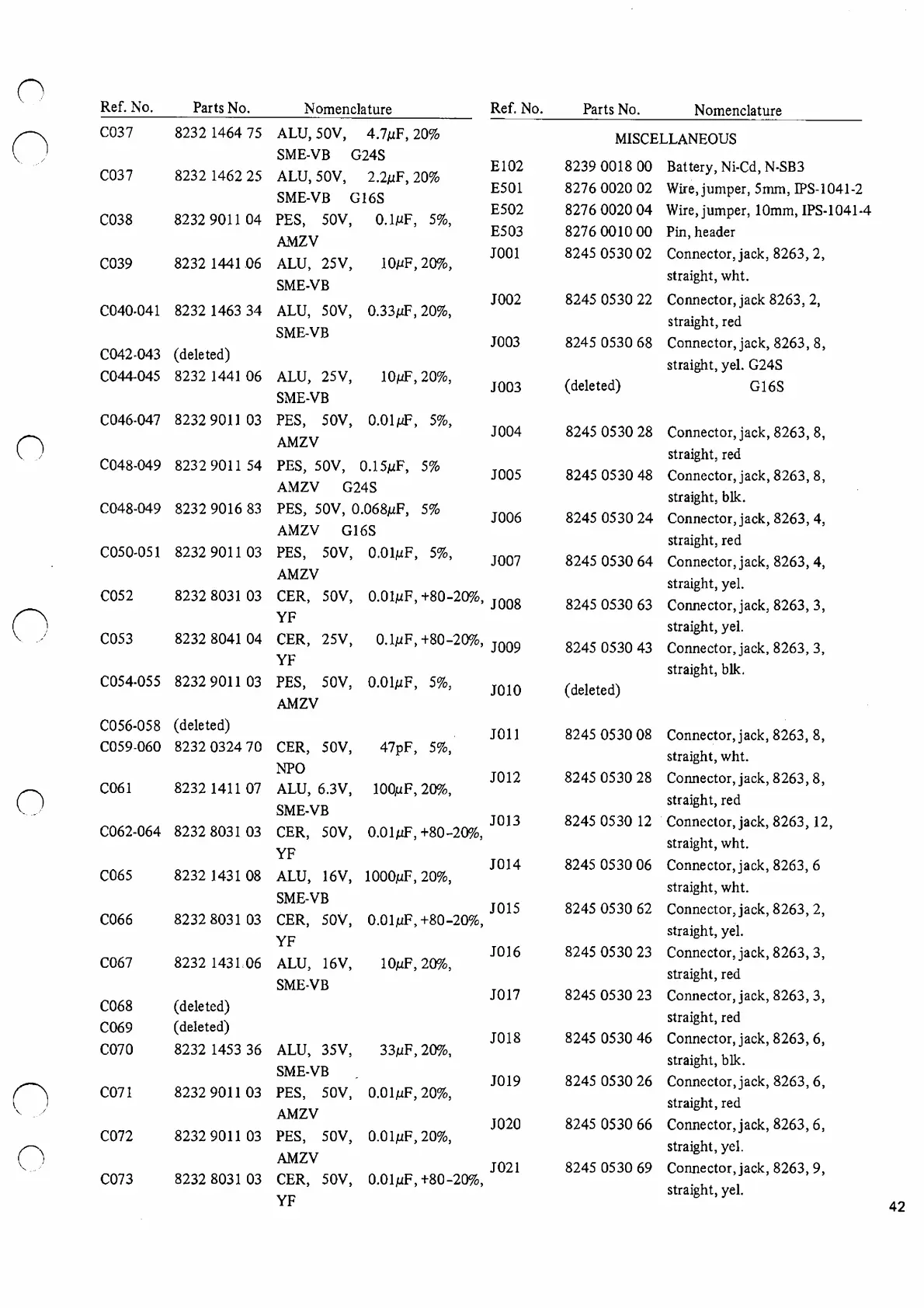

Fostex G16S - Page 47

Ref. No.
Parts No.
Nomenclature
C037
8232 1464 75
ALU, 50V, 4.7 m F, 20%
SME-VB G24S
C037
8232 1462 25
ALU, 50V, 2.2 m F, 20%
SME-VB G16S
C038 8232 9011 04
PES, 50V, 0.1MF, 5%,
AMZV
C039
8232 1441 06 ALU, 25V, IO m F, 20%,
SME-VB
C 040-041
8232 1463 34
ALU, 50V, 0.33 m F,20%,
SME-VB
C042-043 (deleted)
C044-045 8232 1441 06
ALU, 25V, lOgF, 20%,
SME-VB
C046-047 8232 9011 03 PES, 50V, O.OlgF, 5%,
AMZV
C048-049 8232 9011 54
PES, 50V, 0.15 m F, 5%
AMZV G24S
C048-049 8232 9016 83
PES, 50V, 0.068 m F, 5%
AMZV G16S
C050-051
8232 9011 03 PES, 50V, O.OlgF, 5%,
AMZV
C052
8232 8031 03
CER, 50V, O.OljuF, +80-20%,
YF
C053 8232 8041 04
CER, 25V, O.ljuF, +80-20%,
YF
C054-055 8232 9011 03
PES, 50V, O.OljuF, 5%,
AMZV
C056-058
(deleted)
C059-060 8232 0324 70
CER, 50V, 47pF, 5%,
NPO
C061
8232 1411 07 ALU, 6.3V, ÎOO^F, 20%,
SME-VB
C062-064 8232 8031 03
CER, 50V, O.OI m F, +80-20%,
YF
C065
8232 1431 08
ALU, 16V, 1000juF,20%,
SME-VB
C066 8232 8031 03
CER, 50V, O.OljuF, +80-20%,
YF
C067
8232 1431.06
ALU, 16V, 10 m F,20%,
SME-VB
C068
(deleted)
C069
(deleted)
C070
8232 1453 36
ALU, 35V, 33 m F, 20%,
SME-VB
C071 8232 9011 03 PES, 50V, 0,01/zF, 20%,
AMZV
C072 8232 9011 03 PES, 50 V, O.OljuF, 20%,
AMZV
C073 8232 8031 03 CER, 50V, O.OlpF, +80-20%,
YF
Ref. No.
Parts No.
Nomenclature
MISCELLANEOUS
E102
8239 0018 00 Battery, Ni-Cd, N-SB3
E501
8276 0020 02
Wirejumper, 5mm, IPS-1 041-2
E502 8276 0020 04
Wire, jumper, 10mm, IPS-1 041-4
E503 8276 0010 00 Pin, header
J001
8245 0530 02
Connector, jack, 8263, 2,
straight, wht.
J002
8245 0530 22 Connector, jack 8263, 2,
straight, red
J003
8245 0530 68
Connectorjack, 8263, 8,
straight, yel. G24S
J003
(deleted)
G16S
J004
8245 0530 28
Connector J ack, 8263, 8,
straight, red
J005
8245 0530 48
Connector Jack, 8263,8,
straight, blk.
J006
8245 0530 24
Connector Jack, 8263,4,
straight, red
J007
8245 0530 64
Connector Jack, 8263,4,
straight, yel.
J008
8245 0530 63
Connector Jack, 8263, 3,
straight, yel.
J009
J010
8245 0530 43
(deleted)
Connector J ack, 8263, 3,
straight, blk.
J011
8245 0530 08
Connector Jack, 8263, 8,
straight, wht.
J012
8245 0530 28
Connector Jack, 8263,8,
straight, red
J013
8245 0530 12
Connector Jack, 8263,12,
straight, wht.
J014 8245 0530 06
Connector Jack, 8263, 6
straight, wht.
J015
8245 0530 62
Connector Jack, 8263,2,
straight, yel.
J016 8245 0530 23
Connector Jack, 8263, 3,
straight, red
J017
8245 0530 23
Connector Jack, 8263, 3,
straight, red
J018
8245 0530 46
Connect or Jack, 8263, 6,
straight, blk.
J019
8245 0530 26 Connector Jack, 8263, 6,
straight, red
J020
8245 0530 66
Connector jack, 8263, 6,
straight, yel.
J021 8245 0530 69
Connector Jack, 8263, 9,
straight, yel,
