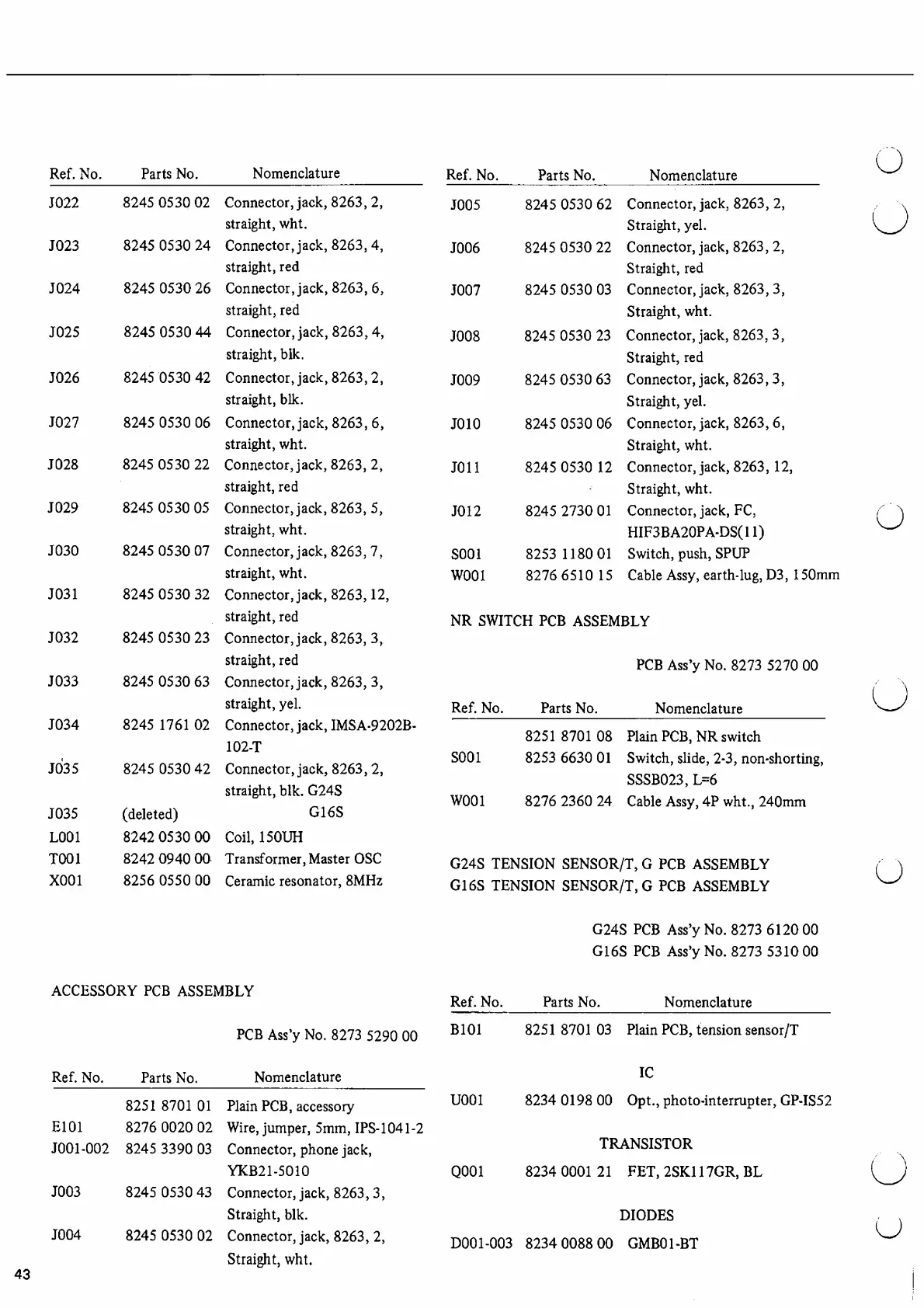

Fostex G16S - Page 48

Ref. No. Parts No.
Nomenclature
1022
8245 0530 02
Connector, jack, 8263,2,
straight, wht.
J023 8245 0530 24
Connector jack, 8263, 4,
straight, red
J024
8245 0530 26
Connector Jack, 8263, 6,
straight, red
J025 8245 0530 44
Connector Jack, 8263,4,
straight, blk.
J026 8245 0530 42
Connector J ack, 8263,2,
straight, blk.
J027 8245 0530 06
Connector, jack, 8263, 6,
straight, wht.
J028 8245 0530 22 Connector J ack, 8263, 2,
straight, red
J029
8245 0530 05
Connector J ack, 8263, 5,
straight, wht.
J030
8245 0530 07
Connector J ack, 8263,7,
straight, wht.
J031
8245 0530 32 Connector Jack, 8263,12,
straight, red
J032
8245 0530 23
Connector Jack, 8263, 3,
straight, red
J033
8245 0530 63
Connectorjack, 8263, 3,
straight, yel.
J034 8245 1761 02
Connector J ack, IMSA-9202B-
102-T
JÓ35
8245 0530 42 Connector jack, 8263,2,
straight, blk. G24S
J035
(deleted)
G16S
L001 8242 0530 00 Coil, 150UH
T001
8242 0940 00
Transformer, Master OSC
X001 8256 0550 00
Ceramic resonator, 8MHz
Ref. No.
Parts No.
Nomenclature
J005
8245 0530 62
Connector jack, 8263, 2,
Straight, yel.
J006
8245 0530 22
Connector, jack, 8263, 2,
Straight, red
J007
8245 0530 03
Connector, jack, 8263,3,
Straight, wht.
J008
8245 0530 23
Connectorjack, 8263, 3,
Straight, red
J009
8245 0530 63
Connectorjack, 8263,3,
Straight, yel.
J010
8245 0530 06
Connector, jack, 8263,6,
Straight, wht.
J011
8245 0530 12
Connector Jack, 8263, 12,
Straight, wht.
J012 8245 2730 01
Connector, jack, FC,
HIF3BA20PA-DS(l 1)
S001 8253 1180 01
Switch, push, SPUP
W001
8276 6510 15
Cable Assy, earth-lug, D3, 150mm
NR SWITCH PCB ASSEMBLY
PCB Ass ’ y No. 8273 5270 00
Ref. No. Parts No. Nomenclature
8251 8701 08 Plain PCB, NR switch
S001 8253 6630 01 Switch, slide, 2-3, non-shorting,
SSSB023, L=6
W001 8276 2360 24 Cable Assy, 4P wht., 240mm
G24S TENSION SENSOR/T, G PCB ASSEMBLY
G16S TENSION SENSOR/T, G PCB ASSEMBLY
G24S PCB Ass ’ y No. 8273 6120 00
G16S PCB Ass ’ y No. 8273 5310 00
ACCESSORY PCB ASSEMBLY
Ref. No. Parts No.
Nomenclature
Ref. No.
Parts No.
PCB Ass ’ y No. 8273 5290 00
Nomenclature
B101
8251 8701 03
Plain PCB, tension sensor/T
IC
E101
8251 8701 01
8276 0020 02
Plain PCB, accessory
Wire Jumper, 5mm, IPS-1041-2
U001
8234 0198 00
Opt., photo-interrupter, GP-IS52
J001-002
J003
8245 3390 03
8245 0530 43
Connector, phone jack,
YKB2 1-5010
Connector, jack, 8263,3,
Straight, blk.
Q001
TRANSISTOR
8234 0001 21 FET, 2SK117GR, BL
DIODES
J004
8245 0530 02
Connector, jack, 8263, 2,
Straight, wht.
DOO 1-003
8234 0088 00
GMB01-BT
