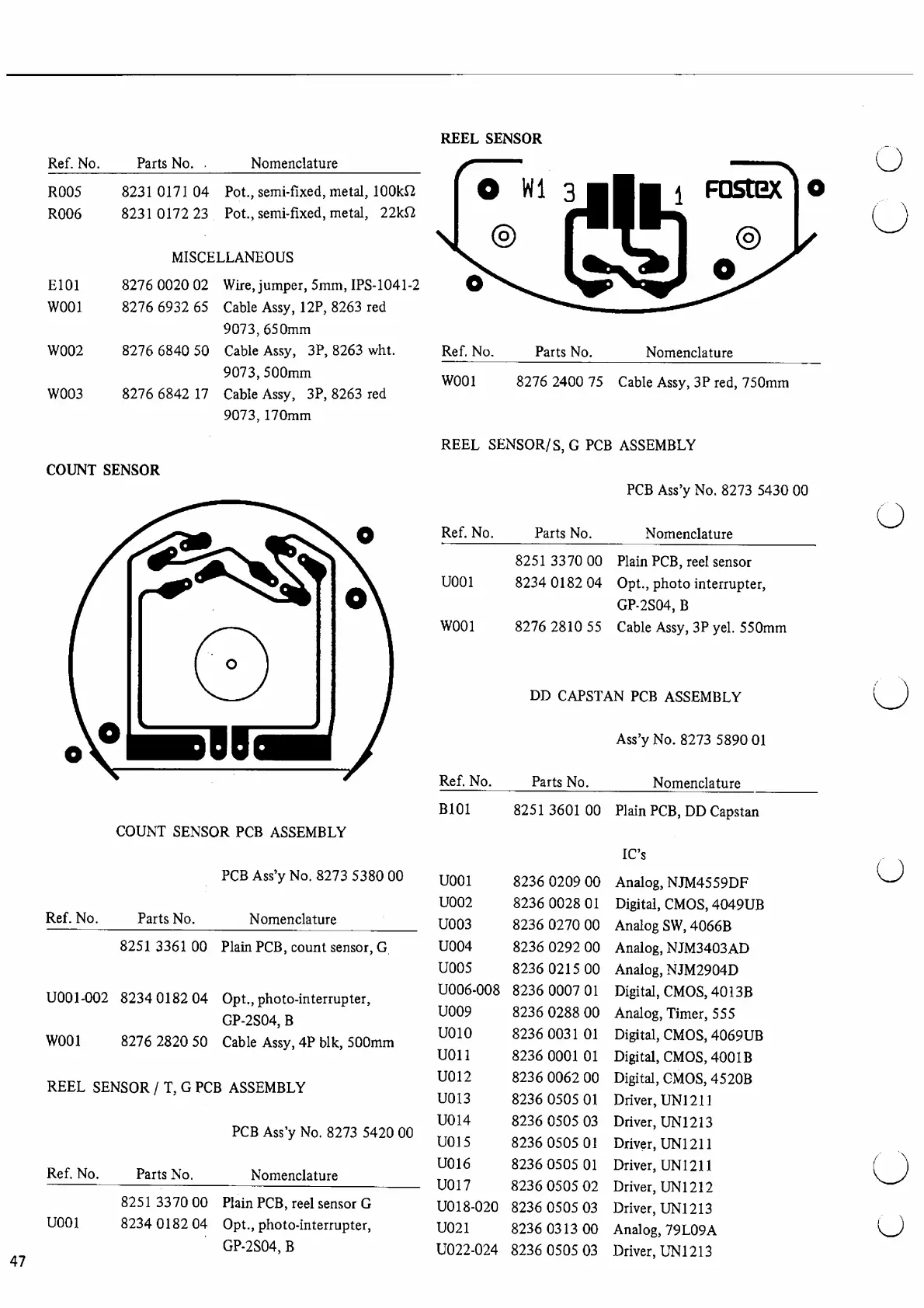

Fostex G16S - Page 52

Ref. No. Parts No. . Nomenclature
RÛ05 8231 0171 04 Pot., semi-fixed, metal, 100k«
R006 8231 0172 23. Pot,, semi-fixed, metal, 22k«
MISCELLANEOUS
E101 8276 0020 02 Wire, jumper, 5mm, IPS-1041-2
wool 8276 6932 65 Cable Assy, 12P, 8263 red
9073, 650mm
W002 8276 6840 50 Cable Assy, 3P, 8263 wht.
9073, 500mm
W003 8276 6842 17 Cable Assy, 3P, 8263 red
9073, 170mm
REEL SENSOR
Ref. No. Parts No. Nomenclature
W001 8276 2400 75 Cable Assy, 3P red, 750mm
COUNT SENSOR
REEL SENSOR/ S, G PCB ASSEMBLY
PCB Ass ’ y No. 8273 5430 00
Ref. No,Parts No.Nomenclature
8251 3370 00 Plain PCB, reel sensor
U001 8234 0182 04 Opt., photo interrupter,
GP-2S04, B
wool 8276 2810 55 Cable Assy, 3P yel. 550mm
DD CAPSTAN PCB ASSEMBLY
Ass ’ y No. 8273 5890 01
Ref. No. Parts No,Nomenclature
B101 8251 3601 00 Plain PCB, DD Capstan
COUNT SENSOR PCB ASSEMBLY
PCB Ass ’ y No. 8273 5380 00
Ref. No. Parts No. Nomenclature
8251 3361 00 Plain PCB, count sensor, G
U001-002 8234 0182 04 Opt., photo-interrupter,
GP-2S04, B
W001 8276 2820 50 Cable Assy, 4P blk, 500mm
REEL SENSOR / T, G PCB ASSEMBLY
PCB Ass ’ y No. 8273 5420 00
Ref. No. Parts No, Nomenclature
8251 3370 00 Plain PCB, reel sensor G
U001 8234 0182 04 Opt., photo-interrupter,
GP-2S04, B
IC ’ s
U001
8236 0209 00
Analog, NJM4559DF
U002
8236 0028 01
Digital, CMOS, 4049UB
U003
8236 0270 00
Analog SW, 4066B
U004
8236 0292 00
Analog, NJM3403AD
U005
8236 0215 00
Analog, NJM2904D
U006-008
8236 0007 01
Digital, CMOS, 4013B
U009
8236 0288 00
Analog, Timer, 555
U010
8236 0031 01
Digital, CMOS, 4069UB
U011
8236 0001 01
Digital, CMOS, 4001B
U012
8236 0062 00
Digital, CMOS, 4520B
U013
8236 0505 01
Driver, UNI 211
U014
8236 0505 03
Driver, UNI 213
U015
8236 0505 01
Driver, UN1211
U016
8236 0505 01
Driver, UN12H
U017
8236 0505 02
Driver, UNI 212
UO 18-020
8236 0505 03
Driver, UNI 213
U021
8236 0313 00
Analog, 79L09A
U022-024
8236 0505 03
Driver, UN1213
