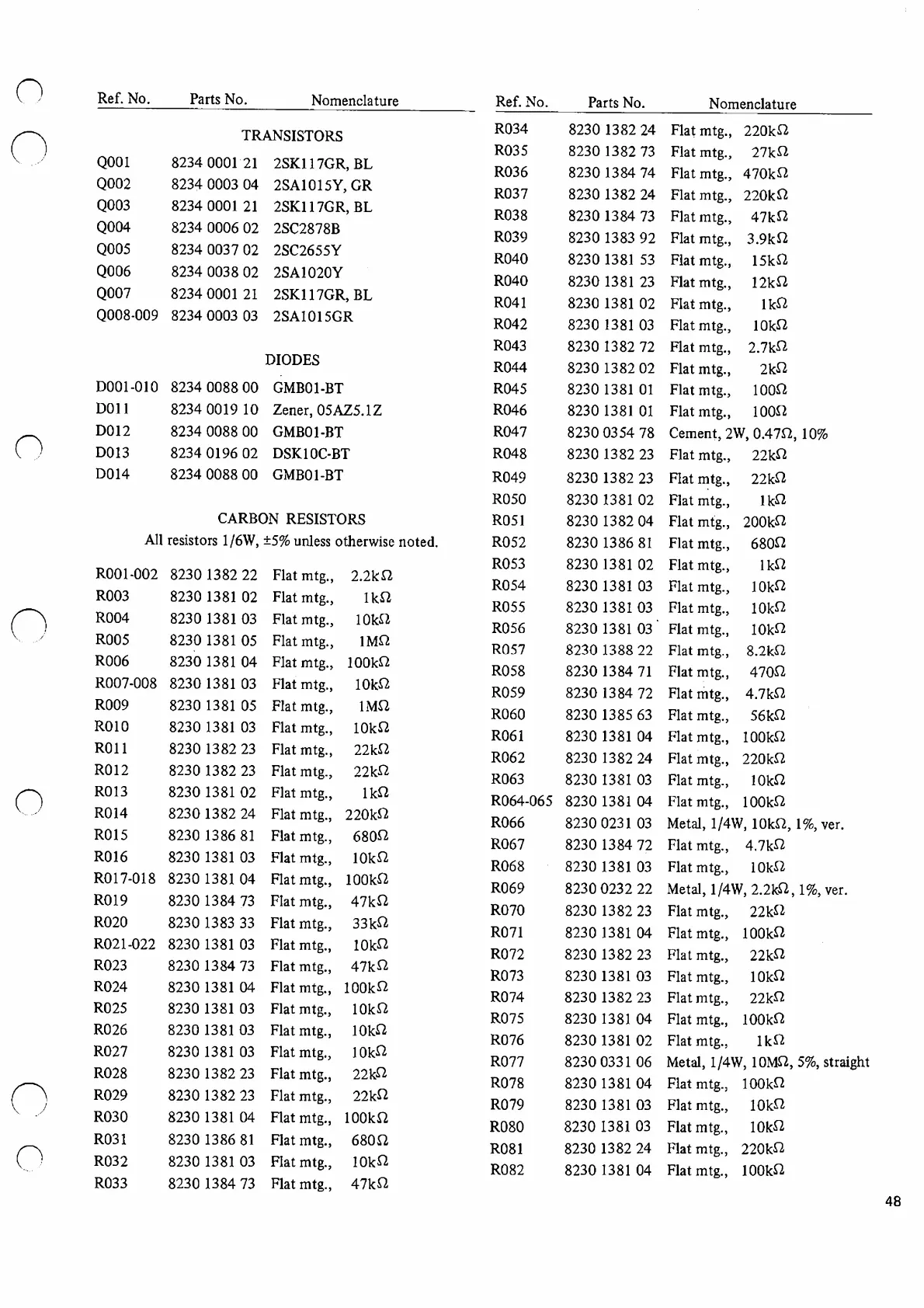

Fostex G16S - Page 53

Ref. No. Parts No.Nomenclature Ref. No. Parts No. Nomenclature
Q001
Q002
Q003
Q004
Q005
Q006
TRANSISTORS
R034
R035
8230 1382 24
8230 1382 73
Flat mtg., 220k^2
Flat mtg., 27k £2
8234 0001 21 2SK117GR, BL
8234 0003 04 2SA1015Y, GR
8234 0001 21 2SK1 1 7GR, BL
8234 0006 02 2SC2878B
8234 0037 02 2SC2655Y
8234 0038 02 2SA1020Y
R036
R037
R038
R039
R040
R040
8230 1384 74
8230 1382 24
8230 1384 73
8230 1383 92
8230 1381 53
8230 1381 23
Flat mtg., 470ki2
Flat mtg., 220kf2
Flat mtg., 47k£2
Flat mtg., 3.9kŒ
Flatmtg., 15kf2
Flatmtg., 12k£2
Q007
Q008-009
8234 0001 21 2SK117GR, BL
8234 0003 03 2SA1015GR
DIODES
R041
R042
R043
R044
8230 1381 02
8230 1381 03
8230 1382 72
8230 1382 02
Flatmtg., lkS2
Flatmtg., 10kŒ
Flat mtg., 2.7kf2
Flat mtg., 2kf2
DOO 1-010
8234 0088 00 GMB01-BT
R045
8230 1381 01
Flat mtg., 100Î2
D011
8234 0019 10 Zener, 05AZ5.1Z
R046
8230 1381 01 Flatmtg., 100Î2
D012
8234 0088 00 GMB01-BT R047
8230 0354 78
Cement, 2W, 0.47Q, 10%
D013
8234 0196 02 DSK10C-BT
R048
8230 1382 23 Flat mtg,, 22kf2
D014
8234 0088 00 GMB01-BT
R049
R050
8230 1382 23
8230 1381 02
Flat mtg., 22kf2
Flatmtg., lk£2
CARBON RESISTORS
R051
8230 1382 04
Flat mtg., 200kf2
All resistors 1/6W, ±5% unless otherwise noted,
R001-002 8230 1382 22 Flat mtg., 2.2ki2
R003 8230 1381 02 Flat mtg., Ikf2
R004 8230 1381 03 Flat mtg., 10ki2
R005 8230 1381 05 Flatmte.. 1MQ
R052
R053
R054
R055
R056
8230 1386 81
8230 1381 02
8230 1381 03
8230 1381 03
8230 1381 03
Flat mtg., 680^2
Flat mtg., 1 kS2
Flatmtg., IOk^2
Flatmtg., 10k£2
Flatmtg., 10ki2
R006
R007-008
R009
8230 1381 04 Flat mtg., 100ki2
8230 1381 03 Flat mtg., 10kf2
8230 1381 05 Flat mtg., IMfi
RÛ57
R058
R059
R060
8230 1388 22
8230 1384 71
8230 1384 72
8230 1385 63
Flat mtg., 8.2k£2
Flat mtg., 470Î2
Flat mtg., 4.7kf2
Flat mtg., 56kf2
R010
R011
8230 1381 03 Flat mtg., 10ki2
8230 1382 23 Flat mtg,, 22ki2
R061
R062
8230 1381 04
8230 1382 24
Flat mtg., 100kf2
Flat mtg., 220kf2
R012
8230 1382 23 Flat mtg,, 22W
R063
8230 1381 03
Flat mtg., 10ki2
R013
8230 1381 02 Flat mtg., 1k«
R064-065
8230 1381 04
Flatmtg., 100ki2
RO 14
8230 1382 24 Flat mtg., 220kS2
R066
8230 0231 03
Metal, 1/4W, 10ki2, 1%, ver.
R015
R016
R017-018
R019
R020
R02 1-022
R023
R024
R025
R026
R027
R028
R029
R030
8230 1386 81 Flat mtg., 680^2
8230 1381 03 Flat mtg,, 10kf2
8230 1381 04 Flatmtg., 100kf2
8230 1384 73 Flat mtg., 47kf2
8230 1383 33 Flat mtg., 33kf2
8230 1381 03 Flatmtg., 10kf2
8230 1384 73 Flat mtg., 47ki2
8230 1381 04 Flatmtg., 100kÎ2
8230 1381 03 Flat mtg., 10ki2
8230 1381 03 Flatmtg., 10kf2
8230 1381 03 Flat mtg,, 10kf2
8230 1382 23 Flat mtg., 22kf2
8230 1382 23 Flat mtg., 22ki2
8230 1381 04 Flat mtg., 100kS2
R067
R068
R069
R070
R071
R072
R073
R074
R075
R076
R077
R078
R079
R080
8230 1384 72
8230 1381 03
8230 0232 22
8230 1382 23
8230 1381 04
8230 1382 23
8230 1381 03
8230 1382 23
8230 1381 04
8230 1381 02
8230 0331 06
8230 1381 04
8230 1381 03
8230 1381 03
Flatmtg,, 4.7kf2
Flatmtg., 10k^2
Metal, 1/4W, 2.2kf2 } 1%, ver.
Flat mtg,, 22kf2
Flat mtg., 100k£2
Flat mtg., 22kf2
Flatmtg., 10k%
Flat mtg., 22k^2
Flat mtg., 100ki2
Flat mtg., 1 k%
Metal, 1/4W, 10MÎ2, 5%, straight
Flat mtg., 100kf2
Flat mtg., 10kf2
Flat mtg., 10kf2
R031
8230 1386 81 Flat mtg., 680Î2
R081
8230 1382 24 Flatmtg,, 220kf2
R032
R033
8230 1381 03 Flatmtg., 10kf2
8230 1384 73 Flat mtg,, 47kf2
RÛ82
8230 1381 04
Flatmtg,, 100kf2
