FoxAlien 3018-SE - CNC Router Hardware Assembly Guide; Gantry and Spindle Assembly

-1-
Part
-1 Gantry Assembly
Required
Parts
No. Name QTY Picture
(1)
X
-axis Gantry & Spindle
1
(2)
Y
-axis Base
1
(14)
M5*1
4 Bolt
8
(18)
Φ5
Gasket
8
(19)
Elastic Nut
8

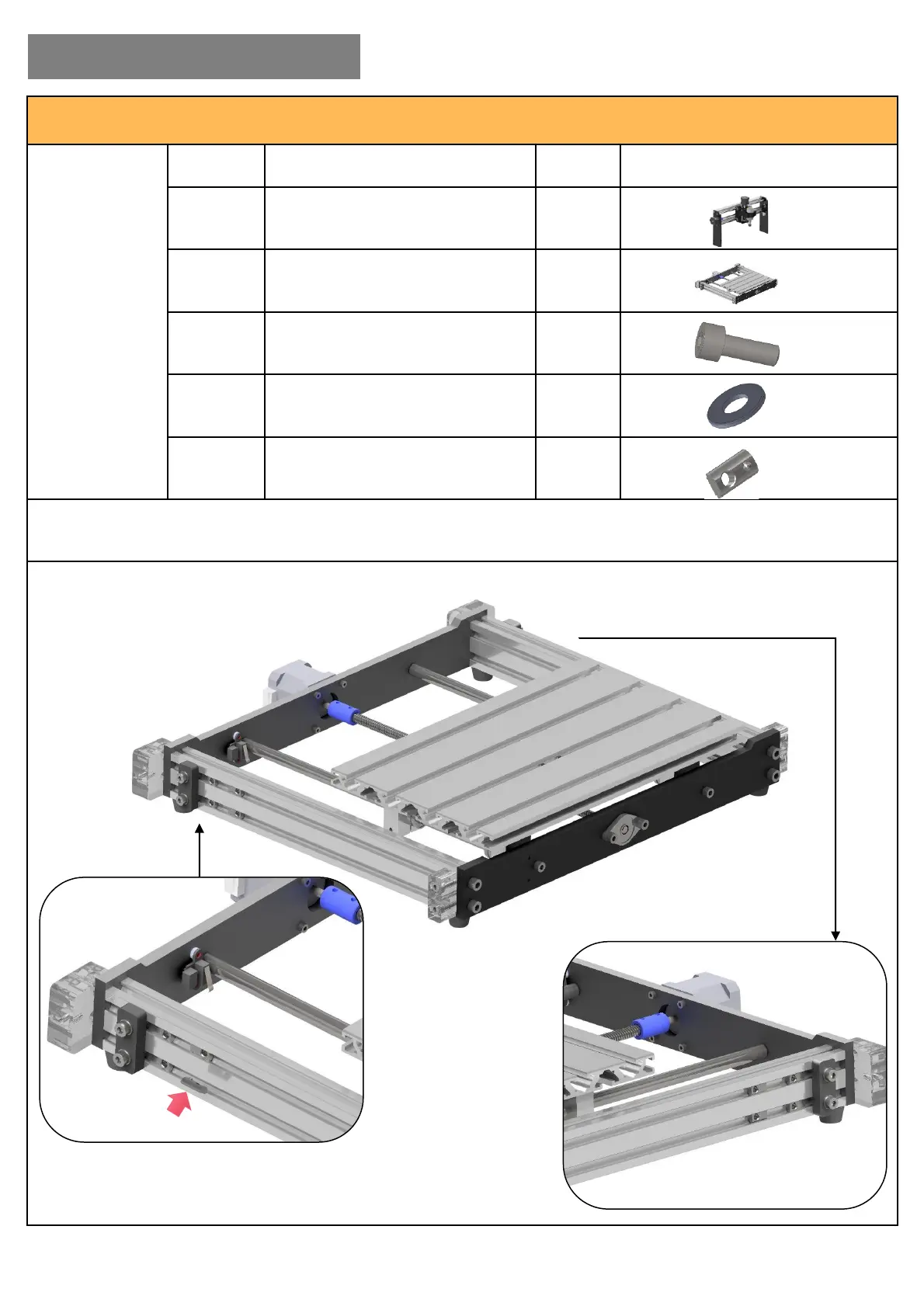

Step 1: Place the elastic nuts into the aluminum profiles, adjust the position. And then fix the gantry
right next to the pads on the base with M5*14 bolts and gaskets.
I. Hardware Assembly
Lean the elastic nut to insert into
the profile, then it will be fixed
