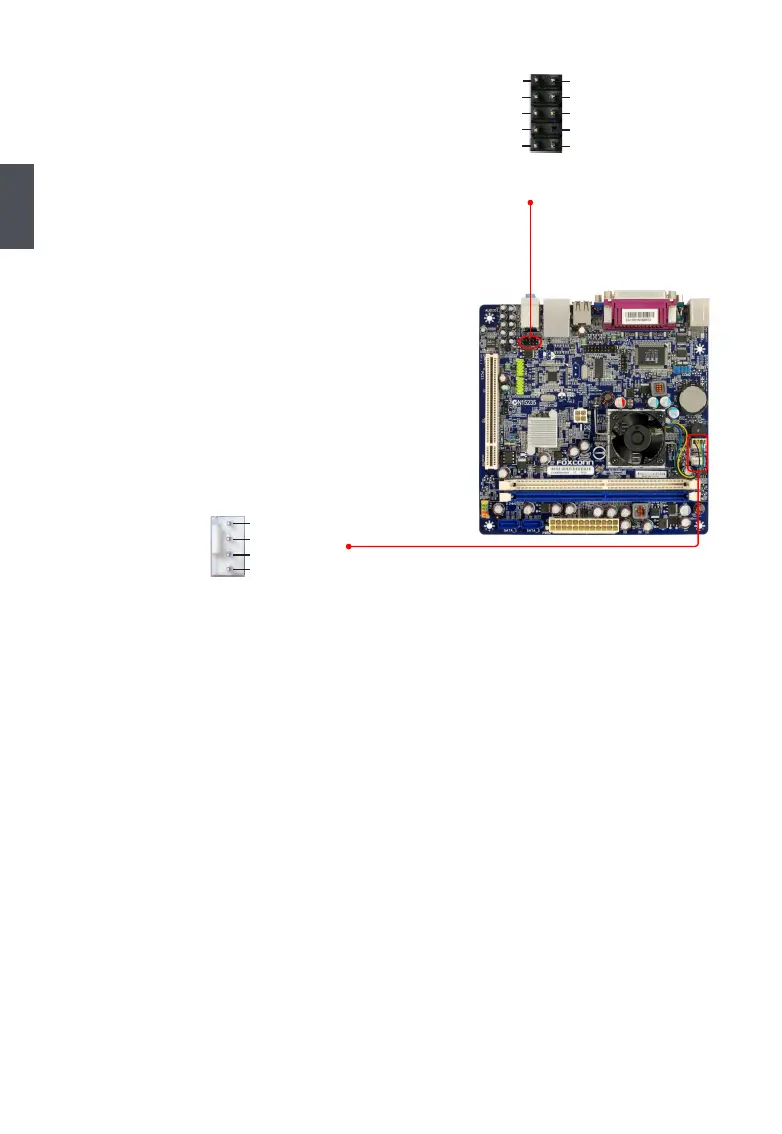

Audio Connector : F_AUDIO1
The audio connector supports HD Audio standard.
It provides the Front Audio output choice.
Fan Headers : CPU_FAN1, SYS_FAN1
There are two main fan headers on this motherboard. The
fan speed can be controlled and monitored in “PC Health
Status” section of the BIOS Setup. These fans can be
automatically turned off after the system enters S3, S4
and S5 sleeping states.
PORT1_L
PORT1_R
PORT2_L
SENSE_SEND
SENSE1_RETURN
PRESENCEJ
EMPTY
SENSE2_RETURN
AUD_GND
1
2
109
F_AUDIO1
PORT2_R
CPU_FAN1/SYS_FAN1
GND
POWER
SENSE
CONTROL
1
