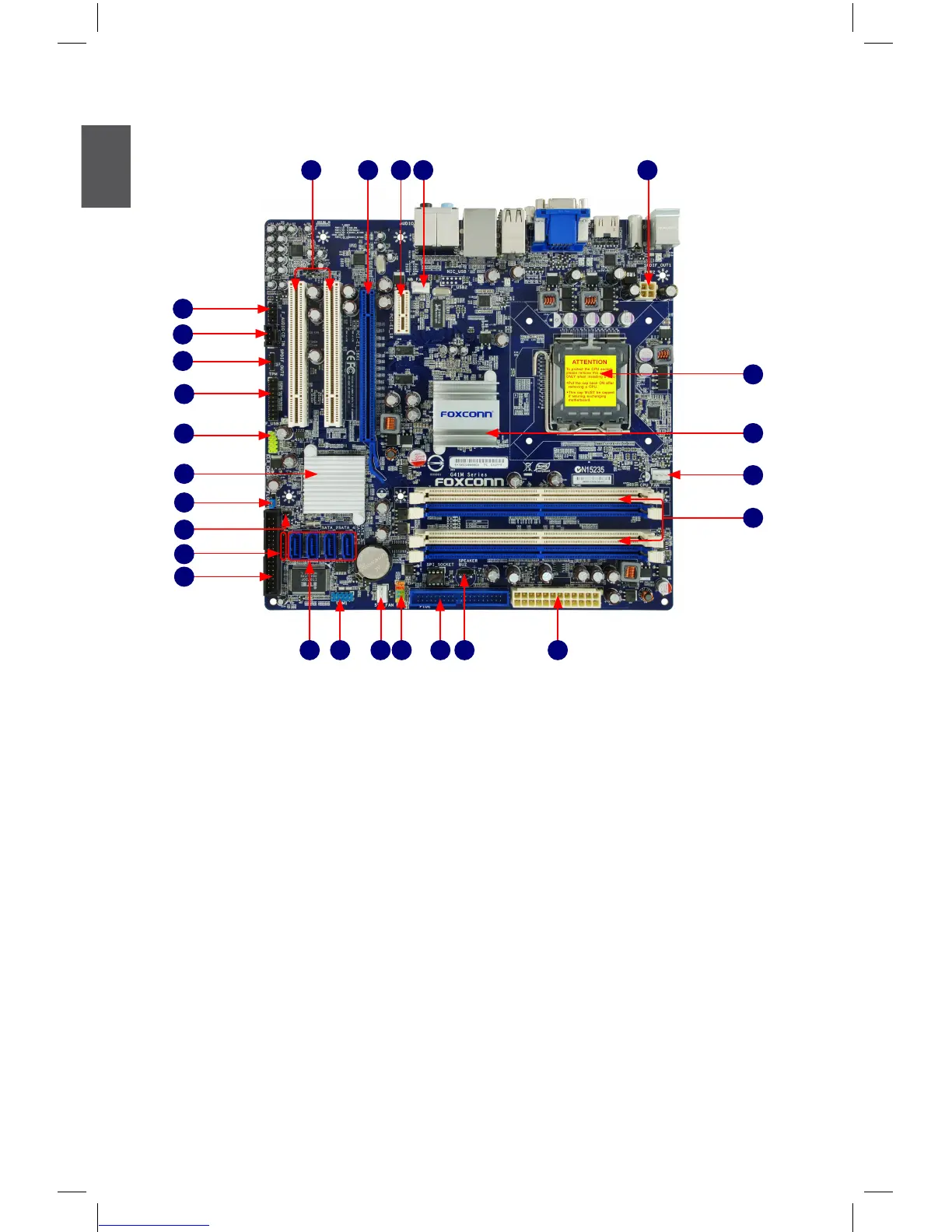

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. 4-pin ATX 12V Power Connector
2. NB_FAN Header
3. PCI Express x1 Slot
4. PCI Express x16 Slot
5. PCI Slots
6. Front Audio Connector
7. CD_IN Connector
8. S/PDIF_OUT Connector
9. TPM Connector
10. Front USB Connector
11. South Bridge: Intel
®
ICH7
12. Clear CMOS Jumper
13. Chassis Intrusion Alarm Header(INTR)
14. IR Connector
15. Floppy Connector
16. SATA Connectors
17. COM1 Connector
18. SYS_FAN Header
19. Front Panel Connector
20. IDE Connector
21. Speaker Connector
22. 24-pin ATX Power Connector
23. DDR2 DIMM Slots
24. CPU_FAN Header
25. North Bridge:G41
26. LGA 775 CPU Socket
1
7
16
8
5
26
12
10
9
6
2
34
18 20 21 22
24
11
1917
23
13
14
15
25
