Foxconn G41MXP Series User Manual

17
2
17

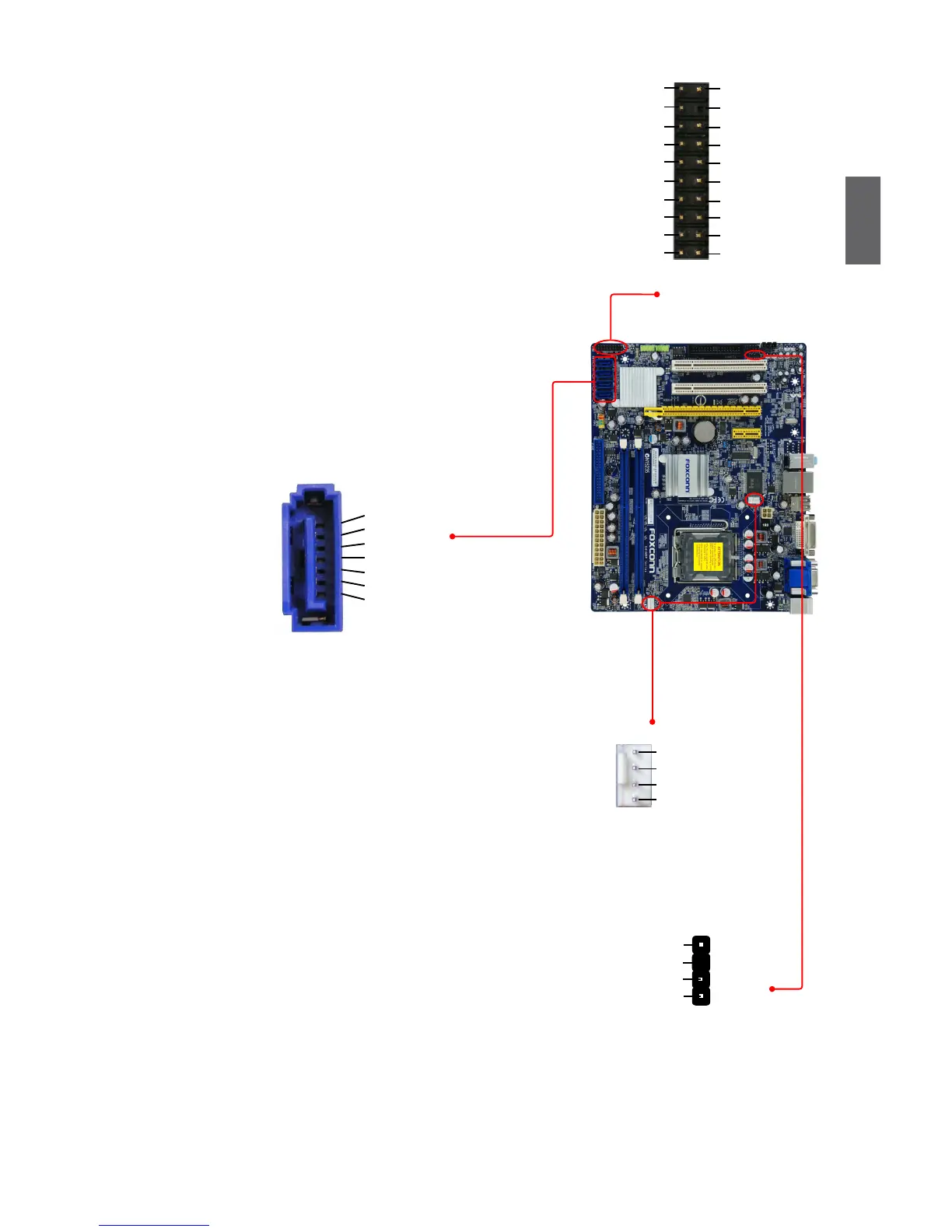

TPM Connector : TPM
The TPM (Trusted Platform Module) provides the ability
to the PC to run applications more secure and to make
transactions and communication more trustworthy. To
utilize this function, you should purchase additional
device and install it.
Serial ATA Connectors : SATA_1/2/3/4
The Serial ATA connector is used to connect with SATA
Hard Disk or CD devices which support this feature.
The current Serial ATA II interface allows up to 300MB/s
data transfer rate.
Fan Connectors : CPU_FAN, SYS_FAN
There are tow main fan headers on this motherboard.
The fan speed can be controlled and monitored in “PC
Health Status” section of the BIOS Setup. These fans
can be automatically turned off after the system enters
S3, S4 and S5 sleeping states.
S/PDIF OUT Connector : SPDIF_OUT
The connector is used for S/PDIF output.
CPU_FAN/SYS_FAN
GND
POWER
SENSE
CONTROL
1
GND
TX+
TX-
GND
RX-
RX+
GND
1
SATA_1/2/3/4
LCLK#
LFRAME#
LRESET#
LAD3
VDD
LAD0
SB3V
NC
GND
LPCPD#
GND
EMPTY
LAD2
NC
LAD1
GND
NC
SERIRQ
CLKRUN#
NC
1 2
19 20
TPM
SPDIF_OUT
+5V
EMPTY
SPDIF_OUT
GND
1
2
3
4
