Foxconn H55MXV LE User Manual

1
5

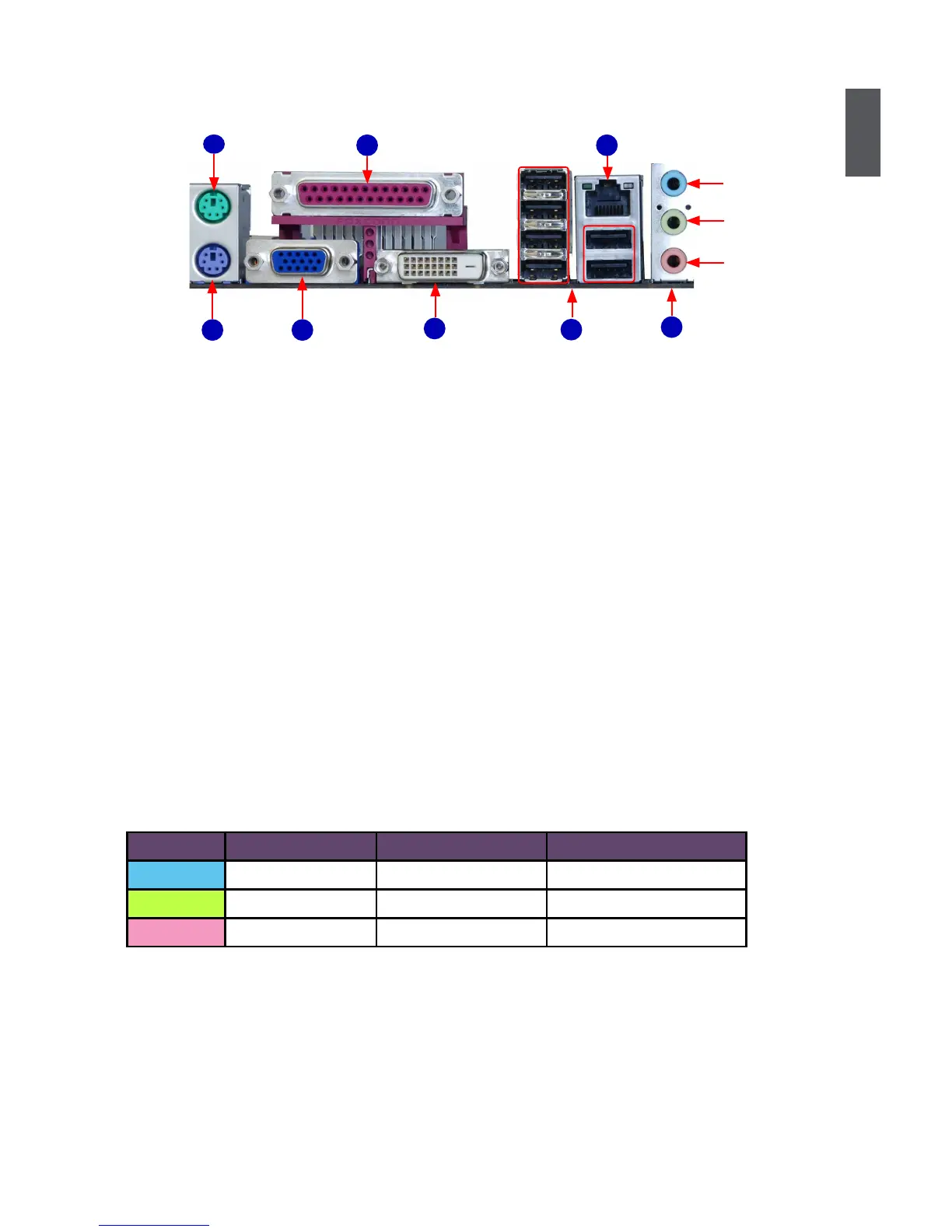

1-3 Back Panel Connectors
1. PS/2 Mouse Port
Use the upper port (green) to connect a PS/2 mouse.
2. PS/2 Keyboard Port
Use the lower port (purple) to connect a PS/2 keyboard.
3. Parallel Port
This connector provides printer port interface.
4. VGA Port
To connect with external display devices, such as monitor or LCD display.
5. DVI-D Port
The DVI-D port supports DVI-D specication. Connect a monitor that supports DVI-D connec-
tion to this port.
6. USB Ports
The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB ash drive and etc.
7. Audio Ports
For the denition of each audio port, please refer to the table below :
* : Please refer to Chapter 4, and install the Realtek audio driver (in CD) to assign the audio
output ports for different applications of 2/4/5.1 channels. The fundamental audio outputs are
depicted in the table above.
USB Ports
LAN PortParallel Port
PS/2 Keyboard Port
PS/2 Mouse Port
7
1
3
Audio Ports
8
VGA Port
4
5
2
6
Line Out
Microphone
Line In
DVI-D Port
Port 2-channel 4-channel 5.1-channel
Blue Line In Rear Speaker Out* Rear Speaker Out*
Green Line Out Front Speaker Out Front Speaker Out
Pink Microphone In Microphone In Center/Subwoofer Out*

Foxconn H55MXV LE Specifications

General

Form Factor	Micro ATX
CPU Socket	LGA 1156
Memory Type	DDR3
Maximum Memory	8 GB
PCIe 2.0 x1 Slots	1
USB Ports (Rear)	4
Chipset	Intel H55
Memory Slots	2
Expansion Slots	1 x PCIe x1
Audio	Realtek ALC662
LAN	Realtek RTL8111DL Gigabit Ethernet
Video Outputs	VGA
USB Ports	8 (4 rear, 4 via headers)
VGA Port	Yes
