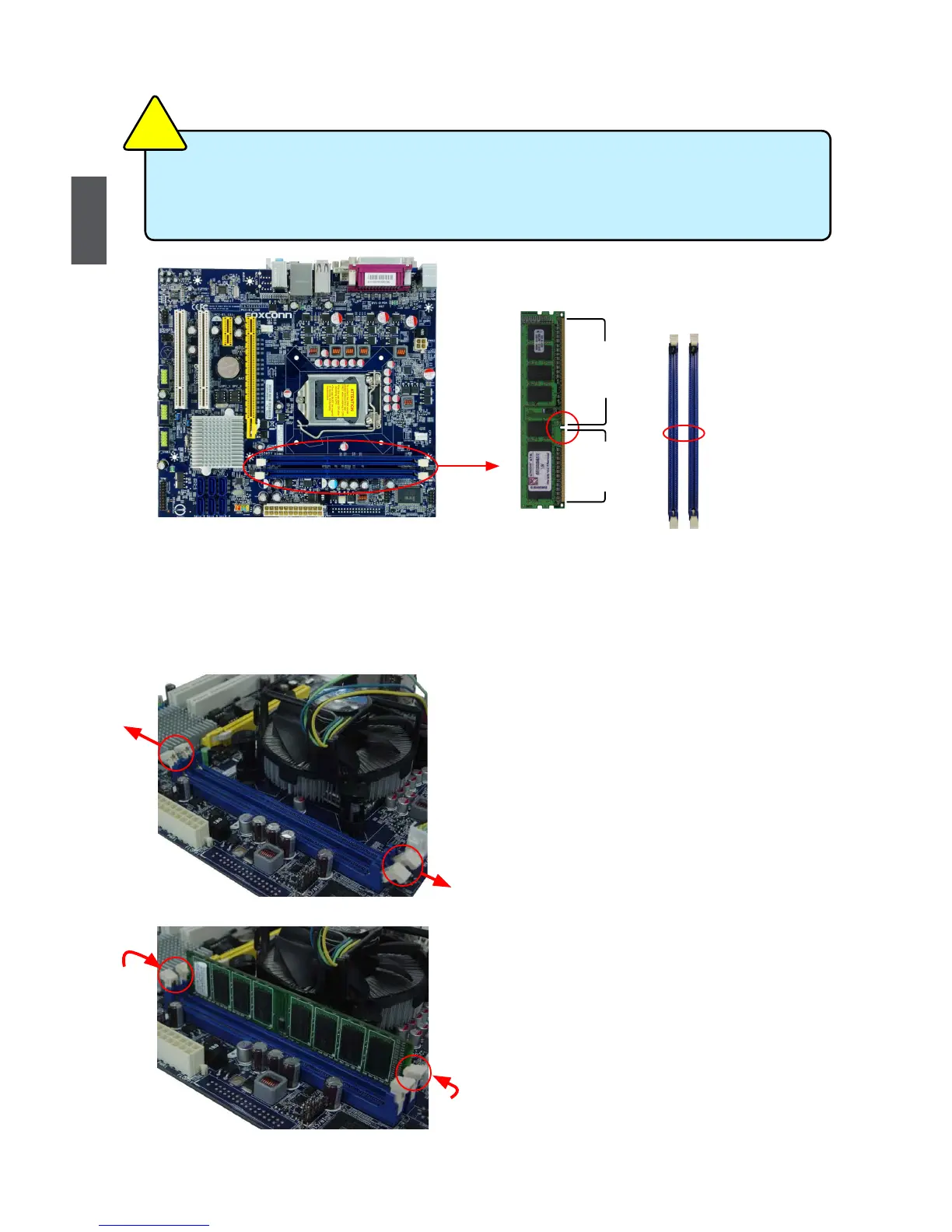

Installing a Memory
If you take a look at front side of memory module, it has asymmetric pin counts on both sides separated
by a notch in the middle, so it can only t in one direction. Follow the steps below to correctly install
your memory modules into the sockets.
Step 1:
Spread the clips at both ends of the memory socket.
Place the memory module onto the socket, then put
your ngers on top edge of the module, and push
it down rmly and seat it vertically into the memory
socket.
Step 2:
The clips at both ends of the socket will snap into place
when the memory module is securely inserted.
Notch
■ Before installing a memory module, make sure to turn off the computer and unplug the
power cord from the power outlet to prevent damage to the memory module. Be sure to
install DDR3 DIMMs on this motherboard.
C
A
U
T
I
O
N
!
96-Pin
144-Pin

Foxconn H55MXV LE Specifications

General

Form Factor	Micro ATX
CPU Socket	LGA 1156
Memory Type	DDR3
Maximum Memory	8 GB
PCIe 2.0 x1 Slots	1
USB Ports (Rear)	4
Chipset	Intel H55
Memory Slots	2
Expansion Slots	1 x PCIe x1
Audio	Realtek ALC662
LAN	Realtek RTL8111DL Gigabit Ethernet
Video Outputs	VGA
USB Ports	8 (4 rear, 4 via headers)
VGA Port	Yes
