Foxconn H61AP Series - Motherboard Layout Diagram

PRODUCT INTRODUCTION
4

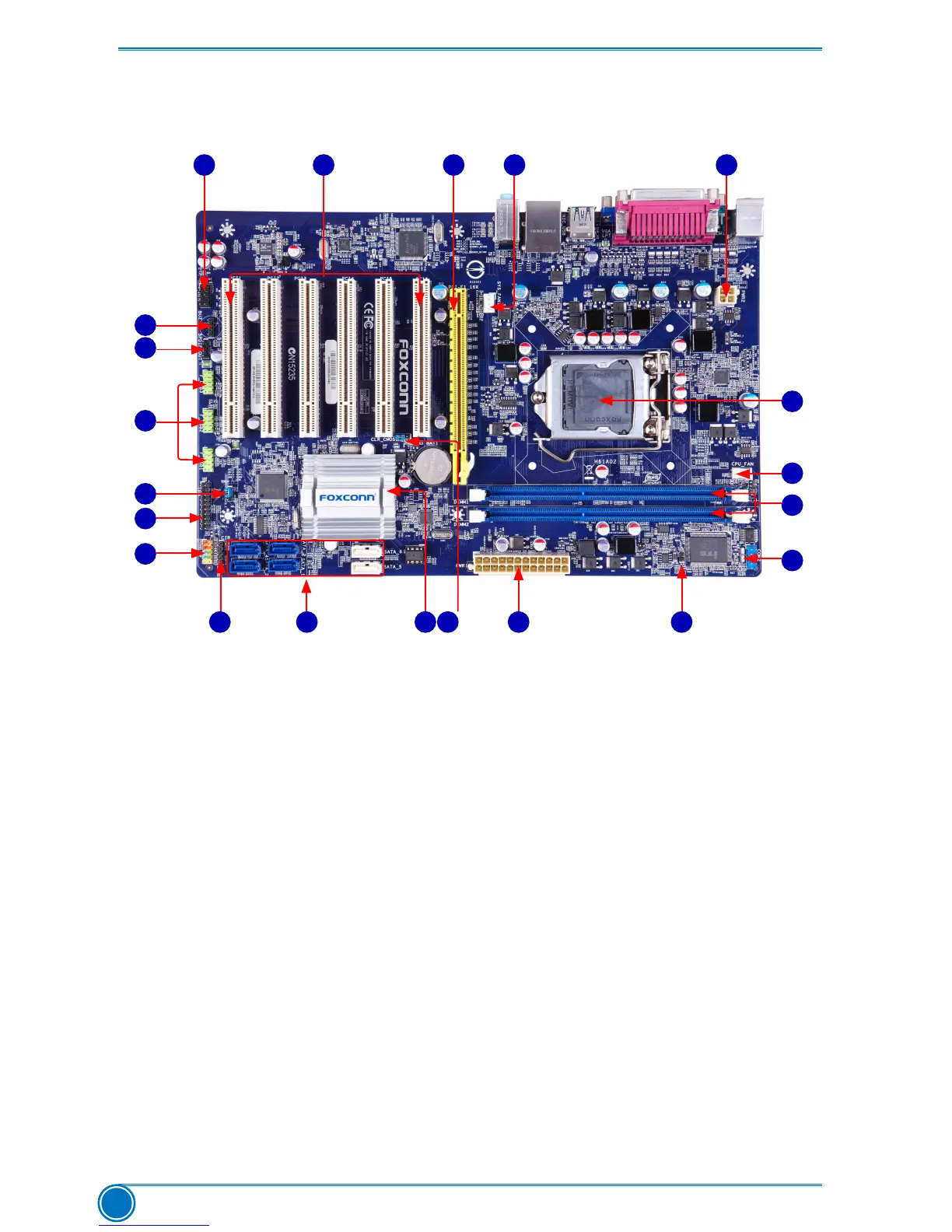

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. 4-pin ATX 12V Power Connector
2. SYS_FAN1 Header
3. PCI Express x16 Slot
4. PCI Slots
5. Front Audio Header
6. Speaker Header
7. SPDIF_OUT Header
8. Front USB Header
9. PCH_ME_ENABLE Jumper
10. TPM Header
11. Front Panel Header
12. CIR Header
13. SATA Connectors
14. Chipset: Intel
®
H61
15. Clear CMOS Jumper
16. 24-pin ATX Power Connector
17. INTR Header
18. COM2 Header
19. DDR3 DIMM Slots
20. CPU_FAN Header
21. LGA1155 CPU Socket
9
11
10
8
6
7
13 15 161412 17
18
21
19
1
2
5 34
20
