Foxconn H61AP Series User Manual

HARDWARE INSTALLATION
15

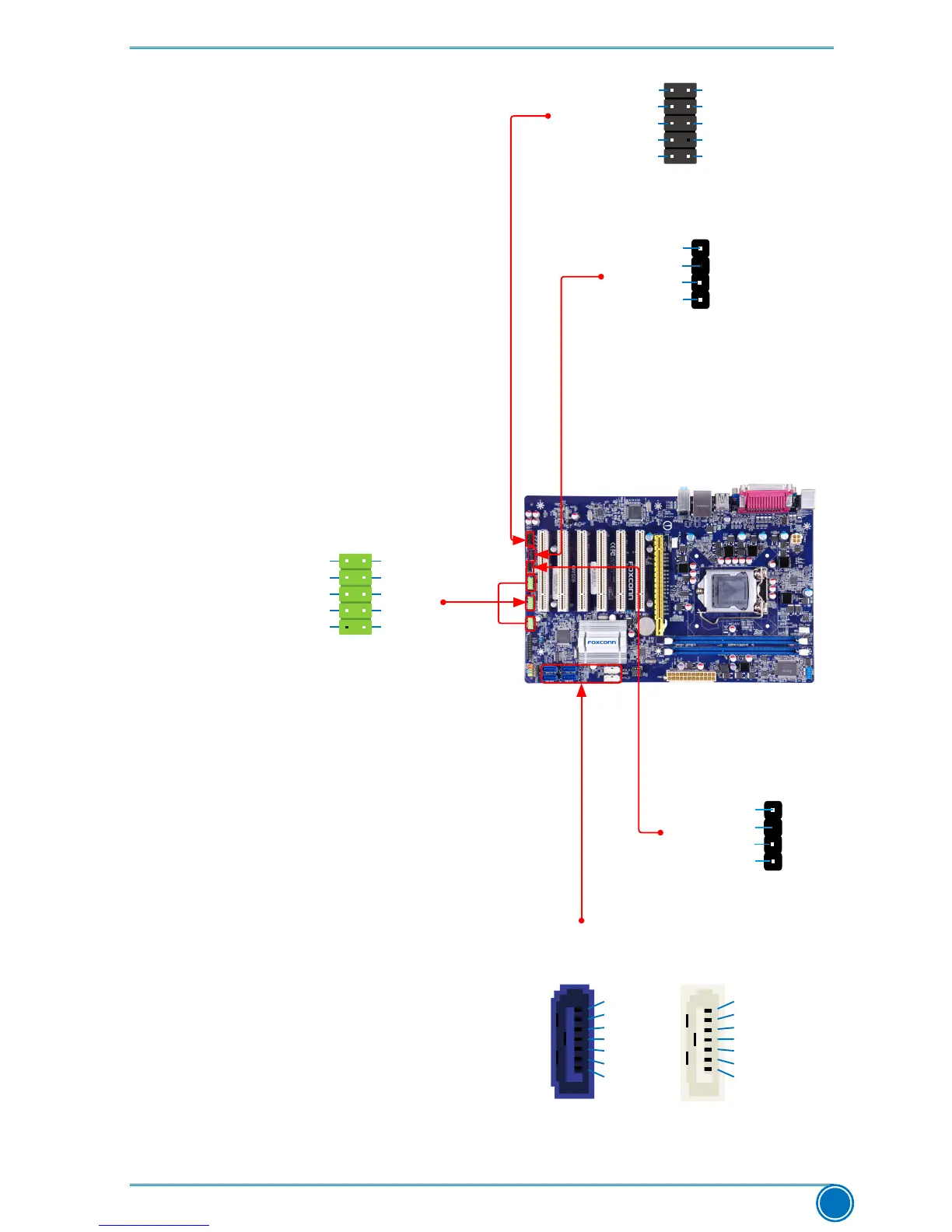

Audio Header : F_AUDIO
The audio connector supports HD Audio standard.
It provides the Front Audio output choice.
Speaker Header : SPEAKER
The speaker connector is used to connect speaker
of the chassis.
USB Headers : F_USB1/2/3
In addition to the USB ports on the rear panel,
this product also provides 10-pin USB head-
ers on its motherboard. By connecting through
USB cables with them, user can quickly expand
another USB ports on the front panel.
SPDIF OUT Header : SPDIF_OUT
The connector is used for SPDIF output.
Serial ATA Connectors : SATA_1/2/3/4/5/6
The Serial ATA connector is used to connect with
SATA Hard Disk or CD devices which support this
feature. The SATA_1/2/3/4 allows up to 3GB/s
data transfer rate, the SATA_5/6 support SATA
3.0 specication, and allows up to 6GB/s data
transfer rate.
A_MIC2_L
A_MIC2_R
A_LINE2_L
SENSE_SEND
SENSE1_RETURN
PRESENCEJ
EMPTY
SENSE2_RETURN
AUD_GND
1
2
109
F_AUDIO
A_LINE2_R
NC
PWR
EMPTY
SPEAKER
SPKJ
1
2
3
4
GND
TX+
TX-
GND
RX-
RX+
GND
1
SATA_1/2/3/4
GND
TX+
TX-
GND
RX-
RX+
GND
1
SATA_5/6
+5V
EMPTY
SPDIF_OUT
GND
SPDIF_OUT
1
2
3
4
VCC
D-
EMPTY
D+
GND
D+
D-
GND
GND
VCC
1 2
109
F_USB1/2/3
