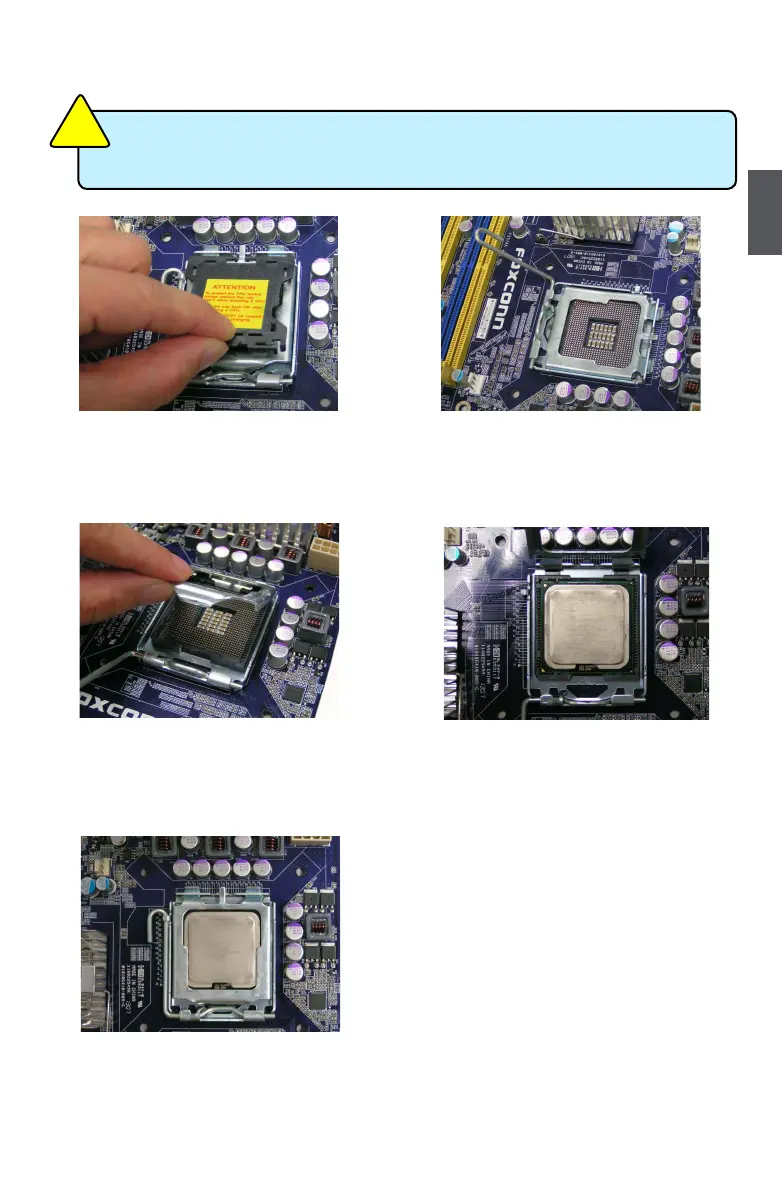

B. Follow the steps to install the CPU onto the CPU socket.
2. Release the CPU socket lever.1. Remove protective socket cover.
3. Lift the metal cover on the CPU
socket.
5. When CPU is properly seated,
replace the metal cover and push
the CPU socket lever back to its
locked position.
4. Check pin one marking (triangle)
with the pin one corner of the CPU
socket, align the CPU notches with
the socket alignment keys and
gently put the CPU onto the socket.
Before installing the CPU, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the CPU.
C
A
U
T
I
O
N
!
