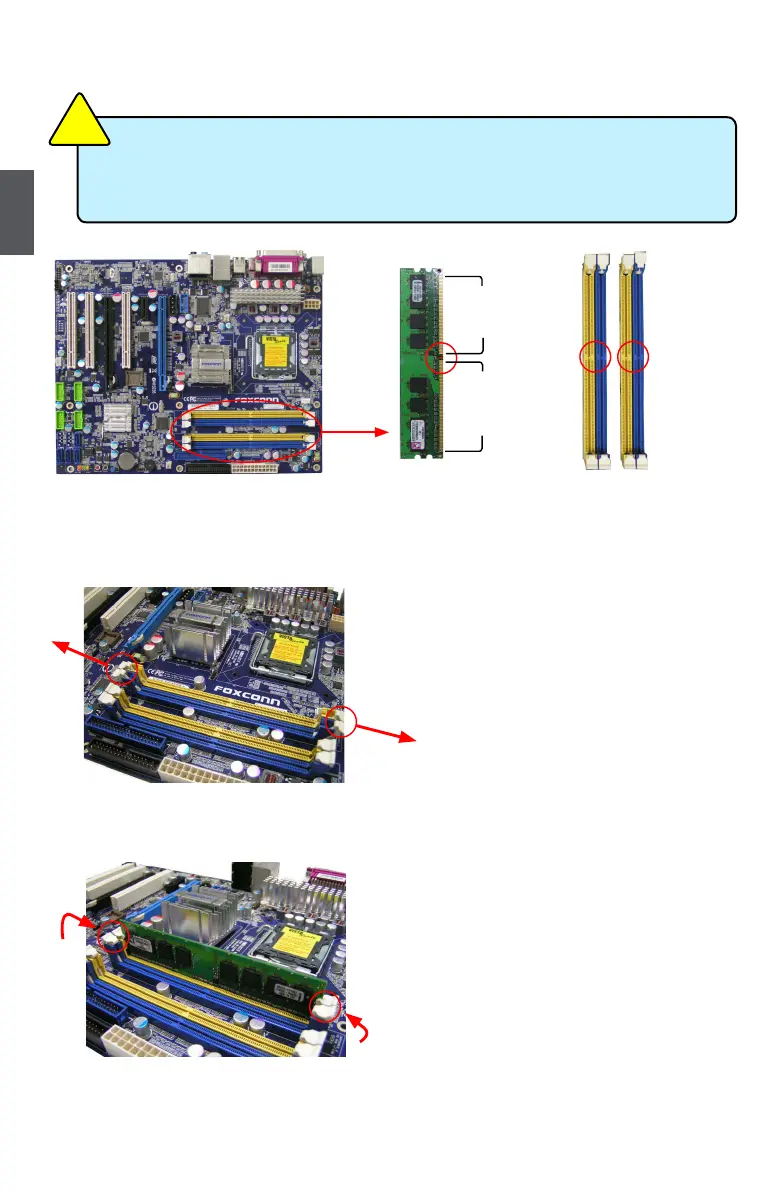

Installing a Memory
If you take a look at front side of memory module, it has asymmetric pin counts on both sides
separated by a notch in the middle, so it can only t in one direction. Follow the steps below to
correctly install your memory modules into the sockets.
Step 1:
Spread the clips at both ends of the memory
socket. Place the memory module onto the socket,
then put your ngers on top edge of the module,
and push it down rmly and seat it vertically into the
memory socket.
Step 2:
The clips at both ends of the socket will snap
into place when the memory module is securely
inserted.
Notch
112-Pin128-Pin
Before installing a memory module, make sure to turn off the computer and unplug the
power cord from the power outlet to prevent damage to the memory module. Be sure
to install DDR2 DIMMs on this motherboard.
C
A
U
T
I
O
N
!
