Foxconn P55MX Series User Manual

1
4

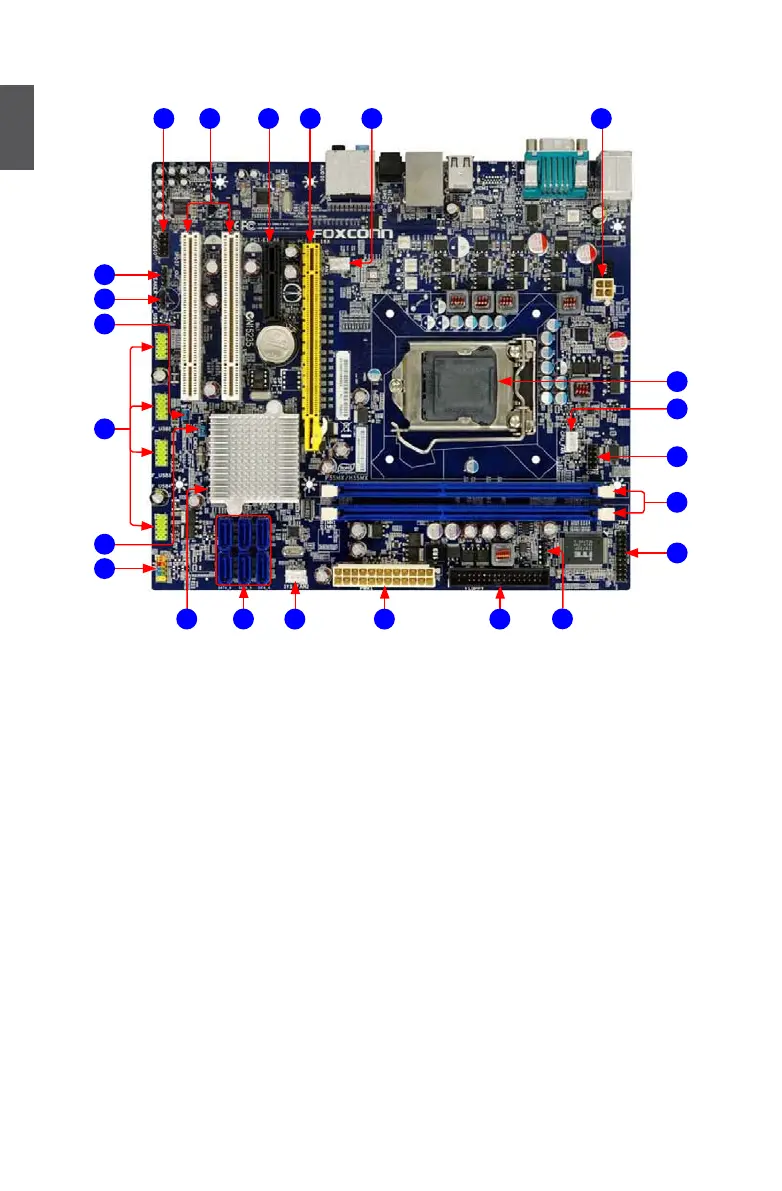

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. 4-pin ATX 12V Power Connector
2. SYS_FAN1 Header
3. PCI Express x16 Slot
4. PCI Express x4 Slot
5. PCI Slots
6. Front Audio Connector
7. S/PDIF Out Connector
8. Speaker Connector
9. MFG Jumper
10. Front USB Connectors
11. Clear CMOS Jumper
12. Front Panel Connector
13 Chipset: Intel
®
P55
14. SATA Connectors
15. SYS_FAN2 Header
16. 24-pin ATX Power Connector
17. Floppy Connector
18. IrDA Connector
19. TPM Connector
20. DDR3 DIMM Slots
21. COM2 Connector
22. CPU_FAN Header
23. LGA1156 CPU Socket
1
15
7
18
21
20
36 24
16
5
8
9
10
11
12
1413
17
19
22
23
