Foxconn P55MX Series User Manual

1
5

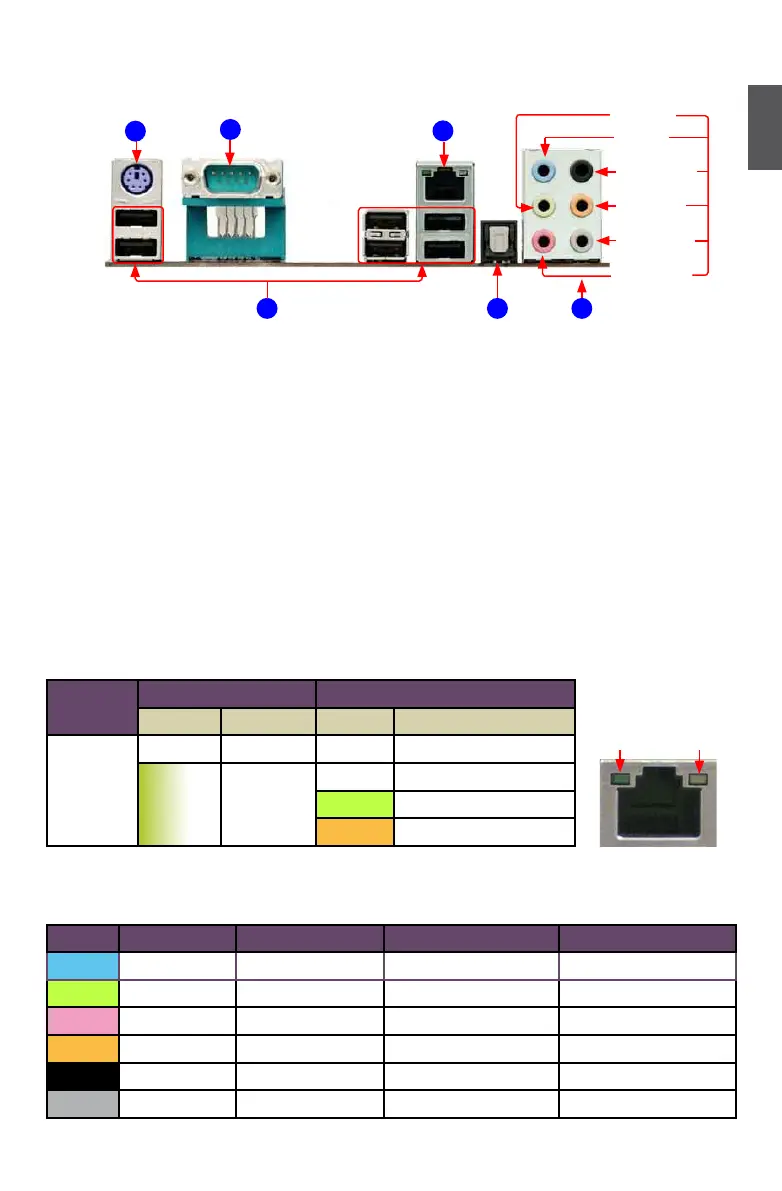

1-3 Back Panel Connectors
1. PS/2 Port
Use the PS/2 port to connect a PS/2 mouse or keyboard.
2. USB Ports
The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB ash drive and etc.
3. Serial Port
This is output of RS232 COM1 port.
4. Optical S/PDIF Out Port
This port provides digital audio out to an external audio system that supports digital optical
audio.
5. RJ-45 LAN Port
The Ethernet LAN port provides Internet connection at up to 10/100/1000Mb/s data rate.
6. Audio Ports
For the denition of each audio port, please refer to the table below :
LAN Type
Left: Active Right: Link
Status Description Status Description
1000M
Off No Link Off No Link
Green
Blinking
Data
Activity
Off 10Mb/s Connection
Green 100Mb/s Connection
Orange 1000Mb/s Connection
Active
LED
Link
LED
Optical S/PDIF Out Port
LAN Port
PS/2 Port
Audio Ports
Line Out
Microphone In
Subwoofer
Rear Speaker
Side Speaker
Line In
3
1
Serial Port
5
6
USB Ports
2
4
Port 2-channel 4-channel 5.1-channel 7.1-channel
Blue Line In Line In Line In Line In
Green Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Microphone In Microphone In Microphone In Microphone In
Orange - - Center/Subwoofer Out Center/Subwoofer Out
Black - Rear Speaker Out Rear Speaker Out Rear Speaker Out
Grey - - - Side Speaker Out
