Foxconn P55MX Series User Manual

14
2
14

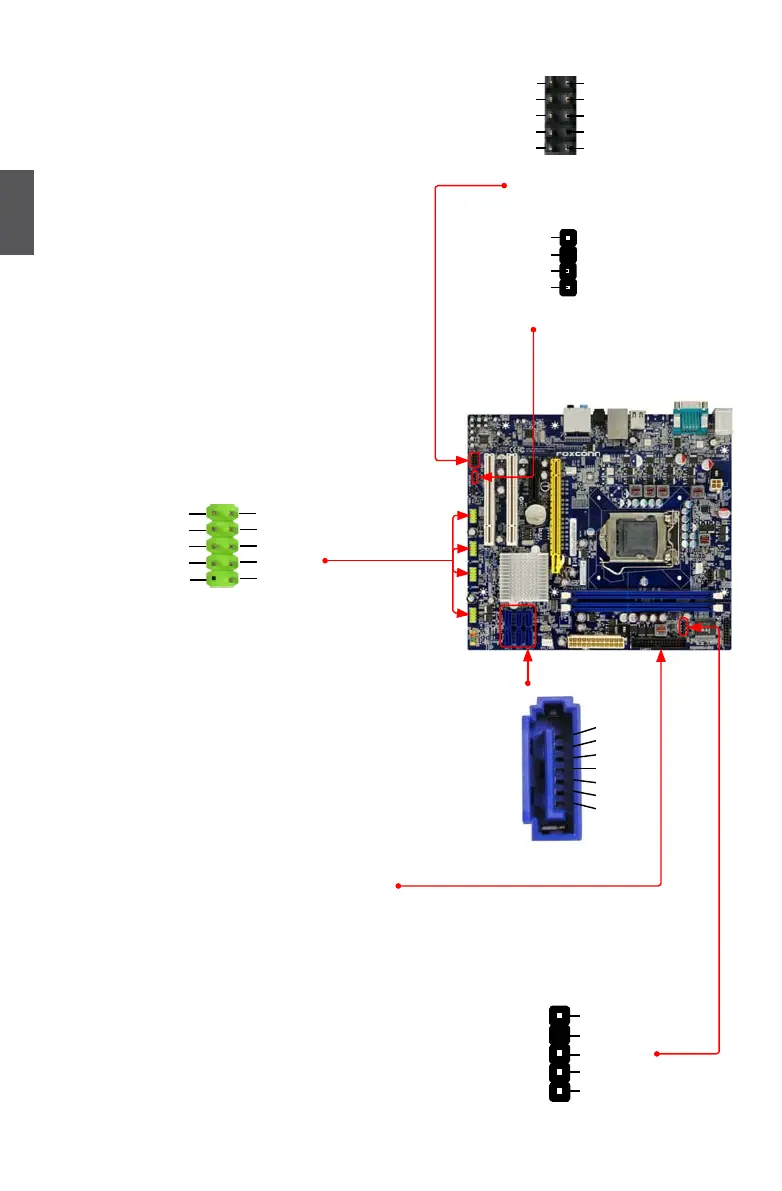

Audio Connector : F_AUDIO
The audio connector supports HD Audio standard. It
provides the Front Audio output choice.
S/PDIF OUT Connector : SPDIF_OUT
The connector is used for S/PDIF output.
USB Connectors : F_USB1_B/2_B/3_B/4_B
In addition to the six USB ports on the rear panel, this
product also provides four 10-pin USB headers on its
motherboard. By connecting through USB cables with
them, user can quickly expand another eight USB ports
on the front panel.
Serial ATA Connectors : SATA_1/2/3/4/5/6
The Serial ATA connector is used to connect with
SATA Hard Disk or CD devices which support this
feature. The current Serial ATA II interface allows up
to 300MB/s data transfer rate.
Floppy Disk Drive Connectors : FLOPPY
This motherboard includes a standard oppy disk
drive(FDD) connector, supporting 360KB, 720KB,
1.2MB, 1.44MB, and 2.88MB FDDs.
IrDA Connector : IR
This connector supports infrared wireless trans-
mitting and receiving device.
1
2
3
4
5
+5V
EMPTY
IRRX
GND
IRTX
IR
GND
TX+
TX-
GND
RX-
RX+
GND
1
SATA_1/2/3/4/5/6
PORT1_L
PORT1_R
PORT2_L
SENSE_SEND
SENSE1_RETURN
PRESENCEJ
EMPTY
SENSE2_RETURN
AUD_GND
1
2
109
F_AUDIO
PORT2_R
NC
GND
VCC
D+
D-
D+
GND
D-
VCC
EMPTY
1
2
10
9
F_USB1_B/2_B/3_B/4_B
+5V
EMPTY
SPDIF_OUT
GND
1
2
3
4
SPDIF_OUT
