6.4 Installation Steps

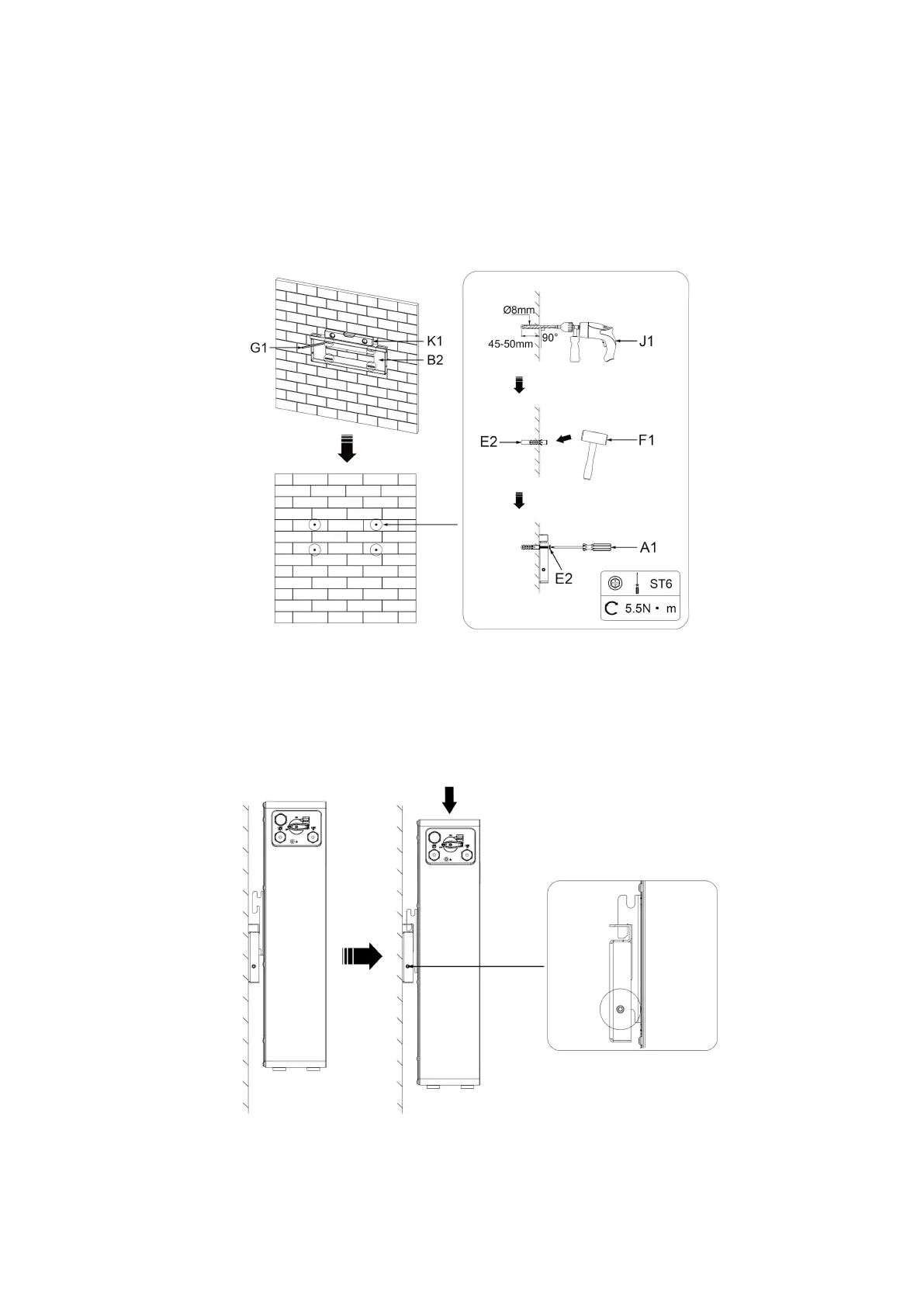

Step 1: The steps for installing the bracket is as follows:
a. Place the bracket against the wall, adjust the hole position with a level (K1) , and mark the positions of
the 4 holes.
b. Remove the bracket, drill the holes with a hammer drill (φ8mm, depth range 45-50mm), and tighten the
expansion bolts to ensure that the bracket is securely installed.
c. Fix the bracket to the wall with ST6*40 screws (E2) , ensuring that the bracket is installed in a
horizontal position.
Step 2: The steps for installing the battery on the wall is as follows:
a. Align the buckle of the battery bracket with the holes of mounting bracket on the wall, then place the battery
from top to bottom.
b. Observe the left and right sides of the bracket to ensure that the holes of the battery bracket and mounting
bracket on the wall are aligned.
