FoxESS EP5 - Clearance

6

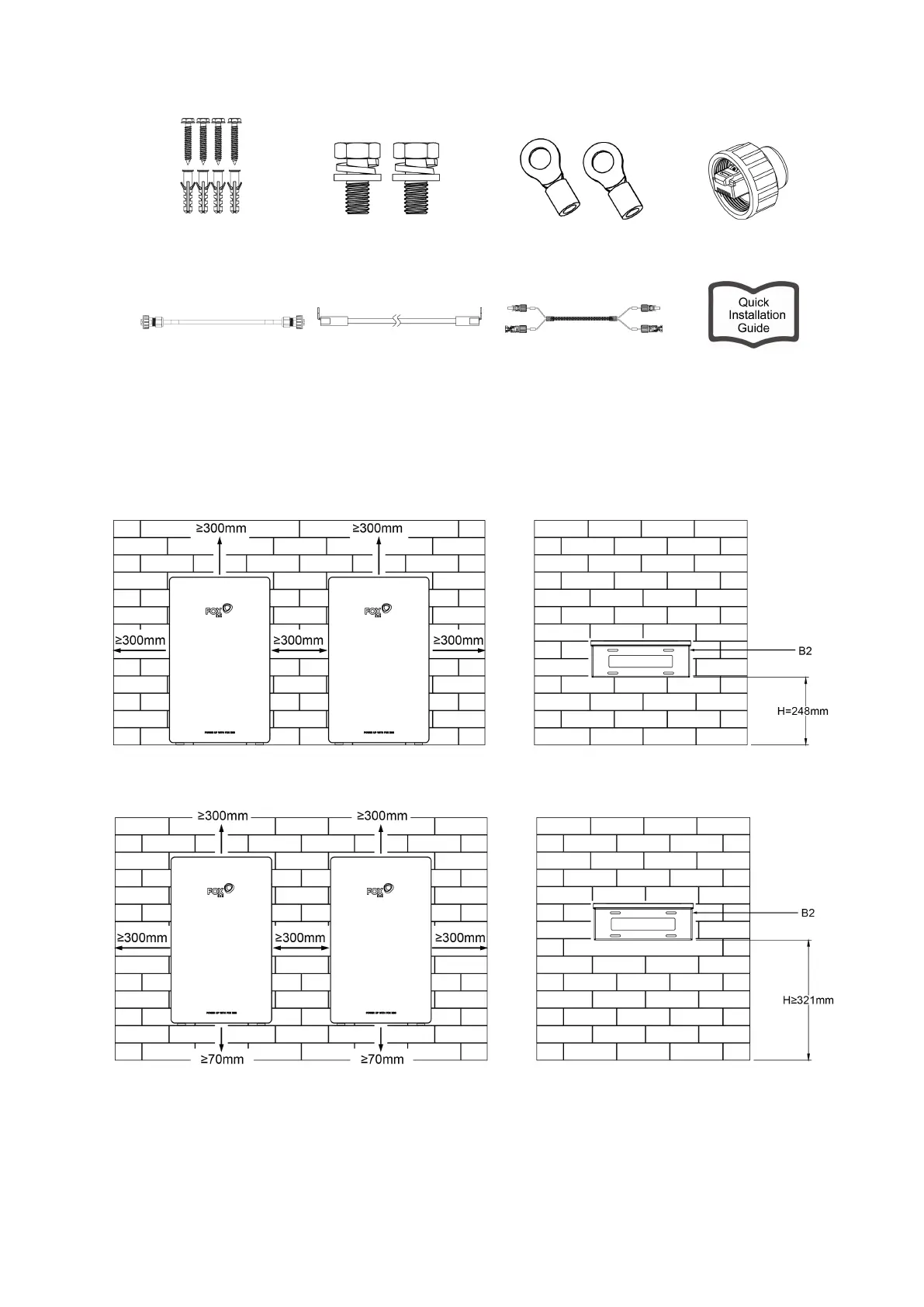

6.2 Clearance
Standing mounting：
Wall mounting：
Make sure to leave a space of at least 300 mm. A clearance of at least 300 mm must be Ieft around the
battery pack for proper cooling.
D8 Plastic Expansion M5*10 Screwsx2(F2) OT Terminal×2(G2) Parallel Plug×2(H2)
Tube×4(E2)
PCS Communication Ground Cable (3m)×1(J2) Power Cable (3m)×1(K2) Quick Installation
Cable (3m)×1(I2) Guide×1(L2)
