• WiFi/LAN/GPRS (optional)
The inverter has an interface for WiFi/LAN/GPRS devices that allow this device to collect information from inverter;
including inverter working status, performance etc., and update that information to monitoring platform (the
WiFi/LAN/GPRS device is available to purchase from your local supplier).
Connection steps:
1. For GPRS device: Please insert the SIM Card (please refer to the GPRS product manual for more details).
2. For LAN device: Please complete the wiring between router and LAN device (please refer to the LAN product
manual for more details).
3. Plug the WiFi/LAN/GPRS device into “WiFi/GPRS” port at the bottom of the inverter.
4. For WiFi device: Connect the WiFi with the local router, and complete the WiFi configuration (please refer to
the WiFi product manual for more details).
5. Set-up the site account on the monitoring platform (please refer to the monitoring user manual for more
details).

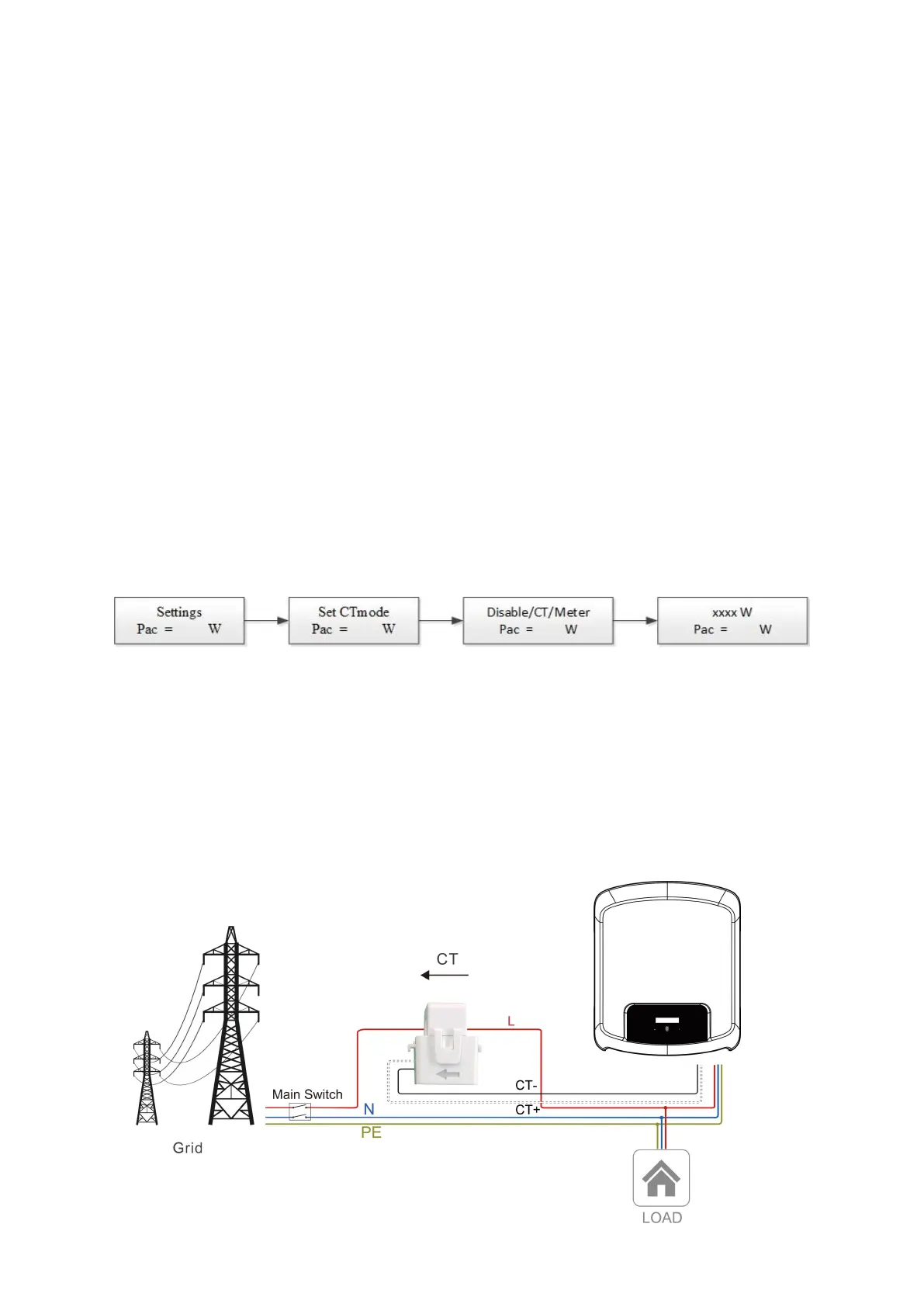

• Hard Export limitation setting:
Short press the touch key to switch display or make the number+1. Long press the touch key to confirm your
setting. There are three options in Set CTmode: Disable/CT/Meter, Please select according to the actual situation
and then it will ask you to set the parameters(Long press for confirmation and switching to next digit, short press
for changing the value).
Note: CT or Smart meter is required for hard export limitation function and the soft export limit function is
controlled by platform.(Please refer to advanced configuration)
• CT (optional) (EM-EICT-120K-T210C or CTSA016)
This inverter has an integrated export management function. To enable this function, a power meter or CT must be
installed. The CT should be clamped on the main live line of the grid side. The arrow on the CT should be pointing
towards the grid. The white cable connects to CT+, and the black cable connects to CT-.
