18

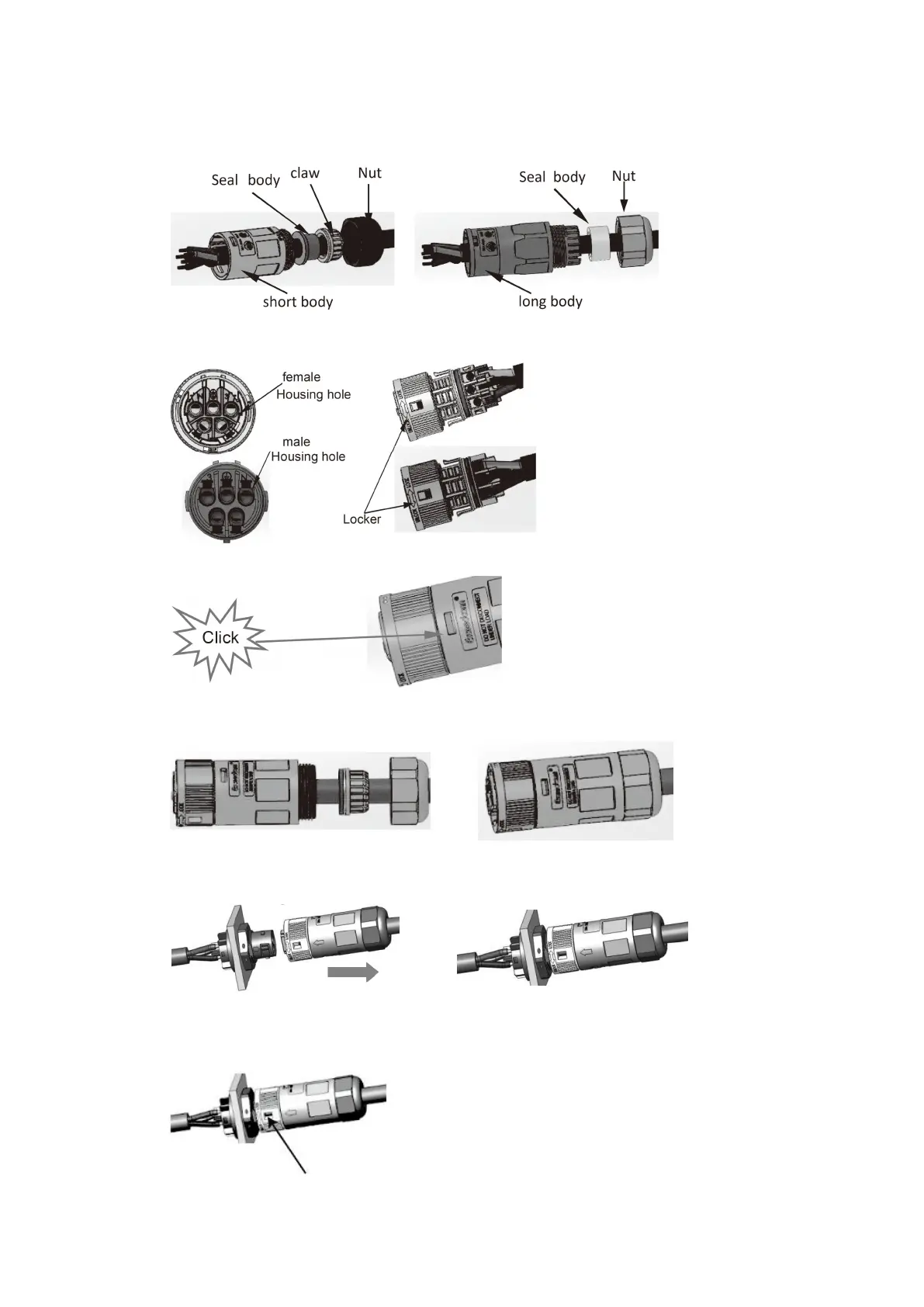

A. EPS Wiring
• Set the parts on the cable.
• Crimp wires, screw twisting torque 0.8+/-0.1N·m.
• Push Housing into Body.
• Put the sealing body and yarn trapper into the main body, screw the lock nut into the main body, and
the torque is (2.5 + / - 0.5N·m).
• Insert the male end into the female end. For the rotation direction of the lock, please refer to the
LOCK mark on the assembly.
• Remove the EPS connector：Press the bayonet with a small screwdriver or the unlock tool. Rotate
the sleeve referring to the UNLOCK mark on the assembly, then pull it out.
