B. GRID Wiring

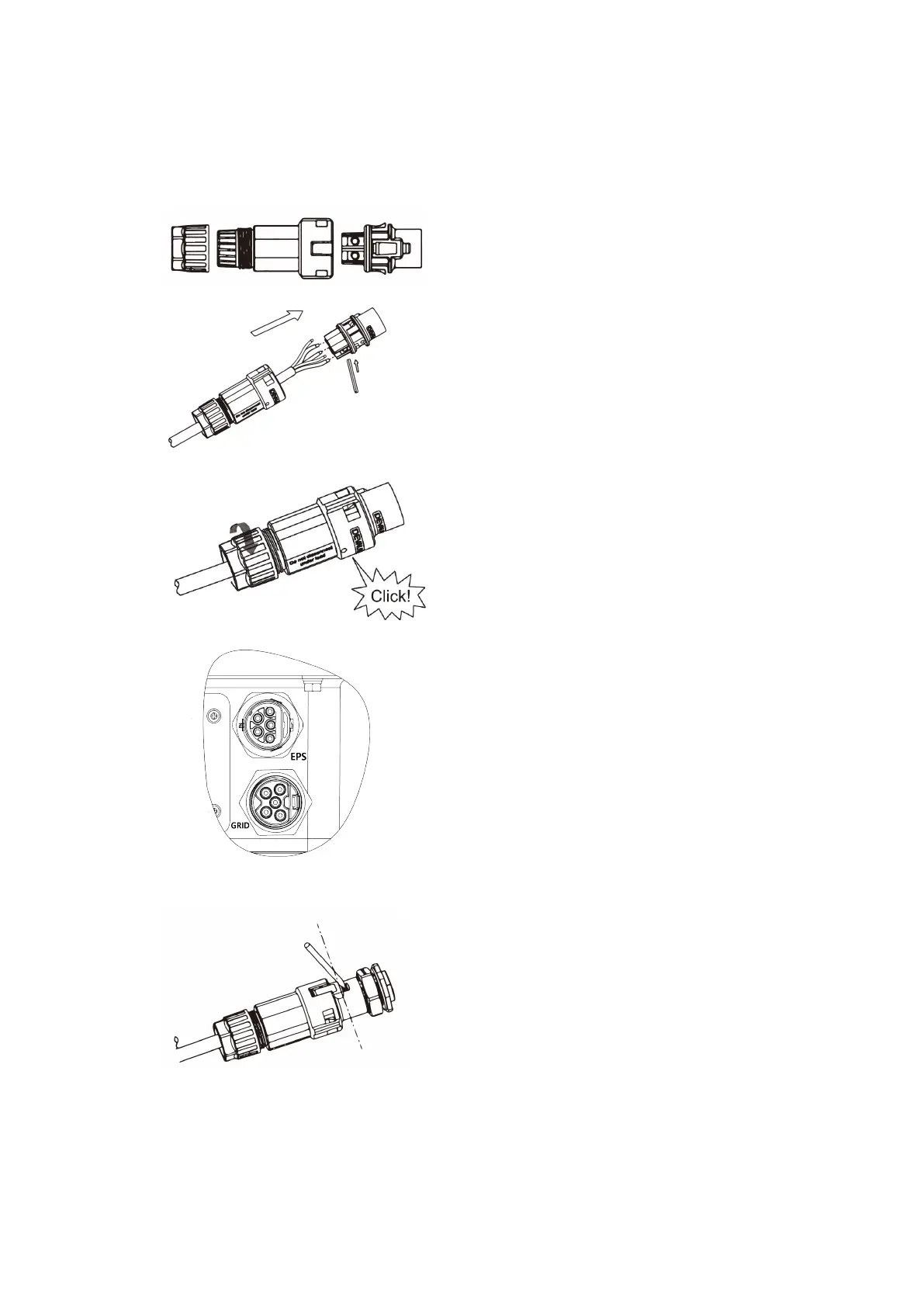

• Separate the ON-GRID plug into three parts as below.
- Hold middle part of the female insert, rotate the back shell to loosen it, detach it from female inset.
- Remove the cable nut (with rubber insert) from the back shell.
• Slide the cable nut and then Install the back shell onto the cable.
• Push the threaded sleeve into the socket, tighten up the cap on the terminal.
• Push the threaded sleeve to connection terminal until both are locked tightly on the inverter.
• Remove the GRID connector: Press the bayonet out of the slot with a small screwdriver or the
unlock tool and pull it out, or unscrew the threaded sleeve, then pull it out.
