5. Product Features
5.1 Battery System Features
The batteries have been fitted with multiple protection systems to ensure the safe operation of the system.
Some of the protection system includes:
· Inverter interface protection: Over voltage, over current, external short circuit, reverse polarity,
ground fault, over temp, in rush current.
· Battery Protection: Internal short circuit, over voltage, over current, over temp, under voltage.
The battery system contains the following Interface to allow it to connect and operate efficiently.

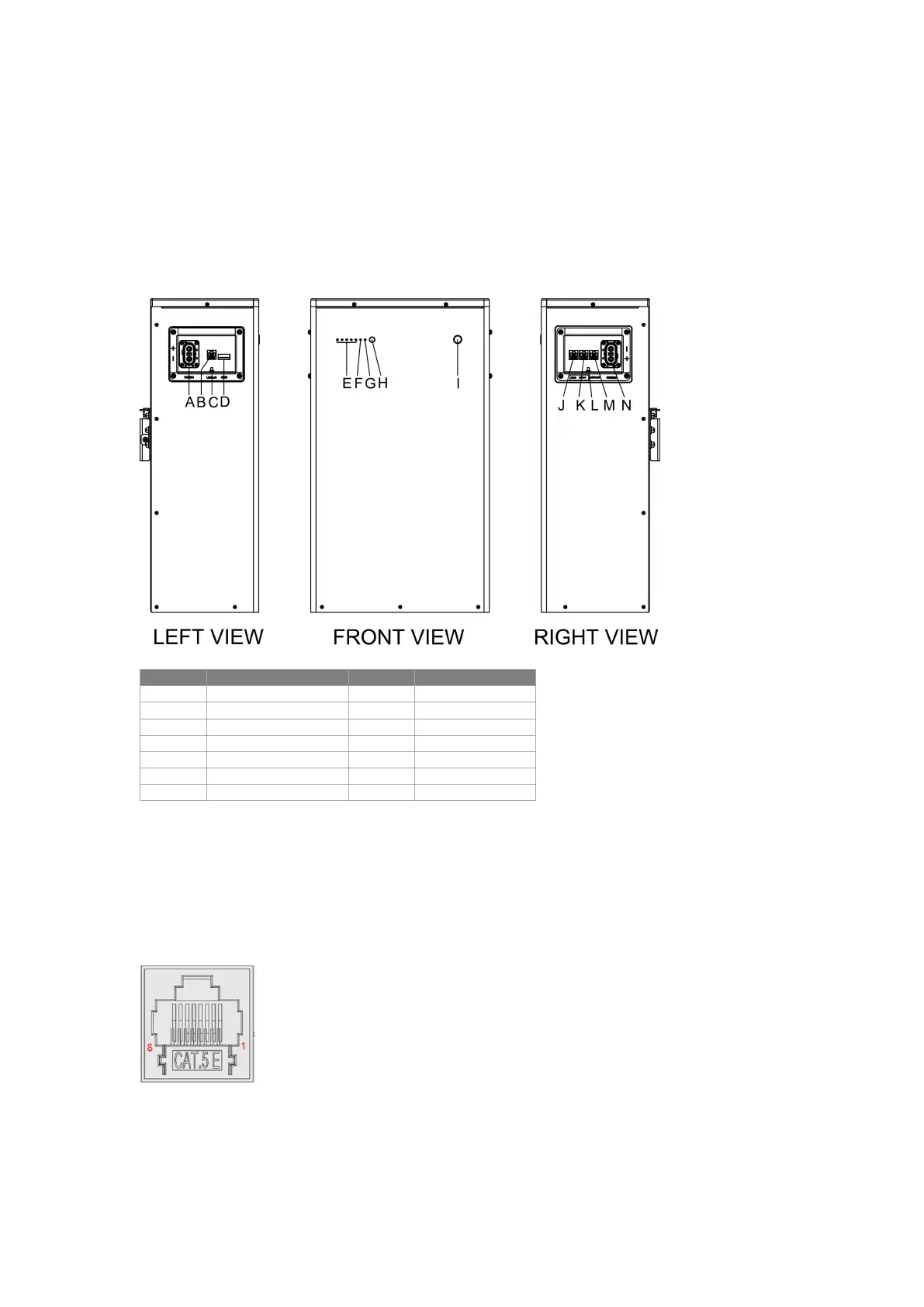

Battery interface:
Object
Description
Object
Description
A
POWER-1
H
Start button
B
LinkPort1
I
Power switch
C
Ground screw
J
CAN
D
Add switch
K
RS485/CAN
E
SOC LED
L
Ground screw
F
Alarm LED
M
LinkPort0
G
Running LED
N
POWER-2
Communication parallel interface (Link Port0, Link Port1, RS485) and communication interface to
inverter (CAN/RS485)
LV5200 has two 485 communication units in series operation, one for master control and one for slave
control.
Network interface description: Link Port0 is connected to the upper battery module, Link Port1 is
connected to the lower battery module. CAN / RS485 is the communication interface to the inverter.
The interface is defined as follows:
