Foxpro X1 - Operating Manual; TX433 Transmitter Overview; Whats Included; X1 Requirements

6
1-2 TX433 Transmitter Overview

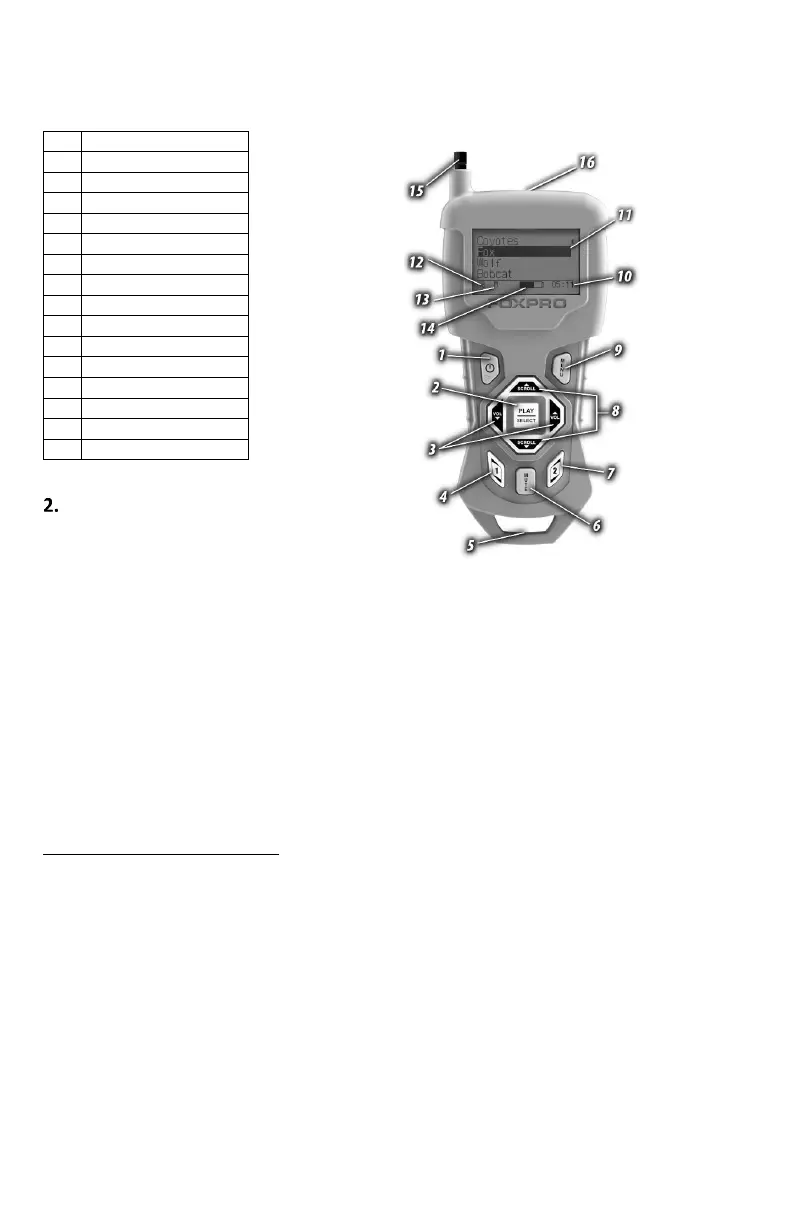

The following graphic highlights the functions and details of the Patriot TX433 transmitter:
1
Power on/off
2
Play/select
3
Volume up/down
4
User 1
5
Lanyard loop
6
Mute
7
User 2
8
Scroll up/down
9
Menu/back
10
Elapsed timer
11
Sounds/categories
12
Volume level
13
Mute status indicator
14
Battery indicator
15
Telescopic antenna
16
Sound upload jack
Operating Manual
The Operating Manual explains how to use
the X1 Digital Game Call. We strongly suggest
reading the manual in its entirety to fully
understand all of the features and get the
most of your new product.
2-1 What’s Included
A. X1 Digital Game Call
B. TX433 Transmitter
C. 3.5mm Male Stereo to Stereo Sound Upload Cable
D. 11.1V Lithium Ion Battery Pack/Charger Kit
2-2 X1 Requirements
The X1 ships from the factory with an 11.1V Lithium Ion Battery Pack/Charger Kit. The battery pack will
need to be charged fully before use in order to get the best performance.
Installing the Battery Pack in the X1
1. Remove the battery compartment cover on the back of the X1. You may need a flat-head screw
driver to remove the thumb screw.
2. Locate the power wire that is inside the battery compartment. It will have a white, plastic
connector on the end.
3. Connect the battery pack to the plastic connector and place the battery pack into the X1.
4. Reinstall the battery cover.
5. To verify that you have power: Flip the power switch to the “on” (UP) position. The pilot LED will
illuminate green, indicating that the X1 is powered on. If the LED does not illuminate, verify that
your battery pack is charged. The LED may flicker for a period of time before glowing solid when
the X1 is initially powered on. This is normal. If the LED begins blinking during operation, it
indicates the battery pack is low and needs recharged.
