Foxwell NT415 - 5 Obdii;Eobd Operations

22
NT415 EPB Service Tool Manual_English_V1.01

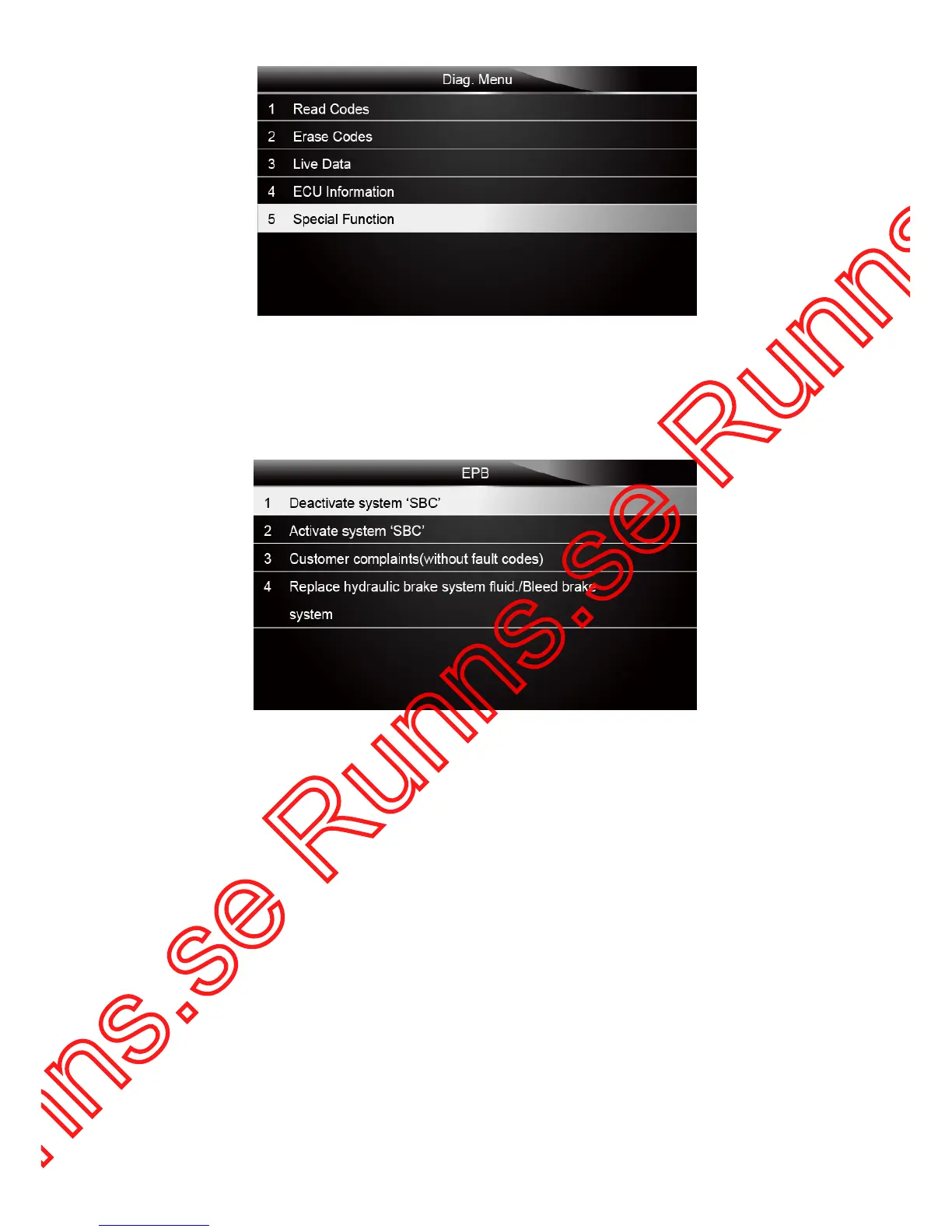

Figure 4-22 Sample Function Menu Screen
2. A group selection screen, test selection screen, several step-by-step instruction screens may
appear. Select the special function you want to perform from the menu and press the
ENTER
key. Read and follow all on-screen instructions carefully. If necessary, use the function keys to
perform commands or answer any questions. If more than 3 function keys displays, use the left
and right arrow keys to select a command and press the
ENTER key to confirm.
Figure 4-23 Sample Special function Screen
3. When completed, press the BACK key to return to previous screens.
5 OBDII/EOBD Operations
OBD-II/EOBD menu lets you access all OBD service modes. According to ISO 9141-2, ISO
14230-4, and SAE J1850 standards, the OBD application is divided into several sub programs,
called ‘Service $xx’. Below is a list of OBD diagnostic services:
● Service $01 - request current powertrain diagnostic data
● Service $02 - request powertrain freeze frame data
● Service $03 - request emission-related diagnostic trouble codes
● Service $04 - clear/reset emission-related diagnostic information
● Service $05 - request oxygen sensor monitoring test results
● Service $06 - request on-board monitoring test results for specific monitored systems
● Service $07 - request emission-related diagnostic trouble codes detected during current or
last completed driving cycle
● Service $08 - request control of on-board system, test or component
● Service $09 - request Vehicle Information
