N67 MNA/MSA - N67 MNT/MST

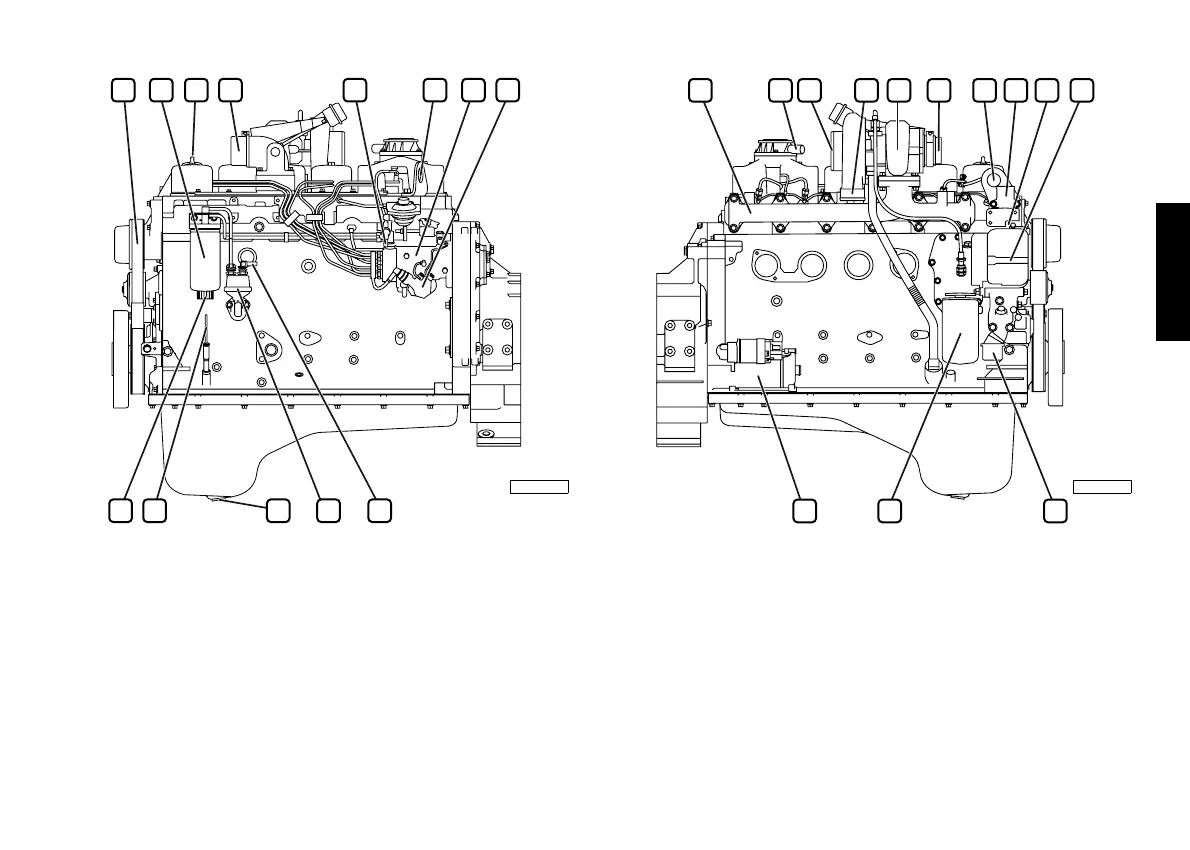

1. Auxiliary member drive belt - 2. Fuel filter - 3. Oil filler cap -
4. Engine intake manifold - 5. Fuel outlet connector to tank - 6. Lifting
U-bolt - 7. Injection pump - 8. Cold injection timing variator - 9. Fuel
inlet manifold from tank - 10. Fuel supply pump - 11. Oil drainage
plug - 12. Oil dipstick - 13. Fuel filter condensation drainage plug.
N67 MNA/MSA - N67 MNT/MST
1. Exhaust manifold - 2. Oil vapour bleeder - 3. Turbocharger air inlet -
4. Turbocharging air outlet (*) - 5. Turbocharger (*) - 6. Turbocharger
exhaust outlet (*) - 7. Lifting U-bolt - 8. Engine coolant outlet -
9. Location of thermostatic valve - 10. Alternator - 11. Engine coolant
inlet - 12. Lubricant oil filter - 13. Electrical starter motor.
(*) Only for versions MNT/MST
11 10 91213
1 2 3 4 5 6 7 8
05_597_N
111213
1 2 3 4 5 6 7 9 108
05_598_N
