N45 MNA - N45 MSA

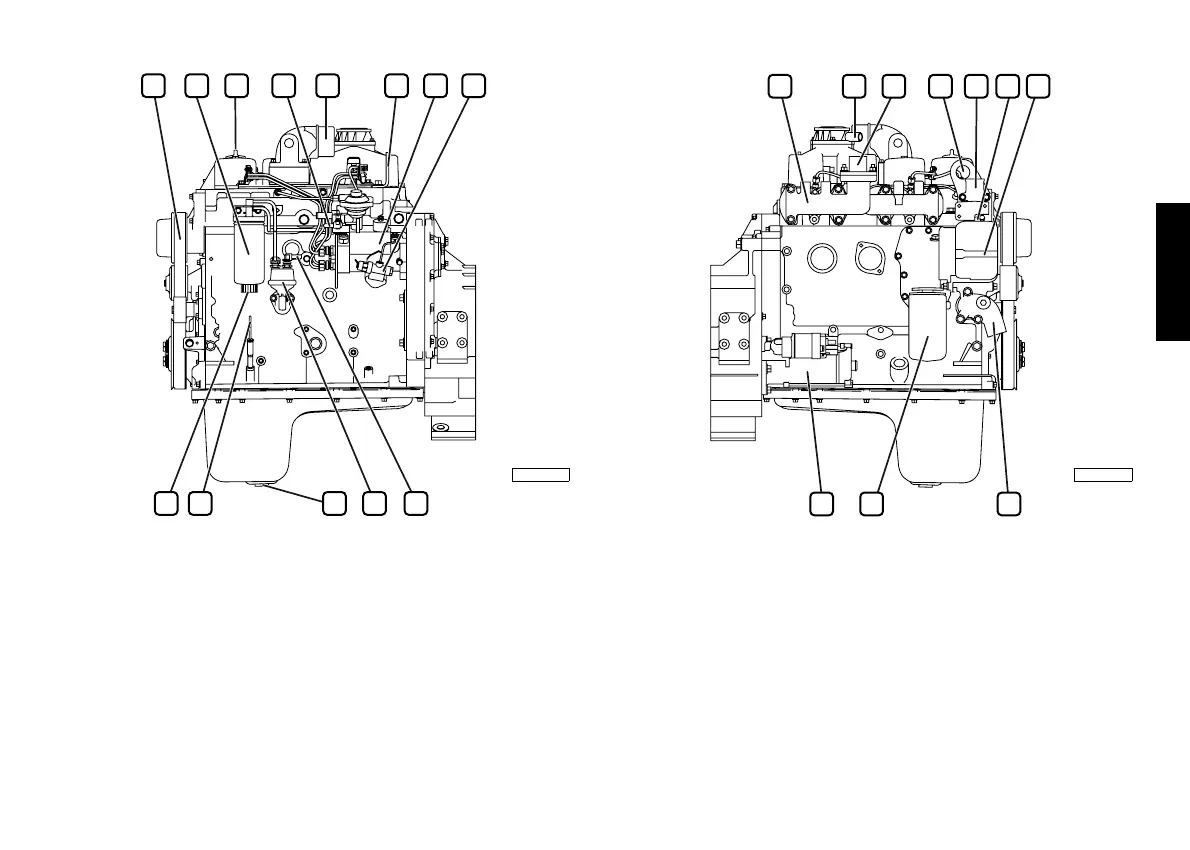

1. Auxiliary member drive belt - 2. Fuel filter - 3. Oil filler cap - 4. Fuel
outlet connector to tank - 5. Engine air inlet - 6. Lifting U-bolt -
7. Injection pump - 8. Cold injection timing variator - 9. Fuel inlet
manifold from tank - 10. Fuel supply pump - 11. Oil drainage plug -
12. Oil dipstick - 13. Fuel filter condensation drainage plug.
N45 MNA - N45 MSA
1. Exhaust manifold - 2. Oil vapour bleeder - 3. Exhaust outlet -
4. Lifting U-bolt - 5. Engine coolant outlet - 6. Location of
thermostatic valve - 7. Alternator - 8. Engine coolant inlet -
9. Lubricant oil filter - 10. Electrical starter motor.
